OMRON Small Proximity Sensor E2E Data Sheet
Summary
This comprehensive guide details OMRON’s lineup of ultra-small, high-performance proximity sensors for industrial automation applications. Ideal for engineers and control system designers, these sensors feature high-speed detection up to 5 kHz, stable long-distance sensing, and low power consumption. The manual provides extensive model legends, covering diverse diameters (3mm to 6.5mm), connection types, and pre-wired options, ensuring precise selection for challenging industrial environments.
Page 1 Text Content

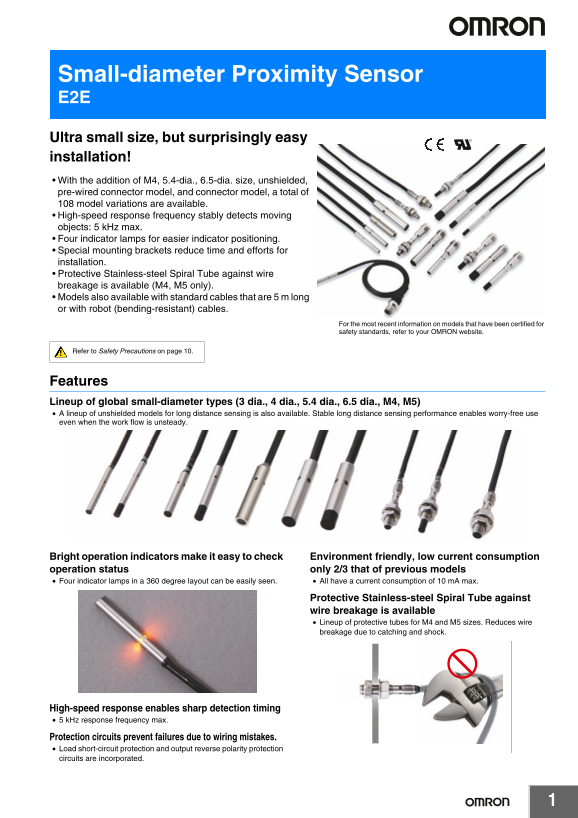

Small-diameter Proximity Sensor E2E Ultra small size, but surprisingly easy installation! With the addition of M4, 5.4-dia., 6.5-dia. size, unshielded, pre-wired connector model, and connector model, a total of 108 model variations are available. High-speed response frequency stably detects moving objects: 5 k Hz max. Four indicator lamps for easier indicator positioning. Special mounting brackets reduce time and efforts for installation. Protective Stainless-steel Spiral Tube against wire breakage is available (M4, M5 only). Models also available with standard cables that are 5 m long or with robot (bending-resistant) cables.
For the most recent information on models that have been certified for safety standards, refer to your OMRON website.
Refer to Safety Precautions on page 10.
Features Lineup of global small-diameter types (3 dia., 4 dia., 5.4 dia., 6.5 dia., M4, M5) A lineup of unshielded models for long distance sensing is also available. Stable long distance sensing performance enables worry-free use even when the work flow is unsteady.
Bright operation indicators make it easy to check Environment friendly, low current consumption operation status only 2/3 that of previous models Four indicator lamps in a 360 degree layout can be easily seen. All have a current consumption of 10 m A max.
Protective Stainless-steel Spiral Tube against wire breakage is available Lineup of protective tubes for M4 and M5 sizes. Reduces wire breakage due to catching and shock.
High-speed response enables sharp detection timing 5 k Hz response frequency max.
Protection circuits prevent failures due to wiring mistakes. Load short-circuit protection and output reverse polarity protection circuits are incorporated.
