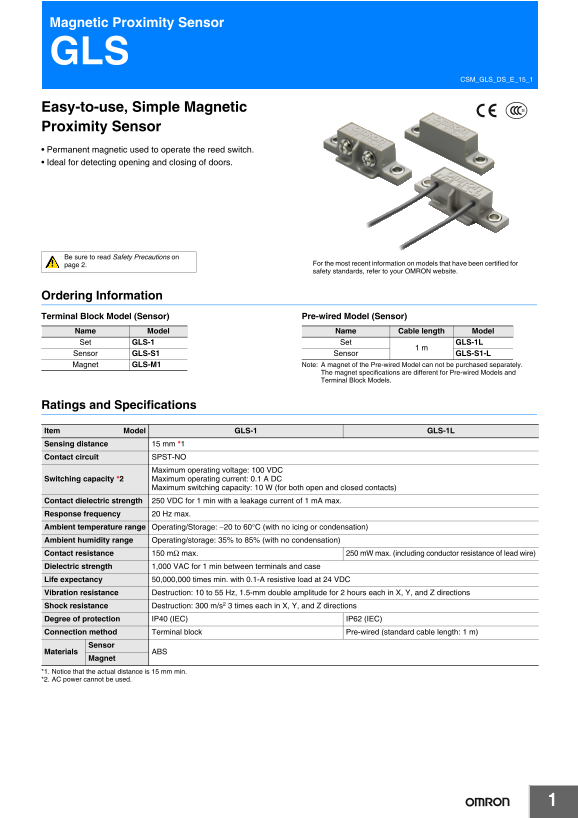

OMRON Sensor Magnetic Type GLS GLS Data Sheet

Magnetic Proximity Sensor

CSM_GLS_DS_E_15_1

Easy-to-use, Simple Magnetic Proximity Sensor Permanent magnetic used to operate the reed switch. Ideal for detecting opening and closing of doors.

Be sure to read Safety Precautions on

page 2. For the most recent information on models that have been certified for safety standards, refer to your OMRON website.

Ordering Information Terminal Block Model (Sensor) Pre-wired Model (Sensor) Name Model Name Cable length Model

Set GLS-1 Set GLS-1L

Sensor GLS-S1 Sensor GLS-S1-L

Magnet GLS-M1 Note: A magnet of the Pre-wired Model can not be purchased separately. The magnet specifications are different for Pre-wired Models and Terminal Block Models.

Ratings and Specifications

Item Model GLS-1 GLS-1L Sensing distance 15 mm *1 Contact circuit SPST-NO

Maximum operating voltage: 100 VDC

Switching capacity *2 Maximum operating current: 0.1 A DC

Maximum switching capacity: 10 W (for both open and closed contacts)

Contact dielectric strength 250 VDC for 1 min with a leakage current of 1 m A max. Response frequency 20 Hz max. Ambient temperature range Operating/Storage: −20 to 60°C (with no icing or condensation) Ambient humidity range Operating/storage: 35% to 85% (with no condensation) Contact resistance 150 mΩ max. 250 m W max. (including conductor resistance of lead wire) Dielectric strength 1,000 VAC for 1 min between terminals and case Life expectancy 50,000,000 times min. with 0.1-A resistive load at 24 VDC Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance Destruction: 300 m/s2 3 times each in X, Y, and Z directions Degree of protection IP40 (IEC) IP62 (IEC) Connection method Terminal block Pre-wired (standard cable length: 1 m)

Sensor

Materials ABS

Magnet

*1. Notice that the actual distance is 15 mm min. *2. AC power cannot be used.
