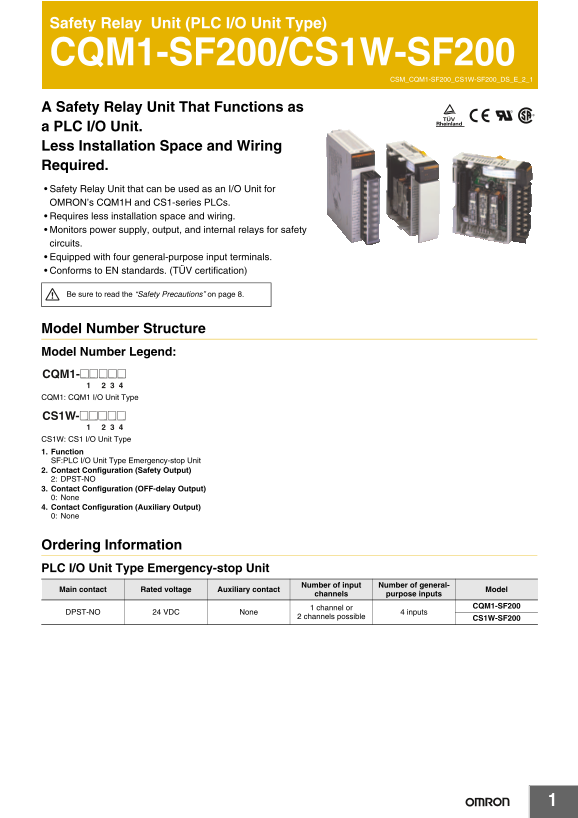

Safety Relay Unit (PLC I/O Unit Type)
CQM1-SF200/CS1W-SF200
CSM_CQM1-SF200_CS1W-SF200_DS_E_2_1
A Safety Relay Unit That Functions as a PLC I/O Unit. Less Installation Space and Wiring Required. Safety Relay Unit that can be used as an I/O Unit for OMRON’s CQM1H and CS1-series PLCs. Requires less installation space and wiring. Monitors power supply, output, and internal relays for safety circuits. Equipped with four general-purpose input terminals. Conforms to EN standards. (TÜV certification)
Be sure to read the “Safety Precautions” on page 8.
Model Number Structure Model Number Legend: CQM1-@@@@@ 1 2 3 4 CQM1: CQM1 I/O Unit Type
CS1W-@@@@@ 1 2 3 4 CS1W: CS1 I/O Unit Type 1. Function SF:PLC I/O Unit Type Emergency-stop Unit 2. Contact Configuration (Safety Output) 2: DPST-NO 3. Contact Configuration (OFF-delay Output) 0: None 4. Contact Configuration (Auxiliary Output) 0: None
Ordering Information PLC I/O Unit Type Emergency-stop Unit
Number of input Number of general-
Main contact Rated voltage Auxiliary contact Model
channels purpose inputs
1 channel or CQM1-SF200
DPST-NO 24 VDC None 4 inputs
channels possible CS1W-SF200
