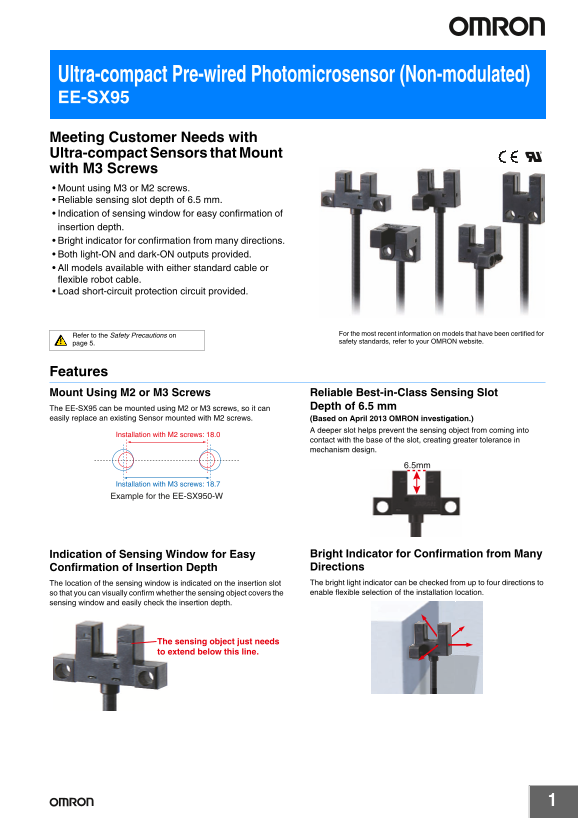

Ultra-compact Pre-wired Photomicrosensor (Non-modulated) EE-SX95
Meeting Customer Needs with Ultra-compact Sensors that Mount with M3 Screws Mount using M3 or M2 screws. Reliable sensing slot depth of 6.5 mm. Indication of sensing window for easy confirmation of insertion depth. Bright indicator for confirmation from many directions. Both light-ON and dark-ON outputs provided. All models available with either standard cable or flexible robot cable. Load short-circuit protection circuit provided.
Refer to the Safety Precautions on For the most recent information on models that have been certified for page 5. safety standards, refer to your OMRON website.
Features Mount Using M2 or M3 Screws Reliable Best-in-Class Sensing Slot
The EE-SX95 can be mounted using M2 or M3 screws, so it can Depth of 6.5 mm
easily replace an existing Sensor mounted with M2 screws. (Based on April 2013 OMRON investigation.)
A deeper slot helps prevent the sensing object from coming into
Installation with M2 screws: 18.0
contact with the base of the slot, creating greater tolerance in mechanism design.
6.5mm
Installation with M3 screws: 18.7 Example for the EE-SX950-W
Indication of Sensing Window for Easy Bright Indicator for Confirmation from Many Confirmation of Insertion Depth Directions The location of the sensing window is indicated on the insertion slot The bright light indicator can be checked from up to four directions to so that you can visually confirm whether the sensing object covers the enable flexible selection of the installation location.
sensing window and easily check the insertion depth.
The sensing object just needs to extend below this line.
