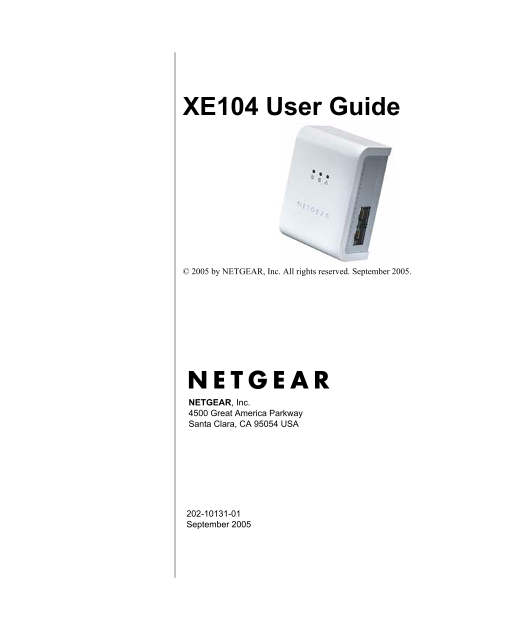

XE104 User Guide
© 2005 by NETGEAR, Inc. All rights reserved. September 2005.
NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA
202-10131-01 September 2005
Page Summary Contents For NETGEAR XE104 User Guide
Page 1
XE104 User Guide © 2005 by NETGEAR, Inc. All rights reserved. September 2005. NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA 202-10131-01 September 2005
Page 2
Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or tra...
Page 3
Product and Publication Details Model Number: XE104 Publication Date: September 2005 Product Family: Product Family Product Name: XE104 85 Mbps Wall-Plugged Ethernet Switch Home or Business Product: H...
Page 4
v1.0, September 2005
Page 5
Contents XE104 User Guide Chapter 1 About This Manual Audience, Scope, Conventions, and Formats ................................................................1-1 How to Use This Manual ................
Page 6
Chapter 4 Troubleshooting NETGEAR Product Registration, Support, and Documentation .....................................4-1 Basic Functioning .............................................................
Page 7
Chapter 1 About This Manual This chapter describes the intended audience, scope, conventions, and formats of this manual. Audience, Scope, Conventions, and Formats This reference manual assumes that t...
Page 8
XE104 User Guide Danger: This is a safety warning. Failure to take heed of this notice may result in personal injury or death. This manual is written for the XE104 Wall-Plugged Ethernet Switch accordi...
Page 9
XE104 User Guide Each page in the HTML version of the manual is dedicated to a major topic. Use the Print button on the browser toolbar to print the page contents. Printing a Chapter. Use the PDF of T...
Page 10
XE104 User Guide 1-4 About This Manual v1.0, September 2005
Page 11
Chapter 2 Introduction Congratulations on your purchase of the NETGEAR® XE104 85 Mbps Wall-Plugged Ethernet Switch. The XE104 Wall-Plugged Ethernet Switch lets you completely network your home by simp...
Page 12
XE104 User Guide Easy Installation and Management You can install, configure, and operate the XE104 85 Mbps Wall-Plugged Ethernet Switch within minutes after connecting it to the network. The followin...
Page 13
XE104 User Guide The XE104 Wall-Plugged Ethernet Switch The front panel of the XE104 contains the status lights described below. Figure 2-1 You can use the status lights to verify connections. Viewed ...
Page 14
XE104 User Guide Ethernet Ports The XE104 has four Ethernet ports: two on each side of the unit. Each port includes two embedded links, as shown in the following diagram.: Figure 2-2 Function Activity...
Page 15
Chapter 3 Installing the XE104 Wall-Plugged Ethernet Switch This chapter describes how to set up the XE104 85 Mbps Wall-Plugged Ethernet Switch on your local area network (LAN) and connect to the Inte...
Page 16
XE104 User Guide Prepare to Install Your Power Line Switch Check that these minimum requirements are met. Your Ethernet network is set up and an Ethernet port is available on your router. Your Interne...
Page 17
XE104 User Guide 1. First, connect a XE104 Wall-Plugged Ethernet Switch to a LAN port on the router so that the Power Line network can gain access to the internet. WARNING! Figure 3-3 Do not connect t...
Page 18
XE104 User Guide c. Plug the other end of blue Ethernet cable that came in the box into the XE104. Power: The power light should turn solid green. If it does not, see Chapter 4, “Troubleshooting”. Hom...
Page 19
XE104 User Guide Install the XE104 Power Line Encryption Utility (Highly Recommended) The utility provides you with the option of setting your own unique encryption Power Line network password. Import...
Page 20
XE104 User Guide 1. Insert the XE104 Resource CD into one of the CD-ROM drives on the computer that is connected to your router1. The CD should start automatically. The following screen should be disp...
Page 21
XE104 User Guide 2. Click the topmost button, labelled Install Software. A Welcome screen should appear. Figure 3-6 3. Click Next and follow the instructions on the screen. Figure 3-7 Installing the X...
Page 22
XE104 User Guide 4. Enter your user name and organization and click Next. Figure 3-8 5. Either select Change to change the location where files will be saved on your hard drive, or select Next to acce...
Page 23
XE104 User Guide 7. The Install Shield Wizard will indicate the program is ready to install. Figure 3-10 Click the Install button to trigger the installation. 8. When the installation is complete, cli...
Page 24
XE104 User Guide b. Start the Power Line encryption utility and ensure that the Main tab is selected. Figure 3-11 c. Check that the utility lists all the remote Power Line devices d. Select a Power Li...
Page 25
XE104 User Guide h. Repeat this step for all devices that you want attached to your network. 2. Set the network password. a. Select the Security tab. Figure 3-13 b. Type a password in the Private Netw...
Page 26
XE104 User Guide Adding a New Device from a Locally Connected Computer 1. Plug the new Power Line device into an available AC power outlet and connect a device port to an Ethernet port on the computer...
Page 27
Chapter 4 Troubleshooting This chapter gives information about troubleshooting your XE104 85 Mbps Wall-Plugged Ethernet Switch. After each problem description, instructions are provided to help you di...
Page 28
XE104 User Guide Power Light Not On Make sure that, if power to the AC power outlet is controlled by a wall switch, the wall switch is in the on position. Verify that the wall socket is live by discon...
