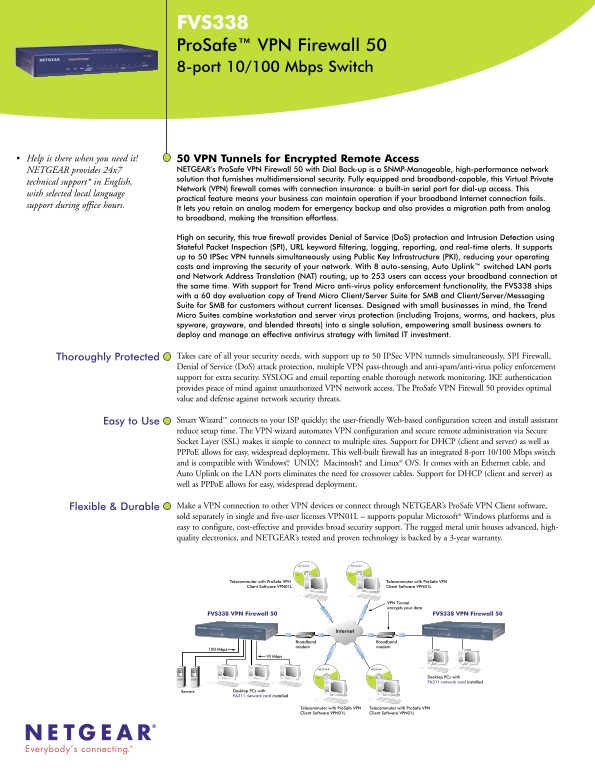

FVS338 Pro Safe™ VPN Firewall 50 8-port 10/100 Mbps Switch

Help is there when you need it! 50 VPN Tunnels for Encrypted Remote Access

NETGEAR provides 24x7 NETGEAR’s Pro Safe VPN Firewall 50 with Dial Back-up is a SNMP-Manageable, high-performance network solution that furnishes multidimensional security. Fully equipped and broadband-capable, this Virtual Private

technical support* in English,

Network (VPN) firewall comes with connection insurance: a built-in serial port for dial-up access. This

with selected local language

practical feature means your business can maintain operation if your broadband Internet connection fails.

support during office hours.

It lets you retain an analog modem for emergency backup and also provides a migration path from analog to broadband, making the transition effortless.

High on security, this true firewall provides Denial of Service (Do S) protection and Intrusion Detection using

Stateful Packet Inspection (SPI), URL keyword filtering, logging, reporting, and real-time alerts. It supports -1 -0

up to 50 IPSec VPN tunnels simultaneously using Public Key Infrastructure (PKI), reducing your operating costs and improving the security of your network. With 8 auto-sensing, Auto Uplink™ switched LAN ports and Network Address Translation (NAT) routing, up to 253 users can access your broadband connection at

the same time. With support for Trend Micro anti-virus policy enforcement functionality, the FVS338 ships with a 60 day evaluation copy of Trend Micro Client/Server Suite for SMB and Client/Server/Messaging

Suite for SMB for customers without current licenses. Designed with small businesses in mind, the Trend Micro Suites combine workstation and server virus protection (including Trojans, worms, and hackers, plus spyware, grayware, and blended threats) into a single solution, empowering small business owners to deploy and manage an effective antivirus strategy with limited IT investment.

Thoroughly Protected Takes care of all your security needs, with support up to 50 IPSec VPN tunnels simultaneously, SPI Firewall, Denial of Service (Do S) attack protection, multiple VPN pass-through and anti-spam/anti-virus policy enforcement support for extra security. SYSLOG and email reporting enable thorough network monitoring. IKE authentication provides peace of mind against unauthorized VPN network access. The Pro Safe VPN Firewall 50 provides optimal value and defense against network security threats.

Easy to Use Smart Wizard™ connects to your ISP quickly; the user-friendly Web-based configuration screen and install assistant reduce setup time. The VPN wizard automates VPN configuration and secure remote administration via Secure Socket Layer (SSL) makes it simple to connect to multiple sites. Support for DHCP (client and server) as well as PPPo E allows for easy, widespread deployment. This well-built firewall has an integrated 8-port 10/100 Mbps switch and is compatible with Windows®, UNIX®, Macintosh®, and Linux® O/S. It comes with an Ethernet cable, and Auto Uplink on the LAN ports eliminates the need for crossover cables. Support for DHCP (client and server) as well as PPPo E allows for easy, widespread deployment.

Flexible & Durable Make a VPN connection to other VPN devices or connect through NETGEAR’s Pro Safe VPN Client software, sold separately in single and five-user licenses VPN01L – supports popular Microsoft® Windows platforms and is easy to configure, cost-effective and provides broad security support. The rugged metal unit houses advanced, high- quality electronics, and NETGEAR’s tested and proven technology is backed by a 3-year warranty.

NMS100 Pro Safe Network Management System Everybody ’s connecting.™ NMS100 Pro Safe Network Management System Everybody ’s connecting.™

Software CD Version 1.0 Instructions: This CD should automatically run when inserted into your CD-ROM drive. If the CD Software CD Version 1.0 Instructions: This CD should automatically run when inserted into your CD-ROM drive. If the CD

does not start automatically, browse to the CD drive and click on NMSsetup.exe does not start automatically, browse to the CD drive and click on NMSsetup.exe

Telecommuter with Pro Safe VPN © 2004 NETGEAR, INC. © 2004 NETGEAR, Inc. ALL RIGHTS RESERVED 240-10041-01 © 2004 NETGEAR, INC. © 2004 NETGEAR, Inc. ALL RIGHTS RESERVED 240-10041-01 Telecommuter with Pro Safe VPN

All rights reserved 240-10129-01 All rights reserved 240-10129-01

Client Software VPN01L Client Software VPN01L

VPN Tunnel encrypts your data

FVS338 VPN Firewall 50 FVS338 VPN Firewall 50

Internet

Broadband Broadband modem modem

100 Mbps

10 Mbps

NMS100 Pro Safe Network Management System Everybody ’s connecting.™ NMS100 Pro Safe Network Management System Everybody ’s connecting.™

Software CD Version 1.0 Instructions: This CD should automatically run when inserted into your CD-ROM drive. If the CD Software CD Version 1.0 Instructions: This CD should automatically run when inserted into your CD-ROM drive. If the CD Desktop PCs with

does not start automatically, browse to the CD drive and click on NMSsetup.exe does not start automatically, browse to the CD drive and click on NMSsetup.exe

FA311 network card installed

© 2004 NETGEAR, INC. © 2004 NETGEAR, Inc. ALL RIGHTS RESERVED All rights reserved 240-10129-01 240-10041-01 © 2004 NETGEAR, INC. © 2004 NETGEAR, Inc. ALL RIGHTS RESERVED All rights reserved 240-10129-01 240-10041-01

Servers Desktop PCs with FA311 network card installed

Telecommuter with Pro Safe VPN Telecommuter with Pro Safe VPN Client Software VPN01L Client Software VPN01L
