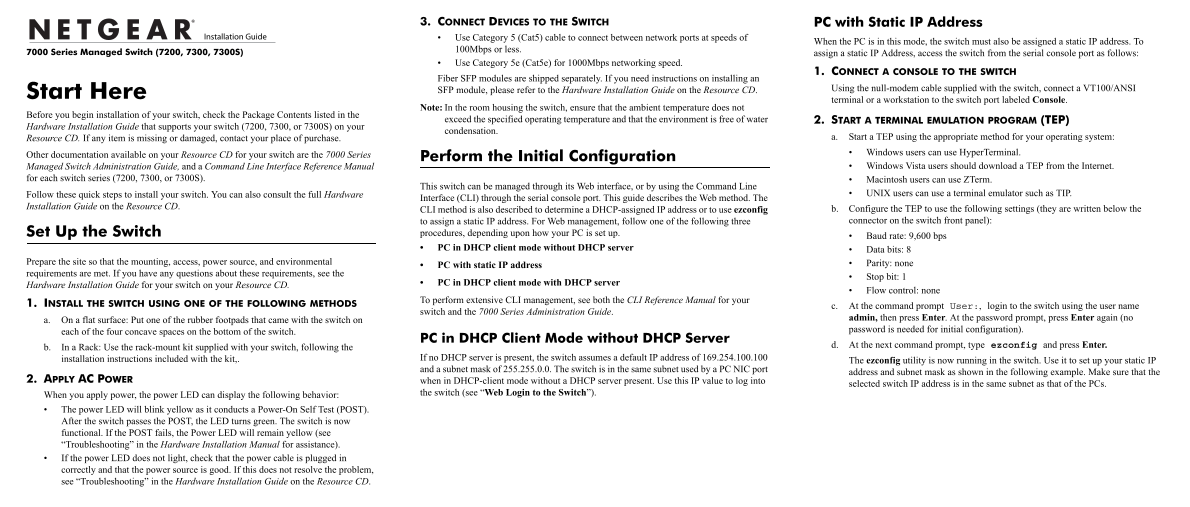

Netgear ProSAFE 24 Port 10 100 L3 Managed Stackable Switch with 4 Gigabit Ports FSM7328S Installation Guide

3. CONNECT DEVICES TO THE SWITCH PC with Static IP Address Use Category 5 (Cat5) cable to connect between network ports at speeds of

When the PC is in this mode, the switch must also be assigned a static IP address. To

100Mbps or less.

7000 Series Managed Switch (7200, 7300, 7300S) assign a static IP Address, access the switch from the serial console port as follows:

Use Category 5e (Cat5e) for 1000Mbps networking speed.

1. CONNECT A CONSOLE TO THE SWITCH

Fiber SFP modules are shipped separately. If you need instructions on installing an

SFP module, please refer to the Hardware Installation Guide on the Resource CD. Using the null-modem cable supplied with the switch, connect a VT100/ANSI

Start Here

terminal or a workstation to the switch port labeled Console.

Note: In the room housing the switch, ensure that the ambient temperature does not

Before you begin installation of your switch, check the Package Contents listed in the

exceed the specified operating temperature and that the environment is free of water 2. START A TERMINAL EMULATION PROGRAM (TEP)

Hardware Installation Guide that supports your switch (7200, 7300, or 7300S) on your

condensation.

Resource CD. If any item is missing or damaged, contact your place of purchase. a. Start a TEP using the appropriate method for your operating system: Windows users can use Hyper Terminal.

Other documentation available on your Resource CD for your switch are the 7000 Series Perform the Initial Configuration

Managed Switch Administration Guide, and a Command Line Interface Reference Manual Windows Vista users should download a TEP from the Internet.

for each switch series (7200, 7300, or 7300S). Macintosh users can use ZTerm.

This switch can be managed through its Web interface, or by using the Command Line

Follow these quick steps to install your switch. You can also consult the full Hardware UNIX users can use a terminal emulator such as TIP.

Interface (CLI) through the serial console port. This guide describes the Web method. The

Installation Guide on the Resource CD.

CLI method is also described to determine a DHCP-assigned IP address or to use ezconfig b. Configure the TEP to use the following settings (they are written below the to assign a static IP address. For Web management, follow one of the following three connector on the switch front panel):

Set Up the Switch procedures, depending upon how your PC is set up.

Baud rate: 9,600 bps

PC in DHCP client mode without DHCP server Data bits: 8

Prepare the site so that the mounting, access, power source, and environmental Parity: none

PC with static IP address

requirements are met. If you have any questions about these requirements, see the

Stop bit: 1

PC in DHCP client mode with DHCP server

Hardware Installation Guide for your switch on your Resource CD.

Flow control: none

To perform extensive CLI management, see both the CLI Reference Manual for your

1. INSTALL THE SWITCH USING ONE OF THE FOLLOWING METHODS c. At the command prompt User:, login to the switch using the user name

switch and the 7000 Series Administration Guide.

admin, then press Enter. At the password prompt, press Enter again (no

a. On a flat surface: Put one of the rubber footpads that came with the switch on

password is needed for initial configuration).

each of the four concave spaces on the bottom of the switch.

PC in DHCP Client Mode without DHCP Server

d. At the next command prompt, type ezconfig and press Enter.

b. In a Rack: Use the rack-mount kit supplied with your switch, following the

installation instructions included with the kit,. If no DHCP server is present, the switch assumes a default IP address of 169.254.100.100

The ezconfig utility is now running in the switch. Use it to set up your static IP

and a subnet mask of 255.255.0.0. The switch is in the same subnet used by a PC NIC port

address and subnet mask as shown in the following example. Make sure that the

2. APPLY AC POWER when in DHCP-client mode without a DHCP server present. Use this IP value to log into

selected switch IP address is in the same subnet as that of the PCs.

the switch (see “Web Login to the Switch”).

When you apply power, the power LED can display the following behavior: The power LED will blink yellow as it conducts a Power-On Self Test (POST). After the switch passes the POST, the LED turns green. The switch is now functional. If the POST fails, the Power LED will remain yellow (see “Troubleshooting” in the Hardware Installation Manual for assistance). If the power LED does not light, check that the power cable is plugged in correctly and that the power source is good. If this does not resolve the problem, see “Troubleshooting” in the Hardware Installation Guide on the Resource CD.
