Page 1

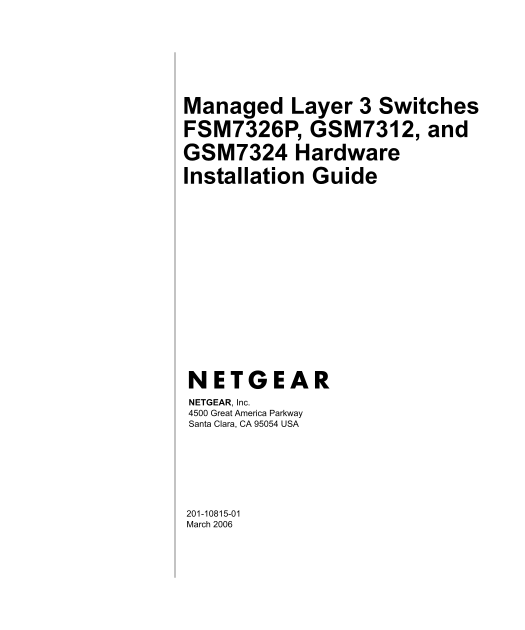

Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA 201-10815-01 March 2006
Page 2
© 2006 by NETGEAR, Inc. All rights reserved. Information is subject to change without notice. Trademarks The Netgear Logo, the Gear Guy, Everybody’s connecting, and Pro Safe are trademarks or register...
Page 3
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device ...
Page 4
Customer Support Refer to the Support Information Card that shipped with your Managed Layer 3 Switch. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal r...
Page 5
Contents Chapter 1 About This Manual Audience, Conventions, Formats, and Scope ................................................................1-1 Chapter 2 Introduction FSM7326P Front Panel and LEDs ...
Page 6
Additional Troubleshooting Suggestions .......................................................................4-2 Appendix A Technical Specifications .....................................................
Page 7
Chapter 1 About This Manual The Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide describes how to install the NETGEAR® FSM7326P, GSM7312, and GSM7324 switches. Audie...
Page 8
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Danger: This is a safety warning. Failure to take heed of this notice may result in personal injury or death. This m...
Page 9
Chapter 2 Introduction The NETGEAR Layer 3 Managed Fast Ethernet Switch is a state-of-the-art, high- performance, IEEE-compliant network solution. It includes powerful management features that you can...
Page 10
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide The following table describes the LEDs on the front panel of the switch. Table 2-1. LED Descriptions for FSM7326P LE...
Page 11
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide FSM7326P Rear Panel The rear panel has a standard AC power receptacle for the supplied power cord. Power receptacle ...
Page 12
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Table 2-2. GSM7312 LED Description (continued) Status Green: Switch is operating normally. Yellow: Switch failed to ...
Page 13
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide GSM7324 Front Panel and LEDs The following figure shows the front panel of the GSM7324. The front panel contains LED...
Page 14
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide GSM7324 Rear Panel The rear panel has a standard AC power receptacle for the supplied power cord. Power receptacle F...
Page 15
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Keep your system away from radiators and heat sources. Also, do not block cooling vents. Do not spill food or liquid...
Page 16
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products plugged into...
Page 17
Chapter 3 Hardware Installation This chapter explains how to install the hardware for the Managed Layer 3 Fast Ethernet Switch models FSM7326P, GSM7312, and GSM7324. Package Contents Each switch is pa...
Page 18
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Protecting Against Electrostatic Discharge Warning: Static electricity can harm delicate components inside your syst...
Page 19
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide 4. Make sure that all items are present. See “Package Contents” on page 3-1. Note: If any item is found missing or d...
Page 20
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide The site where you install the switch may greatly affect its performance. Before installing the switch or switches, ...
Page 21
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Install the Switch You can install the switch on a flat surface or in a standard 19-inch rack. Installing the Switch...
Page 22
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Check the Installation Before you apply power, perform the following checks: 1. Inspect the equipment thoroughly. 2....
Page 23
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Connecting Equipment to the Switch You can connect devices, an SPF Gigabit Ethernet module, and a console to the swi...
Page 24
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide 2. To install more Gigabit Ethernet modules, repeat step 1. Note: After the switch has been configured for managemen...
Page 25
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide 4. Configure the terminal-emulation program to use the following settings: Baud rate: 9,600 bps Data bits: 8 Parity:...
Page 26
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide 3-10 Hardware Installation v1.0, March 2006
Page 27
Chapter 4 Troubleshooting Troubleshooting Chart The following table lists symptoms, causes, and solutions of possible problems. Table 4-1. Troubleshooting Problem Cause Solution Power LED is off. No p...
Page 28
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Table 4-1. Troubleshooting A segment or device is One or more devices are Verify that the cabling is correct. not re...
Page 29
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Auto-Negotiation The 10/100/1000 Mbps ports negotiate the correct duplex mode and speed if the device at the other e...
Page 30
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide 4-4 Troubleshooting v1.0, March 2006
Page 31
Appendix A Technical Specifications This appendix provides technical specifications for the switches. Table A-1. Technical Specifications Feature FSM7326P GSM7312 GSM7324 IEEE Network 802.3 10BASE-T 8...
Page 32
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Table A-1. Technical Specifications (continued) Feature FSM7326P GSM7312 GSM7324 Switch Port mirroring support manag...
Page 33
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Table A-1. Technical Specifications (continued) Feature FSM7326P GSM7312 GSM7324 Acoustic noise 45 d B 45 d B 56.07 ...
Page 34
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide A-4 Technical Specifications v1.0, March 2006
Page 35
Appendix B Default Configuration Settings This appendix provides the default settings for the NETGEAR Model FSM7326P, GSM7312, and GSM7324 switches. Table B-1. Default Configuration Settings Features ...
Page 36
Managed Layer 3 Switches FSM7326P, GSM7312, and GSM7324 Hardware Installation Guide Table B-1. Default Configuration Settings (continued) Features FSM7326P GSM7312 GSM7324 Port mirroring Disabled Jumb...
Page 38
NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA March 2006
