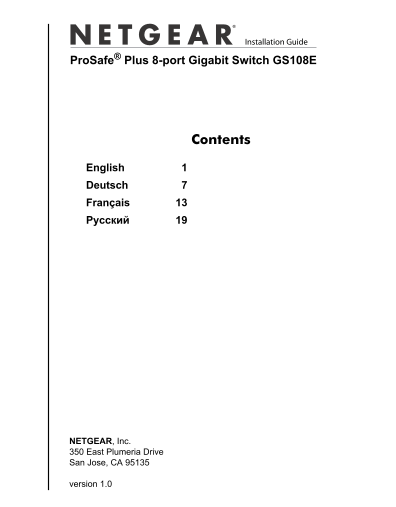

Pro Safe® Plus 8-port Gigabit Switch GS108E
Contents
English 1 Deutsch 7 Français 13 Русский 19
NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95135
version 1.0
Page Summary Contents For Netgear GS108Ev1 - 8-Port Gigabit Ethernet Plus Switch ProSafe GS108E Installation Guide [English, Deutsch, Français, Русский]
Page 1
Pro Safe® Plus 8-port Gigabit Switch GS108E Contents English 1 Deutsch 7 Français 13 Русский 19 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95135 version 1.0
Page 2
English Pro Safe® Plus 8-port Gigabit Switch GS108E Start Here Estimated Installation Time: 5–10 minutes Unpack the Box and Verify the Contents When you open the box, verify that you received everythi...
Page 3
English 2. For each device, insert one end of an Ethernet cable into the port in the device and insert the other end into one of the Ethernet ports on the switch. Modem Firewall GS108E Pro Safe® Plus ...
Page 4
English Set Up the Switch Configuration Utility In order to make use of the switch’s enhanced features you can install and use a switch configuration utility. This utility is on the Resource CD shippe...
Page 5
English Specifications Technical Specifications Standards IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX compatibility Fast Ethernet, IEEE 802.3ab 1000 BASE-T, IEEE 802.3x Flow Control, IEEE 80...
Page 6
English Performance Specifications Frame filter rate 14800 frames/sec max for 10M port; 148,800 frames/sec max for 100M; 1,488,000 frames/sec max for 1000M port Frame forward rate 14,800 frames/sec ma...
Page 7
English Technical Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at http://ww...
Page 8
Deutsch Pro Safe® Plus 8-Port Gigabit Switch GS108E Hier beginnen Geschätzte Installationszeit: 5–10 Minuten. Auspacken des Kartons und Überprüfen des Inhalts Öffnen Sie den Karton und vergewissern Si...
Page 9
Deutsch 2. Schließen Sie die Netzwerkkabel an die Netzwerkanschlüsse der Geräte und an einen Port des Switches an. Modem Firewall GS108E Pro Safe® Plus Switch 3. Stecken Sie das Stromkabel in den Ansc...
Page 10
Deutsch Einrichten des Switch-Konfigurationsprogramms Installieren Sie das Switch-Konfigurationsprogramm, um die verbesserten Funktionen des Switches optimal nutzen zu können. Das Verwaltungsprogramm ...
Page 11
Deutsch Spezifikationen Technische Daten Kompatibel zu IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Standards Fast Ethernet, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p- un...
Page 12
Deutsch Daten zur Leistung (Fortsetzung) Frame-Filter-Rate Max. 14.800 Frames/s bei 10 MBit/s; max. 148.800 Frames/s bei 100 MBit/s; max. 1.488.000 Frames/s bei 1.000 MBit/s Frame-Forward-Rate Max. 14...
Page 13
Deutsch Technischer Support Vielen Dank, dass Sie sich für Produkte von NETGEAR entschieden haben. Nach der Installation des Geräts können Sie das Produkt unter http://www.netgear.de/registrierung reg...
Page 14
Français Commutateur Gigabit 8 ports Pro Safe® Plus GS108E Pour commencer Durée approximative de l'installation : 5 à 10 minutes. Déballage de la boîte et vérification du contenu Lorsque vous ouvrez l...
Page 15
Français 2. Pour chaque périphérique, branchez une extrémité du câble Ethernet dans le port du périphérique et branchez l'autre extrémité dans l'un des ports Ethernet du commutateur. Modem Pare-feu GS...
Page 16
Français Configuration de l'utilitaire de configuration Afin d'utiliser les fonctionnalités améliorées du commutateur, vous pouvez avoir recours à un utilitaire de configuration. Cet utilitaire se tro...
Page 17
Français Caractéristiques Caractéristiques techniques Normes Ethernet 10BASE-T IEEE 802.3i, Ethernet rapide 100BASE-TX IEEE 802.3u, 1000 BASE-T IEEE 802.3ab, Contrôle de flux IEEE 802.3x, IEEE 802.1p ...
Page 18
Français Performances (suite) Taux de transfert au 14 800 paquets/sec au maximum pour le port 10M niveau du filtre 148 800 paquets/sec au maximum pour le port 100M 1 488 000 paquets/sec au maximum pou...
Page 19
Français Assistance technique Nous vous remercions d'avoir choisi les produits NETGEAR. Après l'installation de votre appareil, notez le numéro de série inscrit sur l'étiquette de votre produit. Il vo...
Page 20
8-портовый гигабитный коммутатор Pro Safe® Plus GS108E Начало работы Приблизительное время установки: 5–10 минут. Распаковка и проверка содержимого коробки Откройте упаковку и проверьте наличие всех к...
Page 21
2. Подключите один конец кабеля Ethernet к порту устройства, а другой конец – к одному из портов Ethernet коммутатора (повторите эту процедуру для каждого подключаемого устройства). Коммутатор Pro Saf...
Page 22
Установка утилиты настройки коммутатора. Чтобы пользоваться дополнительными функциями коммутатора, установите и используйте утилиту настройки коммутатора. Эта утилита поставляется вместе с коммутаторо...
Page 23
Соответствие IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX стандартам Fast Ethernet, IEEE 802.3ab 1000 BASE-T, управление потоком IEEE 802.3x, IEEE 802.1p и метки приоритетов TOS, WRR-очередь....
Page 24
(при использовании пакетов размером 64 байта) Размер базы адресов До 4K МАС-адресов Определение Автоматическое обновление MAC-адресов Буфер очередности 192 Кбайт Характерные Режим автоматического откл...
Page 25
Техническая поддержка Благодарим за выбор продуктов NETGEAR. После установки устройства зарегистрируйте его на веб-сайте http://www.netgear.ru/?page=support/register, воспользовавшись серийным номером...
Page 28
This symbol was placed in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this pro...
