National Semiconductor 5400 DM5400 DM7400 Quad 2-Input NAND Gates Data Manual
Summary
This robust integrated circuit provides four independent 2-Input NAND logic gates (5400/DM5400/DM7400). It is essential for electrical engineers and hardware designers building basic digital circuits. This manual offers comprehensive specifications on the device, covering recommended operating conditions across varying temperatures, detailed electrical characteristics—including output levels, input clamping voltages, and propagation delays—as well as physical dimensions and multiple packaging options (Ceramic DIL, Molded DIL).

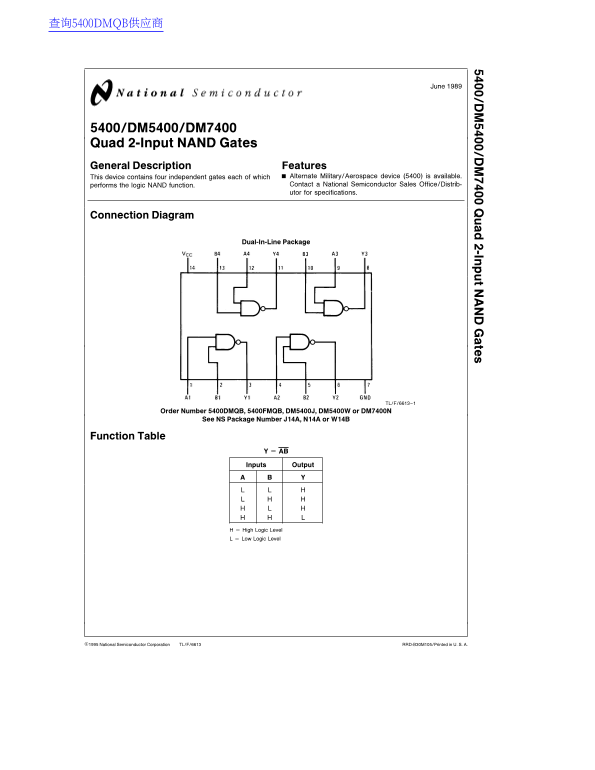

Page 1 Text Content
查询5400DMQB供应商
-In te
5400/DM5400/DM7400 Quad 2-Input NAND Gates General Description Features
This device contains four independent gates each of which Alternate Military/Aerospace device (5400) is available. performs the logic NAND function. Contact National Semiconductor Sales Office/Distrib- utor for specifications.
Connection Diagram
Dual-In-Line Package
TL/F/6613–1
Order Number 5400DMQB, 5400FMQB, DM5400J, DM5400W or DM7400N
See NS Package Number J14A, N14A or W14B
Function Table
Inputs Output
High Logic Level Low Logic Level
C1995 National Semiconductor Corporation TL/F/6613 RRD-B30M105/Printed in U. S. A.
Page Summary Contents For National Semiconductor 5400 DM5400 DM7400 Quad 2-Input NAND Gates Data Manual
Manual Details
| Brand | National |
|---|---|
| Pages | 4 |
| File Size | 94.60 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the different package types available for this chip?
It is available in three packages: Dual-In-Line Package (J), Molded Dual-In-Line Package (N), and Flat Package (W).
Does the device have military/aerospace versions?
Yes, an Alternate Military/Aerospace device for the 5400 is available.
What are the operating temperature ranges for DM5400 and DM7400?
DM5400 operates between 0°C to 125°C, while DM7400 operates between 0°C to 70°C.
What are the recommended supply voltages for this logic gate?
The nominal operating voltage range is typically 4.5V to 5.5V.
