National Semiconductor 74F158A Quad 2-Input Multiplexer Data Sheet
Summary
This datasheet outlines the 74F158A Quad 2-Input Multiplexer, a high-speed integrated circuit designed for selecting and routing four bits of data from two distinct sources. It functions as key logic component, allowing engineers to implement complex switching or Boolean functions using common Select inputs. The detailed manual provides full technical specifications, electrical characteristics, truth tables, and various packaging options (SOIC, SOP, PDIP) for hardware designers building stable signal selection circuits and advanced digital systems.

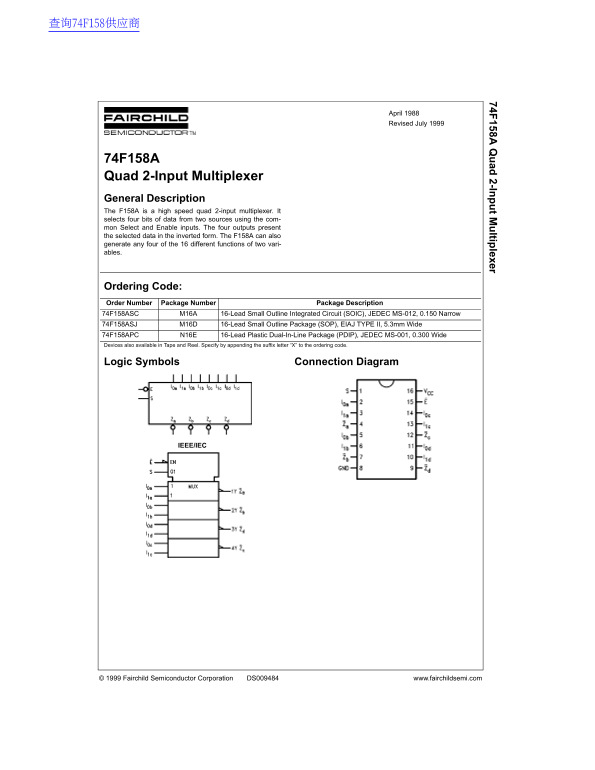

Page 1 Text Content
74F 158A ad 2-In t M ltip lexer
April 1988 Revised July 1999
74F158A Quad 2-Input Multiplexer General Description The F158A is a high speed quad 2-input multiplexer. It selects four bits of data from two sources using the com- mon Select and Enable inputs. The four outputs present the selected data in the inverted form. The F158A can also generate any four of the 16 different functions of two vari- ables.
Ordering Code: Order Number Package Number Package Description 74F158ASC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow 74F158ASJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74F158APC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbols Connection Diagram
IEEE/IEC
© 1999 Fairchild Semiconductor Corporation DS009484 www.fairchildsemi.com
Page Summary Contents For National Semiconductor 74F158A Quad 2-Input Multiplexer Data Sheet
Manual Details
| Brand | National |
|---|---|
| Pages | 5 |
| File Size | 55.87 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How many data bits can the F158A select?
It selects four parallel bits of data from two distinct sources.
What is the operating voltage range for this chip?
The recommended Supply Voltage (VCC) is between +4.5V and +5.5V.
How does the Enable input (E) control the outputs?
When E is HIGH, all four output pins (Z) are forced high regardless of other inputs.
What package types are available for ordering this component?
Available physical packages include SOIC (M16A), SOP (M16D), and PDIP (N16E).
