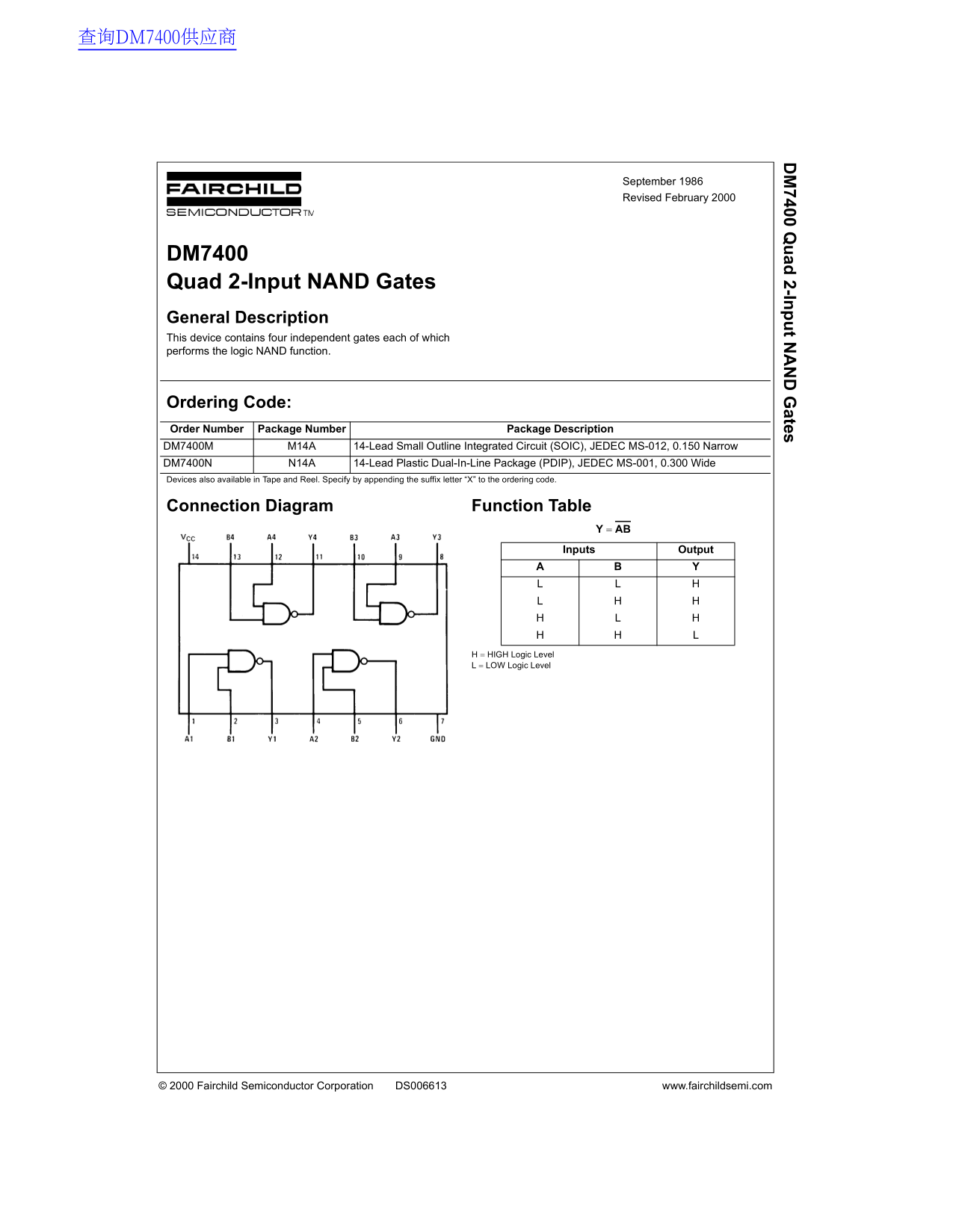

DM7400 Quad 2-Input NAND Gates General Description This device contains four independent gates each of which performs the logic NAND function.
Ordering Code: Order Number Package Number Package Description DM7400M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow DM7400N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram Function Table
Y = AB
Inputs Output
H = HIGH Logic Level L = LOW Logic Level
