The DM74ALS08 is a reliable Quad 2-Input AND Gate integrated circuit designed for robust digital logic applications. This technical manual provides comprehensive data essential for hardware engineers and electronics designers integrating this component into digital systems. Key coverage areas include detailed electrical characteristics, absolute maximum ratings, optimal switching specifications (propagation delays), and ordering options across various package formats (SOIC, SOP, PDIP). Use this guide to ensure correct power management and reliable performance in your circuit designs requiring precise AND gating functionality.

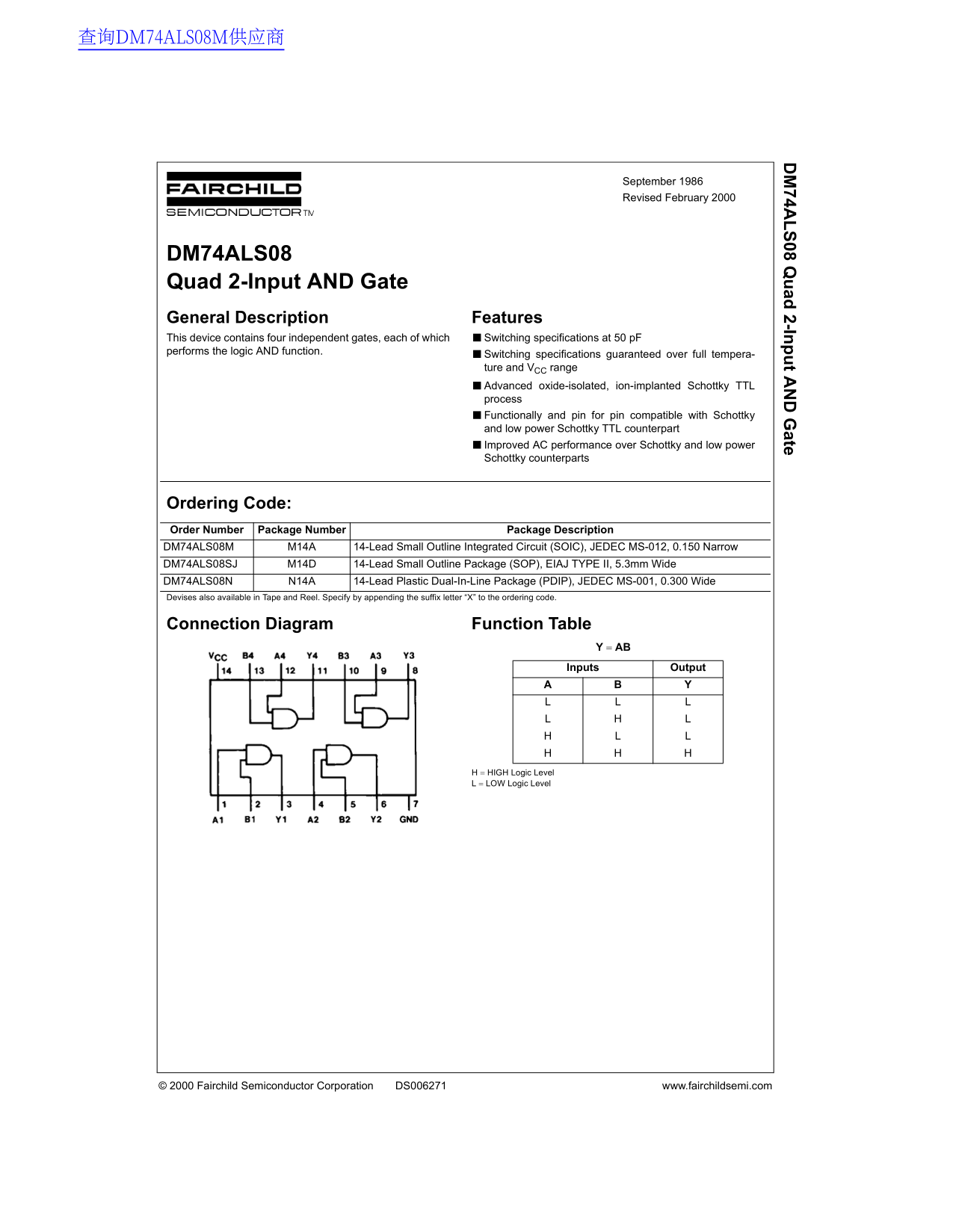

Page 1 Text Content
查询DM74ALS08M供应商
74A 08 Q ad 2-In t A ate
September 1986 Revised February 2000
DM74ALS08 Quad 2-Input AND Gate General Description Features This device contains four independent gates, each of which Switching specifications at 50 p F performs the logic AND function.
Switching specifications guaranteed over full tempera- ture and VCC range Advanced oxide-isolated, ion-implanted Schottky TTL process Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart Improved AC performance over Schottky and low power Schottky counterparts
Ordering Code: Order Number Package Number Package Description DM74ALS08M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow DM74ALS08SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide DM74ALS08N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devises also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram Function Table
Y = AB
Inputs Output
H = HIGH Logic Level L = LOW Logic Level
© 2000 Fairchild Semiconductor Corporation DS006271 www.fairchildsemi.com
Page Summary Contents For Fairchild DM74ALS08 Quad 2-Input AND Gate Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 5 |
| File Size | 61.22 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational temperature range?
The recommended operating free air temperature range is 0°C to +70°C.
How durable is this device in extreme temperatures?
The storage temperature range is specified as −65°C to +150°C.
Does the device function with different TTL types?
Yes, it is functionally and pin for pin compatible with Schottky and low power Schottky TTL counterparts.
What are the required supply voltage parameters?
The recommended operating supply voltage range is 4.5V to 5.5V.
