MOTOROLA MRIFIC0917 Data Sheet

Summary

This integrated circuit is a high-performance GaAs MESFET Power Amplifier designed specifically for robust operation in GSM Class IV cellular handsets at 900 MHz. This technical data manual provides RF engineers and circuit designers with comprehensive specifications needed for reliable system integration. It covers absolute maximum ratings, detailed recommended operating ranges, performance curves (Output Power vs. Frequency, PAE vs. Frequency), and functional block diagrams. Use this resource to ensure seamless implementation of advanced cellular communication systems.

📄 Preview PAGE OF 10

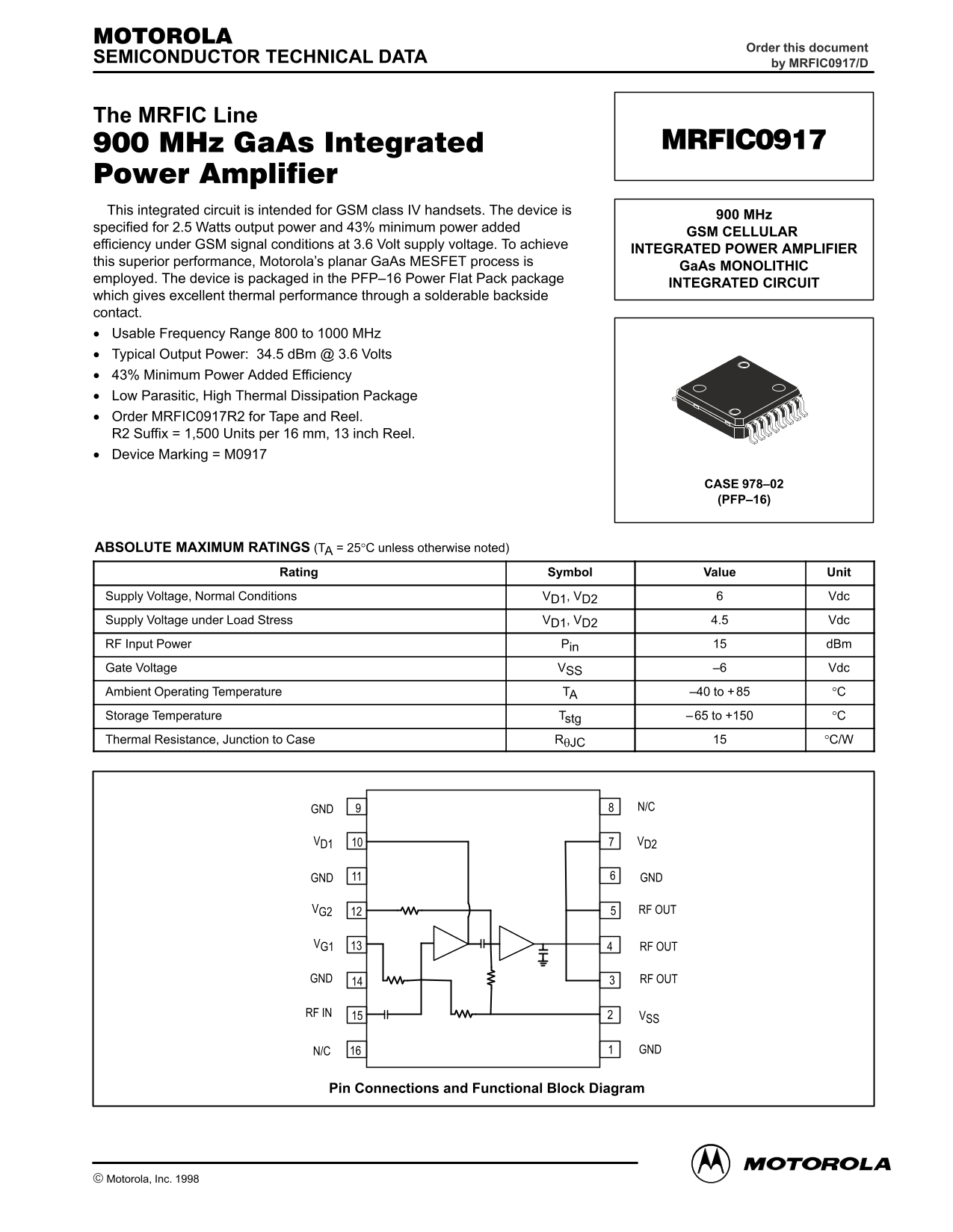

Page 1 Text Content

Order this document

SEMICONDUCTOR TECHNICAL DATA

by MRFIC0917/D

The MRFIC Line

This integrated circuit is intended for GSM class IV handsets. The device is

900 MHz

specified for 2.5 Watts output power and 43% minimum power added

GSM CELLULAR

efficiency under GSM signal conditions at 3.6 Volt supply voltage. To achieve

INTEGRATED POWER AMPLIFIER

this superior performance, Motorola’s planar Ga As MESFET process is

Ga As MONOLITHIC

employed. The device is packaged in the PFP–16 Power Flat Pack package

INTEGRATED CIRCUIT

which gives excellent thermal performance through a solderable backside contact. Usable Frequency Range 800 to 1000 MHz Typical Output Power: 34.5 d Bm @ 3.6 Volts 43% Minimum Power Added Efficiency Low Parasitic, High Thermal Dissipation Package Order MRFIC0917R2 for Tape and Reel. R2 Suffix = 1,500 Units per 16 mm, 13 inch Reel. Device Marking = M0917

CASE 978–02 (PFP–16)

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)

Rating Symbol Value Unit

Supply Voltage, Normal Conditions VD1, VD2 Vdc Supply Voltage under Load Stress VD1, VD2 4.5 Vdc RF Input Power Pin d Bm Gate Voltage VSS –6 Vdc Ambient Operating Temperature TA –40 to +85 °C Storage Temperature Tstg –65 to +150 °C Thermal Resistance, Junction to Case RθJC °C/W

GND N/C

VD1 VD2

GND GND

VG2 RF OUT

VG1 RF OUT

GND RF OUT

RF IN VSS

N/C GND

Pin Connections and Functional Block Diagram

 Motorola, Inc. 1998 MRFIC0917MOTOROLA RF DEVICE DATA

Page Summary Contents For MOTOROLA MRIFIC0917 Data Sheet

Page 1 Order this document SEMICONDUCTOR TECHNICAL DATA by MRFIC0917/D The MRFIC Line This integrated circuit is intended for GSM class IV handsets. The device is 900 MHz specified for 2.5 Watts output power...
Page 2 RECOMMENDED OPERATING RANGES Parameter Symbol Value Unit Supply Voltage VD1, VD2 2.7 to 5.5 Vdc Gate Voltage VSS –5 to –3 Vdc RF Frequency Range f RF 800 to 1000 MHz RF Input Power PRF 6 to 13 d Bm EL...
Page 3 BATTERY Q1 C17 VRAMP STANDBY RF OUT RF IN C1, C3, C10 33 p F CR1 MMBD701LT1 R4 1 kΩ C2, C6, C9 33 n F L1 5.6 n H R5 470 Ω C4 4.7 p F L2 10 Turn Micro Spring, R6 22 Ω C5 10 p F Coilcraft 1606–10 or 18 ...
Page 4 TYPICAL CHARACTERISTICS , O TP PO ER (d Bm , O TP PO ER (d Bm , O TP PO ER (d Bm ut ut ut TA = –40°C TA = –40°C Pin = 12 d Bm Pin = 12 d Bm 31.5 VD1 = VD2 = 3.0 V VD1 = VD2 = 3.6 V VSS = –4.0 V VSS = ...
Page 5 TYPICAL CHARACTERISTICS PA E, ER ED FF IC IE TA = –40°C TA = 25°C Pin = 12 d Bm VD1 = VD2 = 3.6 V VSS = –4.0 V VSS = –4.0 V f = 900 MHz PA E, ER ED FF IC IE f = 900 MHz VD1, VD2, DRAIN VOLTAGE (V) Pin...
Page 6 Table 2. Scattering Parameters (VDD = 3 V, VSS, VG1, VG2 Set for IDQ1= 150 m A and IDQ2 = 750 m A, 50 Ω System) MHz |S11| |S21| |S12| |S22| MRFIC0917 MOTOROLA RF DEVICE DATA
Page 7 Table 3. Scattering Parameters (VDD = 3.6 V, VSS, VG1, VG2 Set for IDQ1= 150 m A and IDQ2 = 750 m A, 50 Ω System) MHz |S11| |S21| |S12| |S22| MRFIC0917MOTOROLA RF DEVICE DATA
Page 8 Table 4. Scattering Parameters (VDD = 4.2 V, VSS, VG1, VG2 Set for IDQ1= 150 m A and IDQ2 = 750 m A, 50 Ω System) MHz |S11| |S21| |S12| |S22| MRFIC0917 MOTOROLA RF DEVICE DATA
Page 9 APPLICATIONS INFORMATION Design Philosophy The MRFIC0917 is a two–stage Integrated Power Amplifier This technique can be used open–loop to achieve 20–25 d B designed for use in cellular phones, especi...
Page 10 PACKAGE DIMENSIONS X 45 NOTES: 1. CONTROLLING DIMENSION: MILLIMETER. 2. DIMENSIONS AND TOLERANCES PER ASME Y14.5M, 1994. 3. DATUM PLANE –H– IS LOCATED AT BOTTOM OF LEAD AND IS COINCIDENT WITH THE LEAD...
