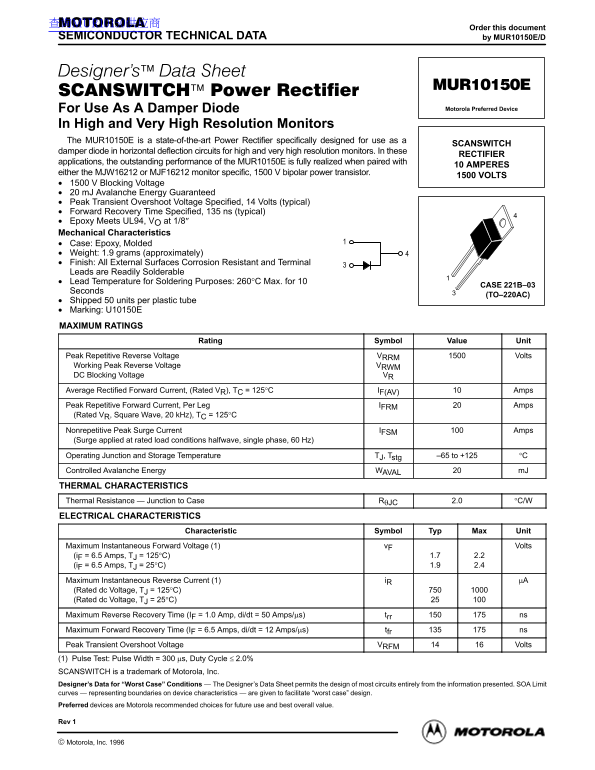

MOTOROLA Mur10150E Data Sheet

查询MUR10150供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MUR10150E/D

For Use As A Damper Diode Motorola Preferred Device

In High and Very High Resolution Monitors The MUR10150E is a state-of-the-art Power Rectifier specifically designed for use as a

SCANSWITCH

damper diode in horizontal deflection circuits for high and very high resolution monitors. In these

RECTIFIER

applications, the outstanding performance of the MUR10150E is fully realized when paired with

10 AMPERES

either the MJW16212 or MJF16212 monitor specific, 1500 V bipolar power transistor.

1500 VOLTS

1500 V Blocking Voltage 20 m J Avalanche Energy Guaranteed Peak Transient Overshoot Voltage Specified, 14 Volts (typical) Forward Recovery Time Specified, 135 ns (typical) Epoxy Meets UL94, VO at 1/8″ Mechanical Characteristics Case: Epoxy, Molded Weight: 1.9 grams (approximately) Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260°C Max. for 10

CASE 221B–03

Seconds

(TO–220AC)

Shipped 50 units per plastic tube Marking: U10150E MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Repetitive Reverse Voltage VRRM Volts Working Peak Reverse Voltage VRWM DC Blocking Voltage VR Average Rectified Forward Current, (Rated VR), TC = 125°C IF(AV) Amps Peak Repetitive Forward Current, Per Leg IFRM Amps (Rated VR, Square Wave, 20 k Hz), TC = 125°C Nonrepetitive Peak Surge Current IFSM Amps (Surge applied at rated load conditions halfwave, single phase, 60 Hz) Operating Junction and Storage Temperature TJ, Tstg –65 to +125 °C Controlled Avalanche Energy WAVAL m J THERMAL CHARACTERISTICS Thermal Resistance — Junction to Case RθJC 2.0 °C/W ELECTRICAL CHARACTERISTICS

Characteristic Symbol Typ Max Unit

Maximum Instantaneous Forward Voltage (1) v F Volts (i F = 6.5 Amps, TJ = 125°C) 1.7 2.2 (i F = 6.5 Amps, TJ = 25°C) 1.9 2.4 Maximum Instantaneous Reverse Current (1) i R µA (Rated dc Voltage, TJ = 125°C) (Rated dc Voltage, TJ = 25°C) Maximum Reverse Recovery Time (IF = 1.0 Amp, di/dt = 50 Amps/µs) trr ns Maximum Forward Recovery Time (IF = 6.5 Amps, di/dt = 12 Amps/µs) tfr ns Peak Transient Overshoot Voltage VRFM Volts (1) Pulse Test: Pulse Width = 300 µs, Duty Cycle ≤ 2.0% SCANSWITCH is a trademark of Motorola, Inc. Designer’s Data for “Worst Case” Conditions The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. SOA Limit curves representing boundaries on device characteristics are given to facilitate “worst case” design. Preferred devices are Motorola recommended choices for future use and best overall value.

Rev 1

1Rectifier Device Data

 Motorola, Inc. 1996
