MOTOROLA MC33269 Data Sheet
Summary
The MC33269 series delivers compact, low dropout voltage regulation for precision power management in applications with low input voltages. These medium current regulators are available in fixed voltages (3.3V, 5.0V, 12V) or adjustable modes, ensuring stable and efficient operation while minimizing power losses. This manual serves as a comprehensive resource for circuit designers and engineers, detailing electrical specifications, various package options (SOP-8, DPAK, SOT-223), ordering guides, and crucial technical performance parameters necessary for system integration.

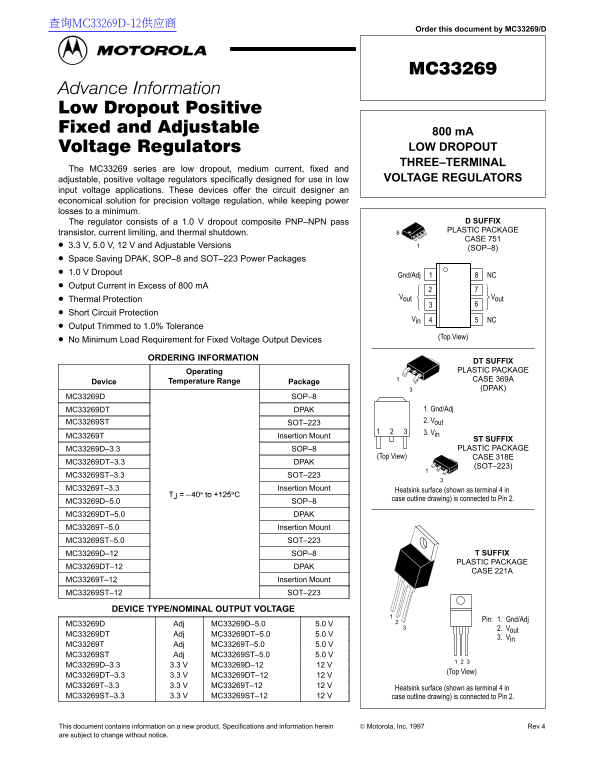

Page 1 Text Content
查询MC33269D-12供应商
Order this document by MC33269/D
800 m A LOW DROPOUT THREE–TERMINAL
The MC33269 series are low dropout, medium current, fixed and
adjustable, positive voltage regulators specifically designed for use in low VOLTAGE REGULATORS
input voltage applications. These devices offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum.
The regulator consists of a 1.0 V dropout composite PNP–NPN pass D SUFFIX PLASTIC PACKAGE
transistor, current limiting, and thermal shutdown.
CASE 751
3.3 V, 5.0 V, 12 V and Adjustable Versions
(SOP–8)
Space Saving DPAK, SOP–8 and SOT–223 Power Packages 1.0 V Dropout
Gnd/Adj NC
Output Current in Excess of 800 m A
Vout Vout
Thermal Protection Short Circuit Protection
Vin NC
Output Trimmed to 1.0% Tolerance
(Top View)
No Minimum Load Requirement for Fixed Voltage Output Devices
ORDERING INFORMATION
DT SUFFIX Operating PLASTIC PACKAGE CASE 369A
Device Temperature Range Package
(DPAK)
MC33269D SOP–8
MC33269DT DPAK 1. Gnd/Adj MC33269ST 2. Vout
SOT–223
3. Vin
MC33269T Insertion Mount
ST SUFFIX MC33269D–3.3 SOP–8 PLASTIC PACKAGE
(Top View) CASE 318E
MC33269DT–3.3 DPAK
(SOT–223)
MC33269ST–3.3 SOT–223 MC33269T–3.3 Insertion Mount Heatsink surface (shown as terminal 4 in
40° to 125°C
case outline drawing) is connected to Pin 2.
MC33269D–5.0 SOP–8 MC33269DT–5.0 DPAK MC33269T–5.0 Insertion Mount MC33269ST–5.0 SOT–223
MC33269D–12 SOP–8 T SUFFIX PLASTIC PACKAGE
MC33269DT–12 DPAK
CASE 221A
MC33269T–12 Insertion Mount MC33269ST–12 SOT–223
DEVICE TYPE/NOMINAL OUTPUT VOLTAGE
Pin: 1. Gnd/Adj
MC33269D Adj MC33269D–5.0 5.0 V
2. Vout
MC33269DT Adj MC33269DT–5.0 5.0 V
3. Vin
MC33269T Adj MC33269T–5.0 5.0 V MC33269ST Adj MC33269ST–5.0 5.0 V MC33269D–3.3 3.3 V MC33269D–12 12 V
(Top View)
MC33269DT–3.3 3.3 V MC33269DT–12 12 V MC33269T–3.3 3.3 V MC33269T–12 12 V
Heatsink surface (shown as terminal 4 in
MC33269ST–3.3 3.3 V MC33269ST–12 12 V case outline drawing) is connected to Pin 2.
This document contains information on a new product. Specifications and information herein Motorola, Inc. 1997 Rev 4 are subject to change without notice. 1MOTOROLA ANALOG IC DEVICE DATA
Page Summary Contents For MOTOROLA MC33269 Data Sheet
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 8 |
| File Size | 190.12 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the MC33269 optimized for?
It is designed as a low dropout, medium current, positive voltage regulator ideal for low input voltage applications.
What is the maximum operating input voltage (V In)?
The maximum rating for the power supply input voltage (V In) is 20 V.
What are the available fixed output voltages?
Available fixed voltage options include 3.3 V, 5.0 V, and 12 V, in addition to an adjustable version.
Which packages are available for PCB mounting?
Packages include SOP–8, DPAK (Case 369A), SOT–223, and Insertion Mount versions.
