MOTOROLA MPS4126 Data Sheet
Summary
This technical data sheet provides comprehensive specifications for the MPS4126, a high-performance PNP Silicon small-signal transistor. Engineered for demanding electronic applications, it details maximum electrical ratings, detailed switching parameters (ON/OFF characteristics), and critical datasheet information necessary for circuit design. Ideal for electronics engineers, hardware designers, and technicians who require precise performance data to select and integrate reliable solid-state components into their professional circuitry.

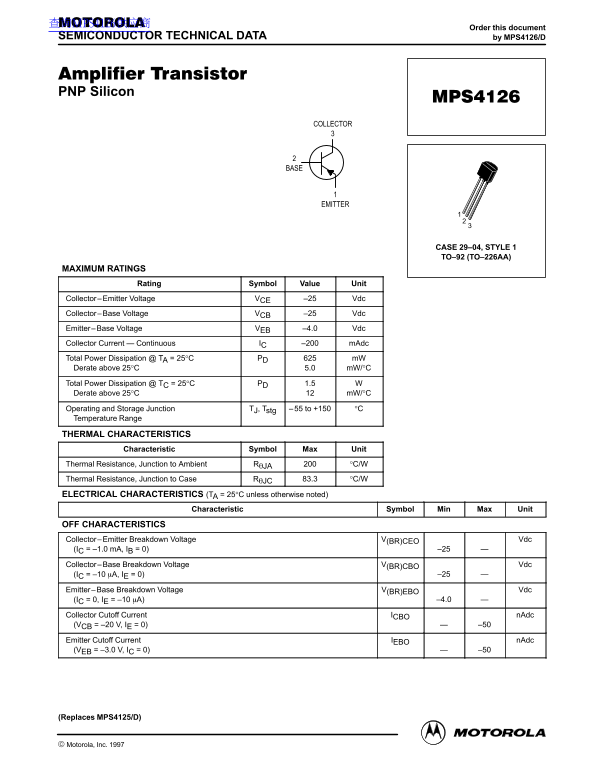

Page 1 Text Content
查询MPS4126供应商
Order this document
SEMICONDUCTOR TECHNICAL DATA by MPS4126/D
PNP Silicon
COLLECTOR
EMITTER
CASE 29–04, STYLE 1 TO–92 (TO–226AA)
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector–Emitter Voltage VCE –25 Vdc Collector–Base Voltage VCB –25 Vdc Emitter–Base Voltage VEB –4.0 Vdc Collector Current — Continuous IC –200 m Adc Total Power Dissipation @ TA = 25°C PD m W Derate above 25°C 5.0 m W/°C Total Power Dissipation @ TC = 25°C PD 1.5 Derate above 25°C m W/°C Operating and Storage Junction TJ, Tstg –55 to +150 °C Temperature Range
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction to Ambient RJA °C/W Thermal Resistance, Junction to Case RJC 83.3 °C/W
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit
OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage V(BR)CEO Vdc (IC = –1.0 m A, IB = 0) –25 Collector–Base Breakdown Voltage V(BR)CBO Vdc
(IC = –10 A, IE = 0) –25
Emitter–Base Breakdown Voltage V(BR)EBO Vdc
(IC = 0, IE = –10 A) –4.0
Collector Cutoff Current ICBO n Adc (VCB = –20 V, IE = 0) –50 Emitter Cutoff Current IEBO n Adc (VEB = –3.0 V, IC = 0) –50
(Replaces MPS4125/D)
1Motorola Small–Signal Transistors, FETs and Diodes Device Data
Motorola, Inc. 1997
