This comprehensive technical datasheet details the MGP20N14CL/D IGBT, a logic-level 20A transistor designed for reliable power switching applications, such as ignition coil drivers and load interfacing with microprocessors. The manual provides engineering professionals and circuit designers with essential information, including maximum ratings, electrical characteristics (including ESD protection), detailed dynamic measurements, and thermal performance data necessary for accurate system integration.

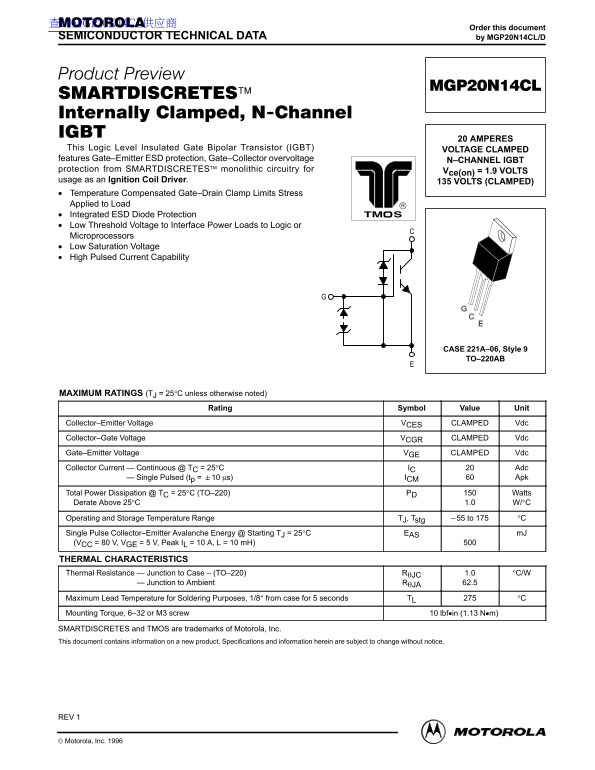

Page 1 Text Content
查询MGP20N14CL供应商
Order this document
SEMICONDUCTOR TECHNICAL DATA by MGP20N14CL/D
20 AMPERES
This Logic Level Insulated Gate Bipolar Transistor (IGBT) VOLTAGE CLAMPED features Gate–Emitter ESD protection, Gate–Collector overvoltage N–CHANNEL IGBT protection from SMARTDISCRETES monolithic circuitry for Vce(on) = 1.9 VOLTS usage as an Ignition Coil Driver. 135 VOLTS (CLAMPED) Temperature Compensated Gate–Drain Clamp Limits Stress Applied to Load Integrated ESD Diode Protection Low Threshold Voltage to Interface Power Loads to Logic or Microprocessors Low Saturation Voltage High Pulsed Current Capability
CASE 221A–06, Style 9 TO–220AB
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating Symbol Value Unit
Collector–Emitter Voltage VCES CLAMPED Vdc Collector–Gate Voltage VCGR CLAMPED Vdc Gate–Emitter Voltage VGE CLAMPED Vdc Collector Current — Continuous @ TC = 25°C IC Adc
Collector Current — Single Pulsed (tp = 10 s) ICM Apk
Total Power Dissipation @ TC = 25°C (TO–220) PD Watts Derate Above 25°C 1.0 W/°C
Operating and Storage Temperature Range TJ, Tstg –55 to 175 °C Single Pulse Collector–Emitter Avalanche Energy @ Starting TJ = 25°C EAS m J (VCC = 80 V, VGE = 5 V, Peak IL = 10 A, L = 10 m H)
THERMAL CHARACTERISTICS Thermal Resistance — Junction to Case – (TO–220) RJC 1.0 °C/W Thermal Resistance — Junction to Ambient RJA 62.5 Maximum Lead Temperature for Soldering Purposes, 1/8″ from case for 5 seconds TL °C Mounting Torque, 6–32 or M3 screw 10 lbfin (1.13 Nm)
SMARTDISCRETES and TMOS are trademarks of Motorola, Inc. This document contains information on a new product. Specifications and information herein are subject to change without notice.
REV 1
torola, Inc. 1996 1Motorola TMOS Power MOSFET Transistor Device Data
Page Summary Contents For MOTOROLA MGP20N14CL Data Sheet
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 4 |
| File Size | 78.75 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum absolute Collector–Emitter Voltage (Vce)?
The maximum rating for Vceq IS 135 Volts.
How must I address power dissipation if operating above 25°C?
Power Dissipation must be derated at a rate of 1.0 W/°C for every degree increase above 25°C.
What is the recommended mounting torque for the TO-220 package?
The suggested mounting torque is 6–32 or M3 screw, set at 10 lbf·in (1.13 N·m).
Can this component be used in applications where failure could lead to personal injury?
No; the document explicitly disclaims use in systems intended for surgical implant into the body or life-support applications.
