MOTOROLA MCM64PC32 MCM64PC64 DATA SHEET

Summary

These high-performance, burstable L2 cache modules are engineered for enhancing Pentium microprocessors within systems utilizing Intel’s Triton II chip set. Available in a standard 160-pin card edge format, these MCM modules provide critical storage functions via advanced BurstRAM technology (32K x 64 bits or 64K x 64 bits). This comprehensive guide serves as the technical resource for hardware engineers and system designers, detailing every aspect of implementation—including detailed pin assignments (A3-A18), timing diagrams, electrical specifications, and necessary signal integration points.

📄 Preview PAGE OF 16

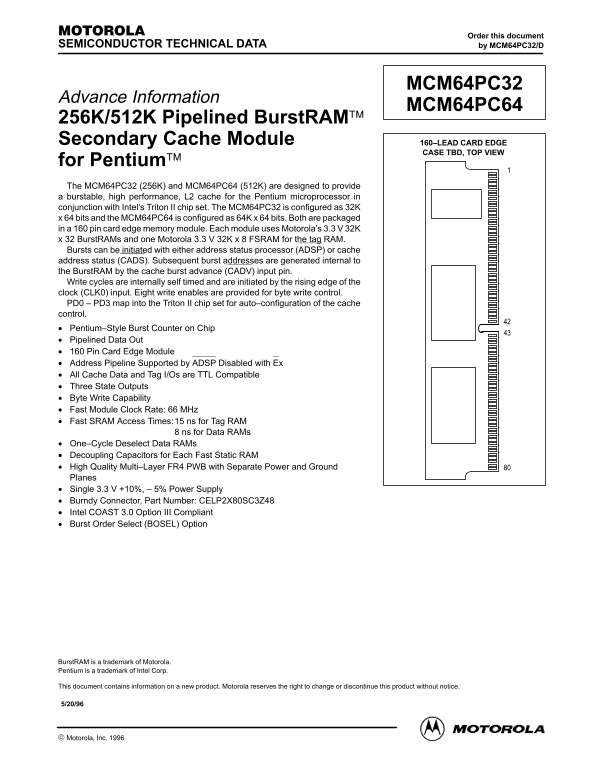

Page 1 Text Content

Order this document

SEMICONDUCTOR TECHNICAL DATA by MCM64PC32/D

MCM64PC32

Advance Information

MCM64PC64

256K/512K Pipelined Burst RAM Secondary Cache Module 160–LEAD CARD EDGE

CASE TBD, TOP VIEW

for Pentium The MCM64PC32 (256K) and MCM64PC64 (512K) are designed to provide a burstable, high performance, L2 cache for the Pentium microprocessor in conjunction with Intel’s Triton II chip set. The MCM64PC32 is configured as 32K x 64 bits and the MCM64PC64 is configured as 64K x 64 bits. Both are packaged in a 160 pin card edge memory module. Each module uses Motorola’s 3.3 V 32K x 32 Burst RAMs and one Motorola 3.3 V 32K x 8 FSRAM for the tag RAM. Bursts can be initiated with either address status processor (ADSP) or cache address status (CADS). Subsequent burst addresses are generated internal to the Burst RAM by the cache burst advance (CADV) input pin. Write cycles are internally self timed and are initiated by the rising edge of the clock (CLK0) input. Eight write enables are provided for byte write control. PD0 – PD3 map into the Triton II chip set for auto–configuration of the cache control. Pentium–Style Burst Counter on Chip Pipelined Data Out 160 Pin Card Edge Module Address Pipeline Supported by ADSP Disabled with Ex All Cache Data and Tag I/Os are TTL Compatible Three State Outputs Byte Write Capability Fast Module Clock Rate: 66 MHz Fast SRAM Access Times:15 ns for Tag RAM

8 ns for Data RAMs

One–Cycle Deselect Data RAMs Decoupling Capacitors for Each Fast Static RAM High Quality Multi–Layer FR4 PWB with Separate Power and Ground Planes Single 3.3 V +10%, – 5% Power Supply Burndy Connector, Part Number: CELP2X80SC3Z48 Intel COAST 3.0 Option III Compliant Burst Order Select (BOSEL) Option

Burst RAM is a trademark of Motorola. Pentium is a trademark of Intel Corp.

This document contains information on a new product. Motorola reserves the right to change or discontinue this product without notice.

MOTOROLA FAST SRAM  Motorola, Inc. 1996 MCM64PC32•MCM64PC64

Page Summary Contents For MOTOROLA MCM64PC32 MCM64PC64 DATA SHEET

Page 1 Order this document SEMICONDUCTOR TECHNICAL DATA by MCM64PC32/D MCM64PC32 Advance Information MCM64PC64 256K/512K Pipelined Burst RAM Secondary Cache Module 160–LEAD CARD EDGE CASE TBD, TOP VIEW for ...
Page 2 MCM64PC32 BLOCK DIAGRAM TIO0 – TIO7 DQ0 – DQ7 ECS2 ECS1 SA0 – SA14 SE1 CCS ADSP ADSP SE2 VDD CADS ADSC SE3 4.7 kΩ CADV VDD CLK0 LBO BOSEL CG BWE SW ZZ GWE SGW CWE0 – CWE3 SBa – SBd DQ0 – DQ31 DQ0 – DQ...
Page 3 MCM64PC64 BLOCK DIAGRAM TIO0 – TIO7 DQ0 – DQ7 SA0 – SA14 SE1 SA0 – SA14 SE1 ADSP ADSP SE2 ADSP SE2 VDD CADS ADSC SE3 ADSC SE3 CADV ADV ADV CLK0 LBO LBO CG BWE SW ZZ SW ZZ SGW SGW CWE0 – SBa – SBd SBa ...
Page 4 PIN ASSIGNMENT 160–LEAD CARD EDGE MODULE (DIMM) Pin Name Pin Name Pin Name Pin Name Pin Name VSS PD1 DQ22 NC DQ47 TIO0 PD3 DQ20 NC DQ45 TIO2 VSS DQ18 VSS DQ43 TIO6 CLK1 VDD3 RSVD VDD5 TIO4 VSS DQ16 A4...
Page 5 PIN DESCRIPTIONS 160–Lead Card Edge Pin Locations Symbol Type Description 20, 21, 22, 23, 24, 26, 28, 29, A3 – A18 Input Address Inputs: These inputs are registered into data RAMs and must 101, 102, 1...
Page 6 SYNCHRONOUS TRUTH TABLE (See Notes 1, 2, and 3) CCS ADSP CADS CADV CWEx CLK0 Address Used Operation L–H N/A Deselected L–H External Address Read Cycle, Begin Burst L–H External Address Write Cycle, Be...
Page 7 DC OPERATING CONDITIONS AND CHARACTERISTICS (VDD = 3.3 V + 10%, – 5%, TJ = 20 to + 110°C, Unless Otherwise Noted) RECOMMENDED OPERATING CONDITIONS (Voltages referenced to VSS = 0 V) Parameter Symbol M...
Page 8 DATA RAMs AC OPERATING CONDITIONS AND CHARACTERISTICS (VDD = 3.3 V + 10%, – 5% TJ = 20 to + 110°C, Unless Otherwise Noted) Input Timing Measurement Reference Level 1.5 V. . . . . . . . . . . . . . . O...
Page 9 DATA RAMs READ/WRITE CYCLE TIMING (See Notes 1, 2, and 3) MCM64PC32–66 Parameter Symbol Min Max Unit Notes Cycle Time t KHKH ns Clock Access Time t KHQV ns Output Enable to Output Valid t GLQV ns Cloc...
Page 10 PULL–UP VOLTAGE (V) I (m A) Min I (m A) Max TEST POINT DC DRIVE POINT AC DRIVE POINT NOTES: CURRENT (m A) 1. Driver impedance @ 1.65 V = 15.9 to 44.6 Ω. 2. Meets the temperature and voltage range spec...
Page 11 TA /W IT KH KL LK LK 0, LK (A ES S) AD SP BU ST AP AR X1 X2 AD SP , A LQ ES IG ED ES EL EC TE SI LE EA BU ST EA BU ST IT SI LE EA ot e: lo lo nd /o nd lo MOTOROLA FAST SRAM MCM64PC32•MCM64PC64
Page 12 TAG RAM AC OPERATING CONDITIONS AND CHARACTERISTICS (VDD = 3.3 V ± 0.3 V, TJ = 20 to + 110°C, Unless Otherwise Noted) Input Timing Measurement Reference Level 1.5 V. . . . . . . . . . . . . . . Output...
Page 13 TAG RAM WRITE CYCLE (See Notes 1 and 2) Parameter Symbol Min Max Unit Notes Write Cycle Time t AVAV ns Address Setup Time t AVWL ns Address Valid to End of Write t AVWH ns Data Valid to End of Write t...
Page 14 ORDERING INFORMATION (Order by Full Part Number) 64PC32 MCM 64PC64 XX XX Motorola Memory Prefix Speed (66 = 66 MHz) Part Number Package (SG = Gold Pad SIMM) Full Part Number — MCM64PC32SG66 MCM64PC64S...
Page 15 PACKAGE DIMENSIONS 160–LEAD CARD EDGE MODULE CASE TBD NOTE 4 COMPONENT AREA MIN .285 inches, MAX .305 inches NOTE 4 AC –X– VIEW AB AA NOTE 5 NOTE 6 FRONT VIEW SIDE VIEW YL0.004 (0.1) ST NOTES: 1. DIME...
Page 16 How to reach us: USA EUROPE: Motorola Literature Distribution; JAPAN: Nippon Motorola Ltd.; Tatsumi–SPD–JLDC, Toshikatsu Otsuki, P.O. Box 20912; Phoenix, Arizona 85036. 1–800–441–2447 6F Seibu–Butsury...
