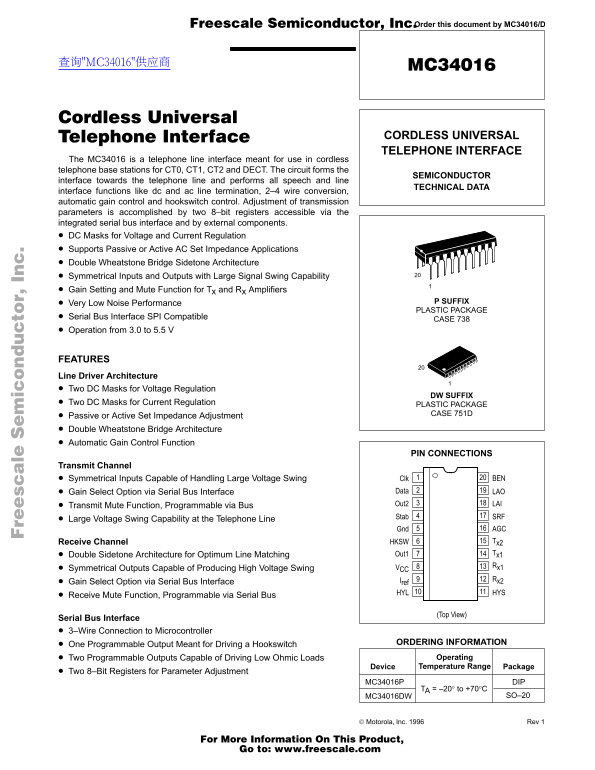

Motorola MC34016 Data Sheet

re sc le ic to r,

Freescale Semiconductor, Inc. Order this document by MC34016/D

查询"MC34016"供应商

CORDLESS UNIVERSAL TELEPHONE INTERFACE

The MC34016 is a telephone line interface meant for use in cordless telephone base stations for CT0, CT1, CT2 and DECT. The circuit forms the

SEMICONDUCTOR

interface towards the telephone line and performs all speech and line

TECHNICAL DATA

interface functions like dc and ac line termination, 2–4 wire conversion, automatic gain control and hookswitch control. Adjustment of transmission parameters is accomplished by two 8–bit registers accessible via the integrated serial bus interface and by external components. DC Masks for Voltage and Current Regulation Supports Passive or Active AC Set Impedance Applications Double Wheatstone Bridge Sidetone Architecture Symmetrical Inputs and Outputs with Large Signal Swing Capability Gain Setting and Mute Function for Tx and Rx Amplifiers

Very Low Noise Performance P SUFFIX PLASTIC PACKAGE

Serial Bus Interface SPI Compatible

CASE 738

Operation from 3.0 to 5.5 V

FEATURES Line Driver Architecture Two DC Masks for Voltage Regulation

DW SUFFIX

Two DC Masks for Current Regulation

PLASTIC PACKAGE CASE 751D

Passive or Active Set Impedance Adjustment Double Wheatstone Bridge Architecture Automatic Gain Control Function

PIN CONNECTIONS

Transmit Channel

Symmetrical Inputs Capable of Handling Large Voltage Swing Clk BEN

Gain Select Option via Serial Bus Interface Data LAO Transmit Mute Function, Programmable via Bus Out2 LAI

Stab SRF

Large Voltage Swing Capability at the Telephone Line

Gnd AGC

Receive Channel HKSW Tx2 Double Sidetone Architecture for Optimum Line Matching Out1 Tx1 VCC Rx1

Symmetrical Outputs Capable of Producing High Voltage Swing

Iref Rx2

Gain Select Option via Serial Bus Interface

1110HYL HYS

Receive Mute Function, Programmable via Serial Bus

(Top View)

Serial Bus Interface 3–Wire Connection to Microcontroller

One Programmable Output Meant for Driving a Hookswitch ORDERING INFORMATION

Two Programmable Outputs Capable of Driving Low Ohmic Loads Operating Device Temperature Range Package

Two 8–Bit Registers for Parameter Adjustment

MC34016P DIP

TA = –20° to +70°C

MC34016DW SO–20

Motorola, Inc. 1996 Rev 1
