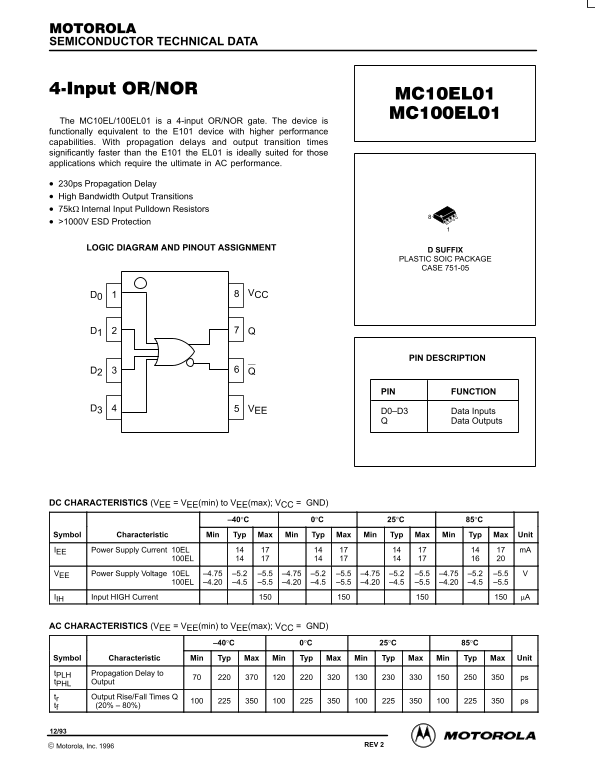

Motorola MC10EL01 MC100EL01 Data Sheet

SEMICONDUCTOR TECHNICAL DATA

The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101 the EL01 is ideally suited for those applications which require the ultimate in AC performance.

230ps Propagation Delay High Bandwidth Output Transitions 75kΩ Internal Input Pulldown Resistors >1000V ESD Protection

LOGIC DIAGRAM AND PINOUT ASSIGNMENT

D SUFFIX PLASTIC SOIC PACKAGE CASE 751-05

8D0 VCC

PIN DESCRIPTION

PIN FUNCTION

D3 VEE

D0–D3 Data Inputs

Data Outputs

DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL m A

100EL

VEE Power Supply Voltage 10EL –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5

100EL –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5

IIH Input HIGH Current µA

AC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit t PLH Propagation Delay to

t PHL Output tr Output Rise/Fall Times Q

tf (20% – 80%)

3–1 REV 2 Motorola, Inc. 1996
