MOTOROLA BC846ALT1 Data Sheet

Summary

Discover high-performance NPN silicon transistors, ideal for powering various small-signal electronic circuits. This comprehensive technical datasheet is an essential resource detailing full electrical characteristics, thermal performance limits, and both ON/OFF operating curves. Whether you are a circuit designer or electronics engineer, this manual provides the precise parameters needed to select and validate components, ensuring reliable operation in analog and digital applications.

📄 Preview PAGE OF 6

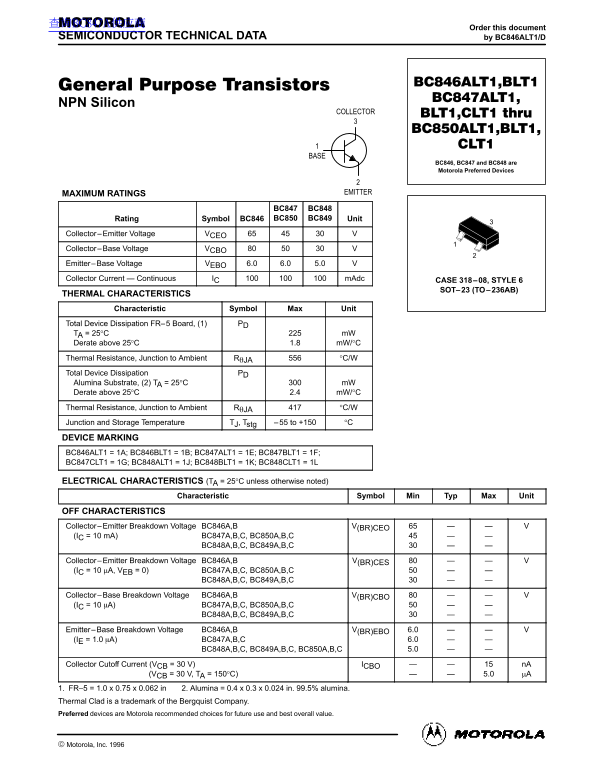

Page 1 Text Content

查询BC847A供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by BC846ALT1/D

NPN Silicon

COLLECTOR

BC846, BC847 and BC848 are Motorola Preferred Devices

MAXIMUM RATINGS EMITTER

BC847 BC848 Rating Symbol BC846 BC850 BC849 Unit

Collector–Emitter Voltage VCEO Collector–Base Voltage VCBO Emitter–Base Voltage VEBO 6.0 6.0 5.0 Collector Current — Continuous IC m Adc CASE 318–08, STYLE 6

SOT–23 (TO–236AB)

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Total Device Dissipation FR–5 Board, (1) PD TA = 25°C m W Derate above 25°C 1.8 m W/°C Thermal Resistance, Junction to Ambient RJA °C/W Total Device Dissipation PD Alumina Substrate, (2) TA = 25°C m W Derate above 25°C 2.4 m W/°C Thermal Resistance, Junction to Ambient RJA °C/W Junction and Storage Temperature TJ, Tstg –55 to +150 °C

DEVICE MARKING BC846ALT1 = 1A; BC846BLT1 = 1B; BC847ALT1 = 1E; BC847BLT1 = 1F; BC847CLT1 = 1G; BC848ALT1 = 1J; BC848BLT1 = 1K; BC848CLT1 = 1L

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage BC846A,B V(BR)CEO (IC = 10 m A) BC847A,B,C, BC850A,B,C

BC848A,B,C, BC849A,B,C

Collector–Emitter Breakdown Voltage BC846A,B V(BR)CES (IC = 10 µA, VEB = 0) BC847A,B,C, BC850A,B,C

BC848A,B,C, BC849A,B,C

Collector–Base Breakdown Voltage BC846A,B V(BR)CBO (IC = 10 A) BC847A,B,C, BC850A,B,C

BC848A,B,C, BC849A,B,C

Emitter–Base Breakdown Voltage BC846A,B V(BR)EBO 6.0

(IE = 1.0 A) BC847A,B,C 6.0 BC848A,B,C, BC849A,B,C, BC850A,B,C 5.0

Collector Cutoff Current (VCB = 30 V) ICBO n A

(VCB = 30 V, TA = 150°C) 5.0 µA

1. FR–5 = 1.0 x 0.75 x 0.062 in 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. Thermal Clad is a trademark of the Bergquist Company. Preferred devices are Motorola recommended choices for future use and best overall value.

1Motorola Small–Signal Transistors, FETs and Diodes Device Data

 Motorola, Inc. 1996

Page Summary Contents For MOTOROLA BC846ALT1 Data Sheet

Page 1 查询BC847A供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by BC846ALT1/D NPN Silicon COLLECTOR BC846, BC847 and BC848 are Motorola Preferred Devices MAXIMUM RATINGS EMITTER BC847 BC848 Rating Symbo...
Page 2 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Continued) Characteristic Symbol Min Typ Max Unit , C LL EC TO –E IT TE LT AG (V , N AL IZ ED EN AI ON CHARACTERISTICS DC Current Gain BC...
Page 3 BC847/BC848 , C LL EC TO –E IT TE LT AG (V LT S) , D EN AI (N AL IZ ED , C AP AC IT AN (p F) 7.0 TA = 25°C 5.0 Cib VCE = 10 V 3.0 TA = 25°C VR, REVERSE VOLTAGE (VOLTS) IC, COLLECTOR CURRENT (m Adc) Fi...
Page 4 BC846 , C AP AC IT AN (p F) TA = 25°C VCE = 5 V TA = 25°C 4.0 Cob VR, REVERSE VOLTAGE (VOLTS) IC, COLLECTOR CURRENT (m A) Figure 11. Capacitance Figure 12. Current–Gain – Bandwidth Product , C EN T– A...
Page 5 INFORMATION FOR USING THE SOT–23 SURFACE MOUNT PACKAGE MINIMUM RECOMMENDED FOOTPRINT FOR SURFACE MOUNTED APPLICATIONS Surface mount board layout is a critical portion of the total interface between th...
Page 6 PACKAGE DIMENSIONS NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE...

Manual Details

Brand Motorola
Pages 6
File Size 221.18 KB
Published June 04, 2026
21 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum rated continuous collector current ($I_C$) for these transistors?

The diagram and data sheet indicate that the standard rating for continuous $I_C$ across listed models is 100 mA.

Can I use this transistor in life support or surgical implantation devices?

No. Motorola states these products are not designed, intended, or authorized for use as components in systems intended to support or sustain life, or for surgical implants.

How must the device be derated if the operating temperature exceeds 25°C?

You must operate below the maximum dissipation values and apply the specified derating slopes (e.g., 1.8 mW/°C) as detailed in the thermal characteristics.

Do the listed 'Typical' electrical parameters apply directly to my final circuit design?

No. All operating parameters, including typical figures, must be validated and confirmed by your technical experts for each specific customer application.
