LINEAR TECHNOLOGY LTC3215 User's Manual
Summary
The LTC3215 is an advanced, low-noise DC/DC charge pump designed for efficiently powering high-current LEDs up to 700mA. It features automatic mode switching (1x, 1.5x, or 2x boost) within a wide voltage range (2.9V to 4.4V), critical for battery-powered devices. This manual provides comprehensive technical details on its operating characteristics, including ultralow dropout control, LED protection circuits, and soft-start management. It is ideally suited for portable applications such as camera flash units, handheld lighting systems, PDAs, and general battery-operated strobe/torch functions.
Page 1 Text Content

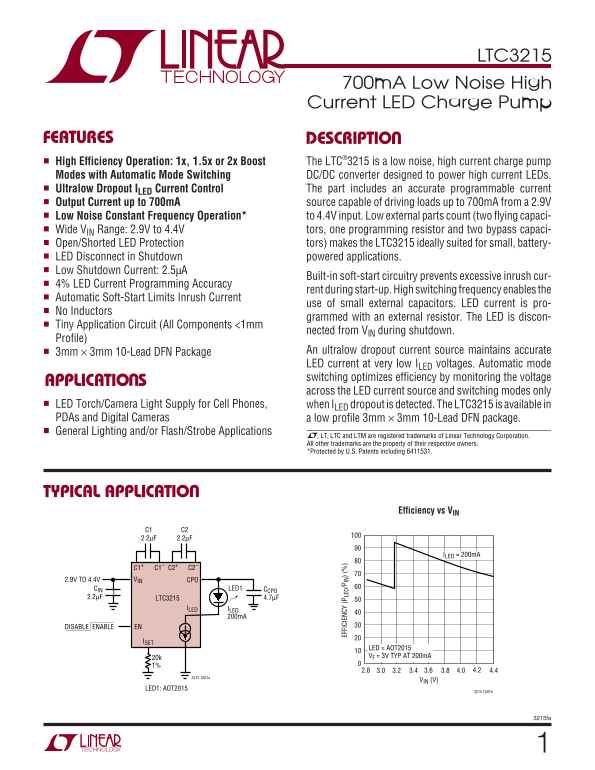

LTC3215
700m A Low Noise High Current LED Charge Pump
FEATURES DESCRIPTIO High Efficiency Operation: 1x, 1.5x or 2x Boost The LTC®3215 is a low noise, high current charge pump Modes with Automatic Mode Switching DC/DC converter designed to power high current LEDs.
Ultralow Dropout ILED Current Control The part includes an accurate programmable current
Output Current up to 700m A source capable of driving loads up to 700m A from a 2.9V
Low Noise Constant Frequency Operation* to 4.4V input. Low external parts count (two flying capaci- Wide VIN Range: 2.9V to 4.4V tors, one programming resistor and two bypass capaci- Open/Shorted LED Protection tors) makes the LTC3215 ideally suited for small, battery- LED Disconnect in Shutdown powered applications.
Low Shutdown Current: 2.5µA
Built-in soft-start circuitry prevents excessive inrush cur-
4% LED Current Programming Accuracy
rent during start-up. High switching frequency enables the
Automatic Soft-Start Limits Inrush Current
use of small external capacitors. LED current is pro-
No Inductors
grammed with an external resistor. The LED is discon-
Tiny Application Circuit (All Components <1mm
nected from VIN during shutdown.
Profile)
EF FI CI EN CY (P LE D/ N)
3mm × 3mm 10-Lead DFN Package An ultralow dropout current source maintains accurate LED current at very low ILED voltages. Automatic mode switching optimizes efficiency by monitoring the voltage
APPLICATIO S
across the LED current source and switching modes only
LED Torch/Camera Light Supply for Cell Phones, when ILED dropout is detected. The LTC3215 is available in PDAs and Digital Cameras a low profile 3mm × 3mm 10-Lead DFN package. General Lighting and/or Flash/Strobe Applications
, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. *Protected by U.S. Patents including 6411531.
TYPICAL APPLICATIO
Efficiency vs VIN
ILED = 200m A
C1+ C1– C2+ C2– VIN2.9V TO 4.4V CPO
CIN LED1 CCPO
2.2µF LTC3215 4.7µF
ILED ILED
ENDISABLE ENABLE
LED = AOT2015 20k VF = 3V TYP AT 200m A
3215 TA01a
VIN (V)
LED1: AOT2015
3215 TA01b
3215fa
