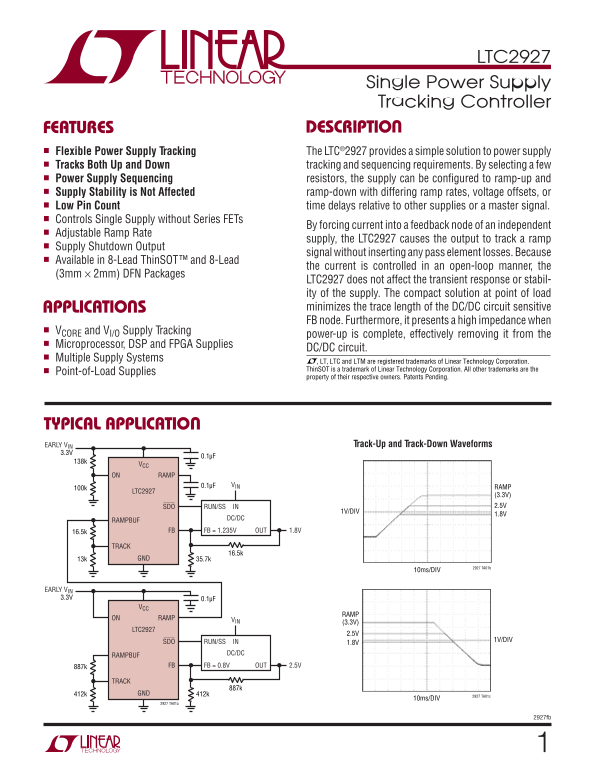

LTC2927
Single Power Supply Tracking Controller FEATURES DESCRIPTIO
n Flexible Power Supply Tracking The LTC®2927 provides a simple solution to power supply n Tracks Both Up and Down tracking and sequencing requirements. By selecting a few n Power Supply Sequencing resistors, the supply can be confi gured to ramp-up and n Supply Stability is Not Affected ramp-down with differing ramp rates, voltage offsets, or n Low Pin Count time delays relative to other supplies or a master signal. n Controls Single Supply without Series FETs
By forcing current into a feedback node of an independent
n Adjustable Ramp Rate
supply, the LTC2927 causes the output to track a ramp
n Supply Shutdown Output
signal without inserting any pass element losses. Because
n Available in 8-Lead Thin SOT™ and 8-Lead
the current is controlled in an open-loop manner, the
(3mm × 2mm) DFN Packages
LTC2927 does not affect the transient response or stabil- ity of the supply. The compact solution at point of load APPLICATIO minimizes the trace length of the DC/DC circuit sensitive FB node. Furthermore, it presents a high impedance when
n VCORE and VI/O Supply Tracking
power-up is complete, effectively removing it from the
n Microprocessor, DSP and FPGA Supplies
DC/DC circuit.
n Multiple Supply Systems
, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. n Point-of-Load Supplies Thin SOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Patents Pending.
TYPICAL APPLICATIO
EARLY VIN Track-Up and Track-Down Waveforms
VCC ON RAMP
0.1μF VIN
100k RAMP
LTC2927
(3.3V) SDO RUN/SS IN 2.5V 1.8V1V/DIV
DC/DC
RAMPBUF
16.5k FB FB = 1.235V OUT 1.8V
TRACK
GND 35.7k13k
2927 TA01b10ms/DIV
EARLY VIN 3.3V 0.1μF
ON RAMP VIN
LTC2927
1V/DIV
SDO RUN/SS IN 1.8V
DC/DC
RAMPBUF
887k FB FB = 0.8V OUT 2.5V
TRACK
GND 412k412k
2927 TA01c10ms/DIV
2927 TA01a
2927fb
