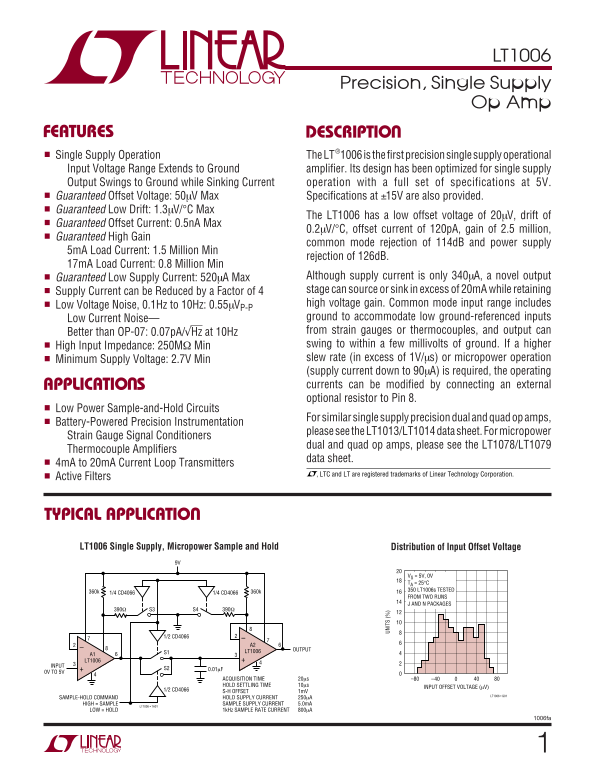

LINEAR TECHNOLOGY LT1006 Data Sheet Manual

LT1006

Precision, Single Supply

Op Amp

FEATURES DESCRIPTIO Single Supply Operation The LT®1006 is the first precision single supply operational Input Voltage Range Extends to Ground amplifier. Its design has been optimized for single supply Output Swings to Ground while Sinking Current operation with a full set of specifications at 5V.

Guaranteed Offset Voltage: 50µV Max Specifications at ±15V are also provided.

Guaranteed Low Drift: 1.3µV/°C Max

The LT1006 has a low offset voltage of 20µV, drift of

Guaranteed Offset Current: 0.5n A Max

0.2µV/°C, offset current of 120p A, gain of 2.5 million,

Guaranteed High Gain

common mode rejection of 114d B and power supply

5m A Load Current: 1.5 Million Min

rejection of 126d B.

17m A Load Current: 0.8 Million Min

Guaranteed Low Supply Current: 520µA Max Although supply current is only 340µA, a novel output Supply Current can be Reduced by a Factor of 4 stage can source or sink in excess of 20m A while retaining Low Voltage Noise, 0.1Hz to 10Hz: 0.55µVP-P high voltage gain. Common mode input range includes Low Current Noise— ground to accommodate low ground-referenced inputs Better than OP-07: 0.07p A/√Hz at 10Hz from strain gauges or thermocouples, and output can High Input Impedance: 250MΩ Min swing to within a few millivolts of ground. If a higher Minimum Supply Voltage: 2.7V Min slew rate (in excess of 1V/µs) or micropower operation (supply current down to 90µA) is required, the operating APPLICATIO S UN IT currents can be modified by connecting an external optional resistor to Pin 8.

Low Power Sample-and-Hold Circuits

For similar single supply precision dual and quad op amps,

Battery-Powered Precision Instrumentation

please see the LT1013/LT1014 data sheet. For micropower

Strain Gauge Signal Conditioners

dual and quad op amps, please see the LT1078/LT1079

Thermocouple Amplifiers

data sheet.

4m A to 20m A Current Loop Transmitters

, LTC and LT are registered trademarks of Linear Technology Corporation.

Active Filters

TYPICAL APPLICATIO LT1006 Single Supply, Micropower Sample and Hold Distribution of Input Offset Voltage

VS = 5V, 0V TA = 25°C 360k 360k1/4 CD4066 350 LT1006s TESTED

1/4 CD4066

FROM TWO RUNS J AND N PACKAGES

1/2 CD4066

LT1006 OUTPUT

A1 LT1006

INPUT

0V TO 5V

ACQUISITION TIME 20µs –80 –40 HOLD SETTLING TIME 10µs

INPUT OFFSET VOLTAGE (µV)

1/2 CD4066 S-H OFFSET 1m V

LT1006 • G01

SAMPLE-HOLD COMMAND HOLD SUPPLY CURRENT 250µA HIGH = SAMPLE SAMPLE SUPPLY CURRENT 5.0m A

LT1006 • TA01

LOW = HOLD 1k Hz SAMPLE RATE CURRENT 800µA
