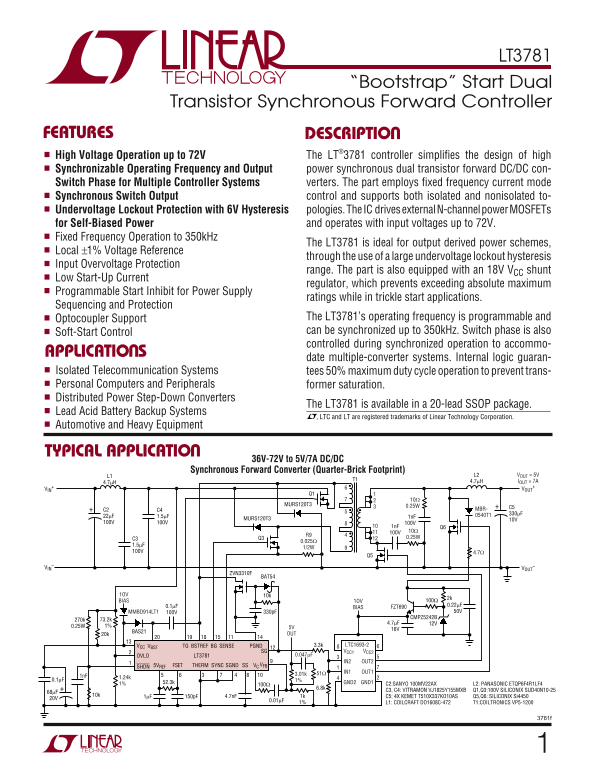

LINEAR TECHNOLOGY LT3781 Data Sheet
Summary
The LT3781 is a specialized synchronous forward controller designed for high-voltage DC/DC power conversion. This integrated circuit simplifies complex power stage designs by supporting programmable frequencies up to 350kHz, self-biased operation, and various protection features (UVLO, OVP). The manual provides comprehensive technical specifications, electrical characteristics, pin diagrams, and application circuits needed for implementation. It is ideal for professional engineers designing robust power systems in demanding fields such as personal computing, data center peripherals, distributed step-down converters, and automotive/heavy equipment applications.
Manual Details
| Brand | Linear |
|---|---|
| Pages | 20 |
| File Size | 249.04 KB |
| Published | June 02, 2026 |
