This low power, high-speed operational amplifier delivers 80MHz bandwidth with full rail-to-rail input and output capabilities. Built for precision signal processing in challenging environments, the LT1800 maintains exceptional performance across a wide supply voltage range (2.3V to 12.6V). The manual provides comprehensive electrical specifications, including detailed measurements for A/D converters, active filters, video line drivers, and other low-voltage high-frequency applications.

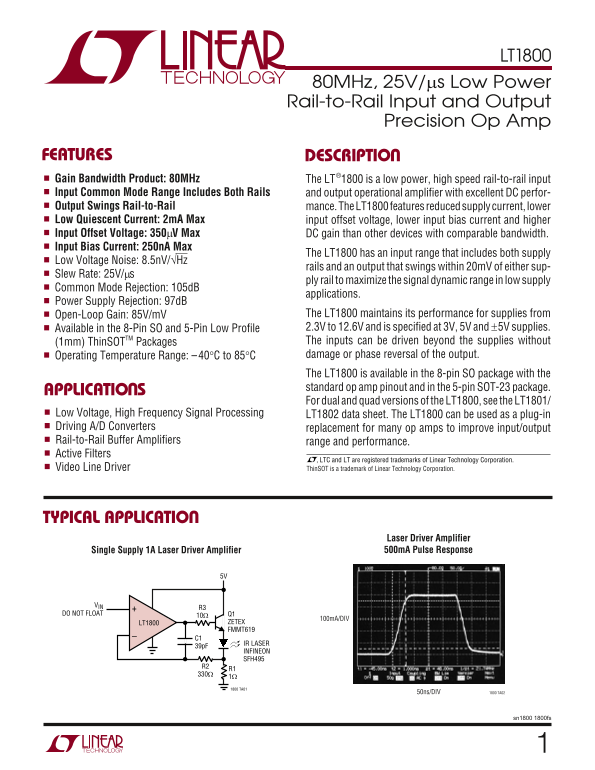

Page 1 Text Content
LT1800
80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amp
FEATURES DESCRIPTIO Gain Bandwidth Product: 80MHz The LT®1800 is a low power, high speed rail-to-rail input Input Common Mode Range Includes Both Rails and output operational amplifier with excellent DC perfor- Output Swings Rail-to-Rail mance. The LT1800 features reduced supply current, lower Low Quiescent Current: 2m A Max input offset voltage, lower input bias current and higher Input Offset Voltage: 350µV Max DC gain than other devices with comparable bandwidth. Input Bias Current: 250n A Max
The LT1800 has an input range that includes both supply
Low Voltage Noise: 8.5n V/√Hz
rails and an output that swings within 20m V of either sup-
Slew Rate: 25V/µs
ply rail to maximize the signal dynamic range in low supply
Common Mode Rejection: 105d B
applications.
Power Supply Rejection: 97d B
Open-Loop Gain: 85V/m V The LT1800 maintains its performance for supplies from Available in the 8-Pin SO and 5-Pin Low Profile 2.3V to 12.6V and is specified at 3V, 5V and ±5V supplies. (1mm) Thin SOTTM Packages The inputs can be driven beyond the supplies without Operating Temperature Range: –40°C to 85°C damage or phase reversal of the output. The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin SOT-23 package.
APPLICATIO S
For dual and quad versions of the LT1800, see the LT1801/
Low Voltage, High Frequency Signal Processing LT1802 data sheet. The LT1800 can be used as a plug-in Driving A/D Converters replacement for many op amps to improve input/output Rail-to-Rail Buffer Amplifiers range and performance. Active Filters
, LTC and LT are registered trademarks of Linear Technology Corporation.
Video Line Driver Thin SOT is a trademark of Linear Technology Corporation.
TYPICAL APPLICATIO
Laser Driver Amplifier Single Supply 1A Laser Driver Amplifier 500m A Pulse Response
DO NOT FLOAT Q1
100m A/DIV
LT1800 ZETEX FMMT619
IR LASER
INFINEON SFH495
1800 TA01
50ns/DIV 1800 TA02
sn1800 1800fs
