LINEAR TECHNOLOGY LT1236 Data Sheet User Manual
Summary
The LT1236 is a high-precision voltage reference designed for demanding analog applications requiring extreme accuracy and stability. This resource details the full technical specifications, including ultra-low temperature coefficients (down to 5ppm/°C), noise rejection, and operation in both series and shunt modes. It covers electrical characteristics, various package options, typical application circuits, and operating parameters—making it essential for electronics engineers designing precision instrumentation, data acquisition systems, or navigation equipment.

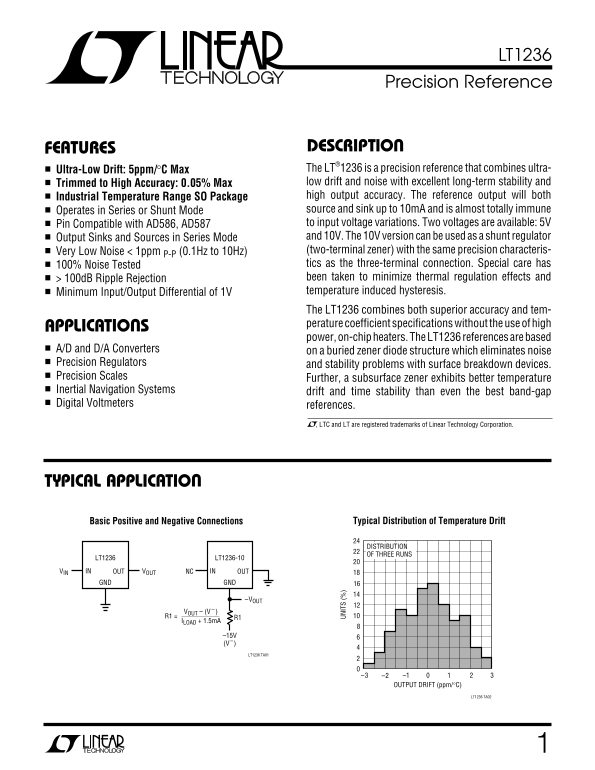

Page 1 Text Content
LT1236
Precision Reference
SFEATURE ESCRIPTIO Ultra-Low Drift: 5ppm/°C Max The LT®1236 is a precision reference that combines ultra- Trimmed to High Accuracy: 0.05% Max low drift and noise with excellent long-term stability and Industrial Temperature Range SO Package high output accuracy. The reference output will both Operates in Series or Shunt Mode source and sink up to 10m A and is almost totally immune Pin Compatible with AD586, AD587 to input voltage variations. Two voltages are available: 5V Output Sinks and Sources in Series Mode and 10V. The 10V version can be used as a shunt regulator Very Low Noise < 1ppm P-P (0.1Hz to 10Hz) (two-terminal zener) with the same precision characteris- 100% Noise Tested tics as the three-terminal connection. Special care has > 100d B Ripple Rejection been taken to minimize thermal regulation effects and Minimum Input/Output Differential of 1V temperature induced hysteresis. The LT1236 combines both superior accuracy and tem- perature coefficient specifications without the use of high
PPLICATI SA
power, on-chip heaters. The LT1236 references are based
UN IT
A/D and D/A Converters on a buried zener diode structure which eliminates noise Precision Regulators and stability problems with surface breakdown devices. Precision Scales Further, a subsurface zener exhibits better temperature Inertial Navigation Systems drift and time stability than even the best band-gap Digital Voltmeters references.
, LTC and LT are registered trademarks of Linear Technology Corporation.
PPLICATITYPICAL
Typical Distribution of Temperature Drift Basic Positive and Negative Connections
DISTRIBUTION OF THREE RUNS
LT1236 LT1236-10
VIN OUT IN VOUT NC OUT IN
GND GND
–VOUT
VOUT – (V R1 = R1 ILOAD + 1.5m A
–15V –) (V LT1236 TA01
–3 –2 –1 OUTPUT DRIFT (ppm/°C)
LT1236 TA02
Page Summary Contents For LINEAR TECHNOLOGY LT1236 Data Sheet User Manual
Manual Details
| Brand | Linear |
|---|---|
| Pages | 12 |
| File Size | 264.42 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum temperature coefficient drift of the LT1236?
The output voltage temperature coefficients vary by model, ranging from 2 ppm/°C for the A-series to 15 ppm/°C for the C-series.
Does it support both Series and Shunt operating modes?
Yes, the device is almost totally immune to input voltage variations and can function in either Series Mode (two-terminal zener) or Shunt Mode.
What are the maximum input/output voltage differential limits?
The LT1236 supports a high Input/Output Voltage Differential of 35V, with an output short-circuit duration up to 10 seconds.
What is the minimum detectable noise level for the output?
For frequencies between 0.1Hz and 10Hz, the output voltage noise is specified as low as 3.0 microvolt P-P.
