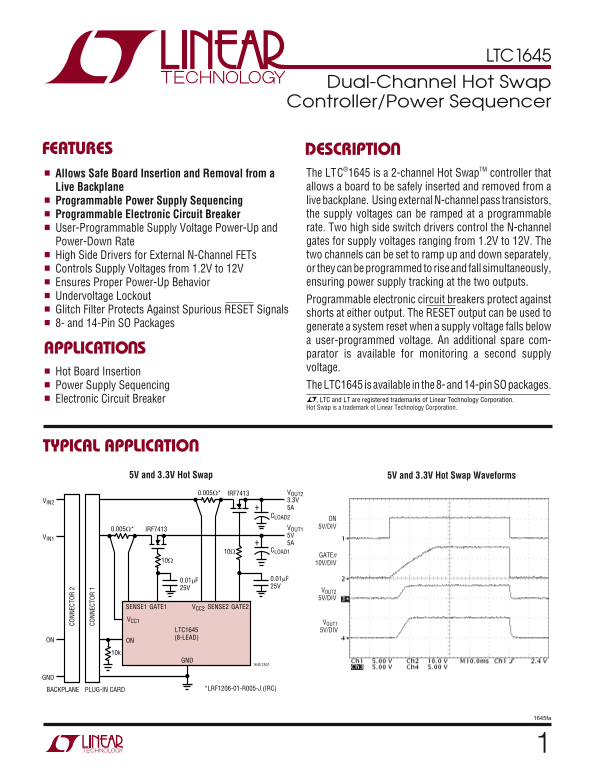

LTC1645
CO NN EC TO
Dual-Channel Hot Swap
CO NN EC TO
Controller/Power Sequencer
FEATURES DESCRIPTIO
Allows Safe Board Insertion and Removal from a The LTC®1645 is a 2-channel Hot Swap TM controller that Live Backplane allows a board to be safely inserted and removed from a Programmable Power Supply Sequencing live backplane. Using external N-channel pass transistors, Programmable Electronic Circuit Breaker the supply voltages can be ramped at a programmable User-Programmable Supply Voltage Power-Up and rate. Two high side switch drivers control the N-channel Power-Down Rate gates for supply voltages ranging from 1.2V to 12V. The High Side Drivers for External N-Channel FETs two channels can be set to ramp up and down separately, Controls Supply Voltages from 1.2V to 12V or they can be programmed to rise and fall simultaneously, Ensures Proper Power-Up Behavior ensuring power supply tracking at the two outputs.
Undervoltage Lockout
Programmable electronic circuit breakers protect against
Glitch Filter Protects Against Spurious RESET Signals
shorts at either output. The RESET output can be used to
8- and 14-Pin SO Packages
generate a system reset when a supply voltage falls below a user-programmed voltage. An additional spare com-
APPLICATIO S
parator is available for monitoring a second supply voltage.
Hot Board Insertion
Power Supply Sequencing The LTC1645 is available in the 8- and 14-pin SO packages. Electronic Circuit Breaker , LTC and LT are registered trademarks of Linear Technology Corporation. Hot Swap is a trademark of Linear Technology Corporation.
TYPICAL APPLICATIO
5V and 3.3V Hot Swap 5V and 3.3V Hot Swap Waveforms
IRF74130.005Ω* VOUT2 VIN2 3.3V 5A CLOAD2
ON VOUT1 5V/DIV
0.005Ω* IRF7413
VIN1 5V 5A 10Ω CLOAD1
GATEn
10V/DIV
VOUT2 5V/DIV
SENSE1 VCC2GATE1 SENSE2 GATE2
VOUT1
LTC1645 5V/DIV (8-LEAD)
ON ON
1645 TA01
PLUG-IN CARDBACKPLANE *LRF1206-01-R005-J (IRC)
1645fa
