LTC4218
Hot Swap Controller
FEATURES DESCRIPTION ■ Wide Operating Voltage Range: 2.9V to 26.5V
The LTC®4218 is a Hot Swap™ controller that allows a board
■ Adjustable, 5% Accurate (15m V) Current Limit
to be safely inserted and removed from a live backplane.
■ Current Monitor Output
An internal high side switch driver controls the gate of an
■ Adjustable Current Limit Timer Before Fault
external N-channel MOSFET for supply voltages from 2.9V
■ Powergood and Fault Outputs
to 26.5V. A dedicated 12V version (LTC4218-12) contains
■ Adjustable Inrush Current Control
preset 12V specifi c thresholds, while the standard LTC4218
■ 2% Accurate Undervoltage and Overvoltage
allows adjustable thresholds.
Protection
The LTC4218 provides an accurate (5%) current limit with
■ Available in 16-Lead SSOP and 16-Pin 5mm × 3mm
current foldback limiting. The current limit threshold can
DFN Packages
be adjusted dynamically using an external pin. Additional features include a current monitor output that amplifi es
APPLICATIONS the sense voltage for ground referenced current sensing.
Overvoltage, undervoltage and powergood monitoring
■ RAID Systems
are also provided.
■ ATCA, AMC, μTCA Systems
■ Server I/O Cards , LT, LTC and LTM are registered trademarks of Linear Technology Corporation. Hot Swap is a trademark of Linear Technology Corporation. All other trademarks are the
■ Industrial property of their respective owners.
TYPICAL APPLICATION

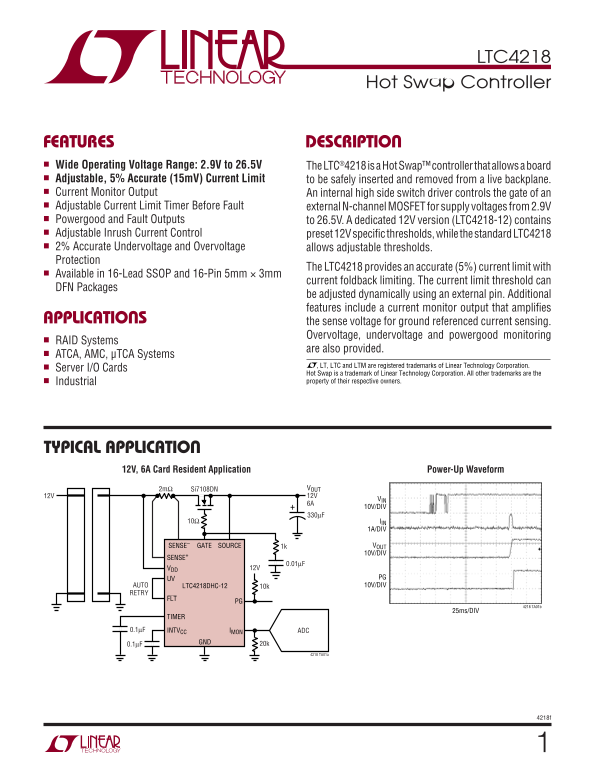

12V, 6A Card Resident Application Power-Up Waveform
2mΩ Si7108DN VOUT 12V 12V
10V/DIV
10Ω IIN
1A/DIV
SENSE– GATE SOURCE 1k VOUT 10V/DIV
SENSE+
VDD 12V
UV PG LTC4218DHC-12 10k AUTO 10V/DIV
RETRY
4218 TA01b
25ms/DIV
TIMER
0.1μF INTVCC IMON ADC
GND 20k
4218 TA01a
