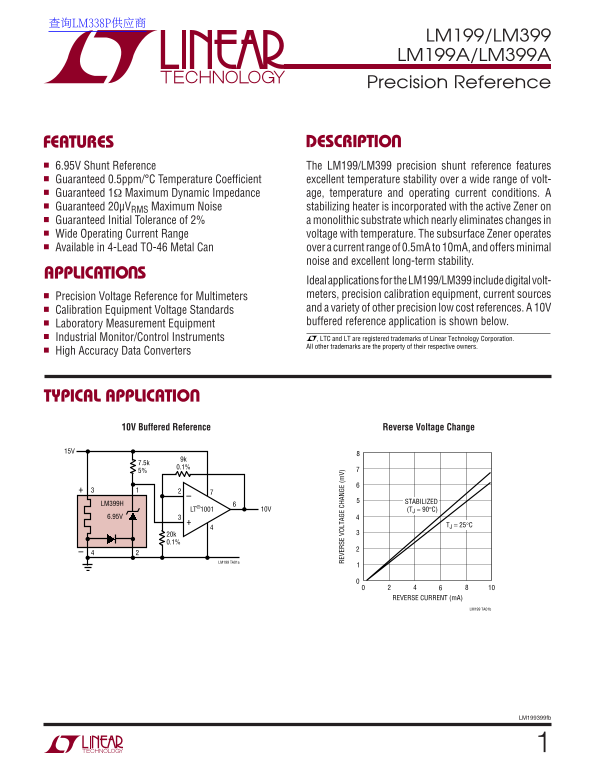

LM199/LM399 LM199A/LM399A Precision Reference

FEATURES DESCRIPTIO

■ 6.95V Shunt Reference The LM199/LM399 precision shunt reference features ■ Guaranteed 0.5ppm/°C Temperature Coeffi cient excellent temperature stability over a wide range of volt- ■ Guaranteed 1Ω Maximum Dynamic Impedance age, temperature and operating current conditions. A ■ Guaranteed 20µVRMS Maximum Noise stabilizing heater is incorporated with the active Zener on ■ Guaranteed Initial Tolerance of 2% a monolithic substrate which nearly eliminates changes in ■ Wide Operating Current Range voltage with temperature. The subsurface Zener operates ■ Available in 4-Lead TO-46 Metal Can over a current range of 0.5m A to 10m A, and offers minimal

noise and excellent long-term stability.

APPLICATIO S

Ideal applications for the LM199/LM399 include digital volt- ■ Precision Voltage Reference for Multimeters meters, precision calibration equipment, current sources ■ Calibration Equipment Voltage Standards and a variety of other precision low cost references. A 10V ■ Laboratory Measurement Equipment buffered reference application is shown below.

■ Industrial Monitor/Control Instruments

, LTC and LT are registered trademarks of Linear Technology Corporation.

RE VE RS VO LT AG CH AN GE (m V)

All other trademarks are the property of their respective owners.

■ High Accuracy Data Converters

TYPICAL APPLICATIO

10V Buffered Reference Reverse Voltage Change

LM399H STABILIZED

LT®1001 10V (TJ ≈ 90°C)

TJ = 25°C

LM199 TA01a

REVERSE CURRENT (m A)

LM199 TA01b

LM199399fb
