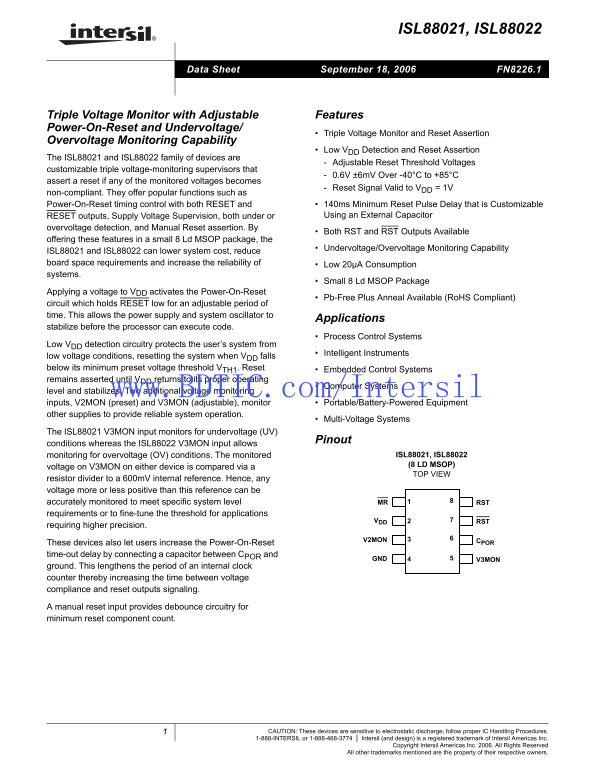

Page 1 Text Content
ISL88021, ISL88022
Data Sheet September 18, 2006 FN8226.1
Triple Voltage Monitor with Adjustable Features Power-On-Reset and Undervoltage/
Triple Voltage Monitor and Reset Assertion
Overvoltage Monitoring Capability
Low VDD Detection and Reset Assertion
The ISL88021 and ISL88022 family of devices are
Adjustable Reset Threshold Voltages
customizable triple voltage-monitoring supervisors that
0.6V ±6m V Over -40°C to +85°C
assert a reset if any of the monitored voltages becomes
Reset Signal Valid to VDD = 1V
non-compliant. They offer popular functions such as Power-On-Reset timing control with both RESET and 140ms Minimum Reset Pulse Delay that is Customizable
RESET outputs, Supply Voltage Supervision, both under or Using an External Capacitor
overvoltage detection, and Manual Reset assertion. By
Both RST and RST Outputs Available
offering these features in a small 8 Ld MSOP package, the
Undervoltage/Overvoltage Monitoring Capability
ISL88021 and ISL88022 can lower system cost, reduce board space requirements and increase the reliability of Low 20µA Consumption systems.
Small 8 Ld MSOP Package
Applying a voltage to VDD activates the Power-On-Reset
Pb-Free Plus Anneal Available (Ro HS Compliant)
circuit which holds RESET low for an adjustable period of time. This allows the power supply and system oscillator to
Applications
stabilize before the processor can execute code.
Process Control Systems
Low VDD detection circuitry protects the user’s system from
Intelligent Instruments
low voltage conditions, resetting the system when VDD falls below its minimum preset voltage threshold VTH1. Reset Embedded Control Systems remains asserted until VDD returns to its proper operating
Computer Systems
level and stabilizes. Two additional voltage monitoring w.BDTIC.com/Intersil inputs, V2MON (preset) and V3MON (adjustable), monitor Portable/Battery-Powered Equipment other supplies to provide reliable system operation.
Multi-Voltage Systems
The ISL88021 V3MON input monitors for undervoltage (UV)
Pinout
conditions whereas the ISL88022 V3MON input allows
monitoring for overvoltage (OV) conditions. The monitored ISL88021, ISL88022 (8 LD MSOP)
voltage on V3MON on either device is compared via a
TOP VIEW
resistor divider to a 600m V internal reference. Hence, any voltage more or less positive than this reference can be accurately monitored to meet specific system level MR RST requirements or to fine-tune the threshold for applications
VDD RST
requiring higher precision.
V2MON CPOR
These devices also let users increase the Power-On-Reset time-out delay by connecting a capacitor between CPOR and
GND V3MON
ground. This lengthens the period of an internal clock counter thereby increasing the time between voltage compliance and reset outputs signaling.
A manual reset input provides debounce circuitry for minimum reset component count.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
