IDEC UP (Test Report) Technical Document
Summary
The UP Series Pilot Lights are miniature indicators available in various sizes ($\text{ø}6-\text{ø}10$) for industrial control systems. These reliable lights operate with built-in current limiting or exposed resistor types to meet diverse electrical needs. This documentation confirms that the product adheres to stringent international safety and performance standards (including IP4X/IP6X ratings, UL508, and EN 60947-5-1). Ideal for professional engineers and facilities managers requiring high durability across extreme temperature variations ($\text{-}20^\circ\text{C}$ to $+80^\circ\text{C}$).
Page 1 Text Content

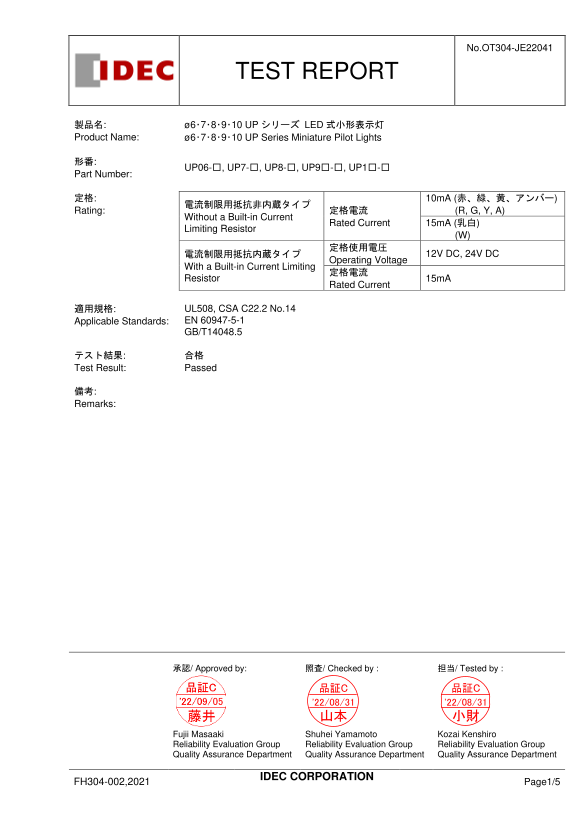

No.OT304-JE22041
TEST REPORT
製品名: ø6･7･8･9･10 UP シリーズ LED 式小形表示灯 Product Name: ø6･7･8･9･10 UP Series Miniature Pilot Lights
UP06-□, UP7-□, UP8-□, UP9□-□, UP1□-□
Part Number:
Rating: 定格電流 (R, G, Y, A)
Without a Built-in Current
Rated Current 15m A (乳白)
Limiting Resistor
電流制限用抵抗内蔵タイプ 12V DC, 24V DC
Operating Voltage
With a Built-in Current Limiting
Resistor 15m A
Rated Current
適用規格: UL508, CSA C22.2 No.14
Applicable Standards: EN 60947-5-1 GB/T14048.5
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Fujii Masaaki Shuhei Yamamoto Kozai Kenshiro
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/5
