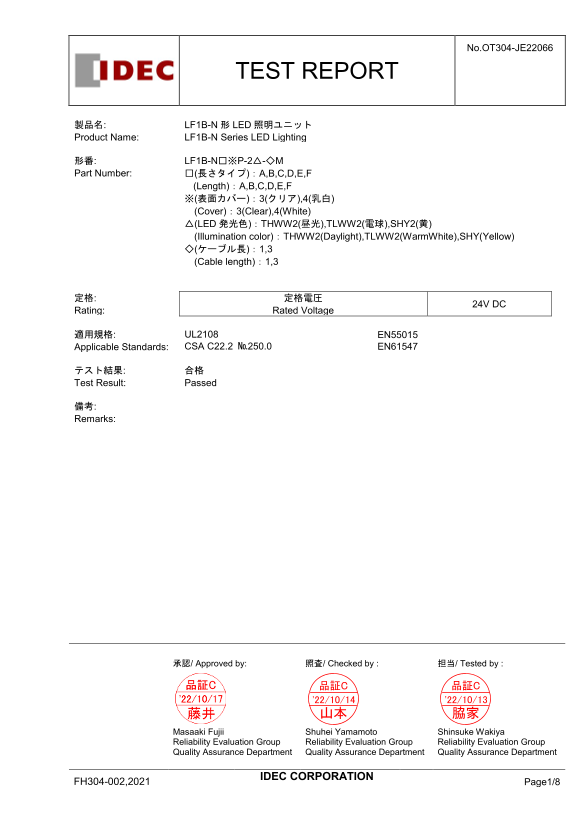

IDEC LF1B Test Report Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22066

TEST REPORT

製品名: LF1B-N LED 照明ユニット Product Name: LF1B-N Series LED Lighting

形番: LF1B-N□※P-2△-◇M Part Number: □(長さタイプ)：A,B,C,D,E,F

(Length)：A,B,C,D,E,F ※(表面カバー)：3(クリア),4(乳白) (Cover)：3(Clear),4(White) △(LED 発光色)：THWW2(昼光),TLWW2(電球),SHY2(黄) (Illumination color)：THWW2(Daylight),TLWW2(Warm White),SHY(Yellow) ◇(ケーブル長)：1,3 (Cable length)：1,3

24V DC

Rating: Rated Voltage

適用規格: UL2108 EN55015

CSA C22.2 №250.0 EN61547 Applicable Standards:

テスト結果: 合格 Test Result: Passed

備考: Remarks:

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Shuhei Yamamoto Shinsuke Wakiya

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/8

Page Summary Contents For IDEC LF1B Test Report Technical Document

Page 1 No.OT304-JE22066 TEST REPORT 製品名: LF1B-N LED 照明ユニット Product Name: LF1B-N Series LED Lighting 形番: LF1B-N□※P-2△-◇M Part Number: □(長さタイプ)：A,B,C,D,E,F (Length)：A,B,C,D,E,F ※(表面カバー)：3(クリア),4(乳白) (Cover)：3(...

Page 2 TEST REPORT No.OT304-JE22066 1.対象型番型番発光色表面カバー使用電圧 Part Number: Illumination color Cover Rated Voltage LF1B-NA3P-2THWW2-◇M Daylight 電球色クリア LF1B-NA3P-2TLWW2-◇M Warm White Clear 黄色 LF1B-NA3P-2SHY2-◇...

Page 3 TEST REPORT No.OT304-JE22066 型番発光色表面カバー使用電圧 Part Number: Illumination color Cover Rated Voltage LF1B-NE3P-2SHY2-◇M Yellow Clear 昼光色 LF1B-NE4P-2THWW2-◇M Daylight 電球色乳白 LF1B-NE4P-2TLWW2-◇M Warm Whit...

Page 4 TEST REPORT No.OT304-JE22066 2.試験結果 Test Results 結果/Result 適用規格/Applicable Standards Test Items 入力電流合格 1.1. Current Consumption Passed 照度(参考) 合格 1.2. Illuminance (reference) Passed 絶縁抵抗合格 JIS C 8105...

Page 5 TEST REPORT No.OT304-JE22066 3.試験結果 Test Result 試験項目試験方法/結果 Test Items Test Method and Result 方法入力電圧：24V DC Method Input Voltage:24V DC 入力電流判定基準表参照. 1.1. Current Consumption Criteria See Table 1 ...

Page 6 TEST REPORT No.OT304-JE22066 Result Passed 試験項目試験方法/結果 Test Items Test Method and Result Method Temperature: -35°C (no freezing) 保管耐寒 Duration: 96h Storage Low Temperature 判定基準破損無きこと。 Criteria No da...

Page 7 TEST REPORT No.OT304-JE22066 試験項目試験方法/結果 Test Items Test Method and Result 方法加速度: 1000 m/s2（LF1B-NA,LF1B-NB,LF1B-NC,LF1B-ND） 300 m/s2（LF1B-NE,LF1B-NF） Method Acceleration:1000m/s2(LF1B-NA,LF1B-NB,LF...

Page 8 TEST REPORT No.OT304-JE22066 Table.1 Current consumption（Unit:m A）発光色 LF1B-NA LF1B-NB LF1B-NC LF1B-ND LF1B-NE LF1B-NF Illumination color 昼光色/電球色 60 typ. 120 typ. 180 typ. 360 typ. 540 typ. 720 typ. D...

Manual Details

Brand	IDEC
Pages	8
File Size	359.08 KB
Published	June 03, 2026

29 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the rated operational voltage for the unit?

The rated voltage is 24V DC.

What are the supported temperature extremes?

It tested successfully from -30°C (Operating Low Temperature) up to +55°C (Operating High Temperature).

Does the unit meet dust and water protection standards?

Yes, it passed IP6X for dust prevention and IPX5 against direct jets of water.

What is the minimum acceptable insulation resistance?

The required minimum standard for insulation resistance is 100MΩ以上.
