These highly reliable resin control enclosures are designed for severe industrial environments, providing robust protection for electrical components. Confirmed by comprehensive test reports detailing compliance with stringent standards, including IEC/EN 60529, UL508, and NEMA Type 1/4X. This manual confirms the product's resilience through extreme temperatures (low to high), humidity, dust ingress (IP6X), and severe water jetting. Ideal for system integrators and electrical engineers requiring code-compliant, durable enclosures suitable for demanding outdoor or industrial applications worldwide.

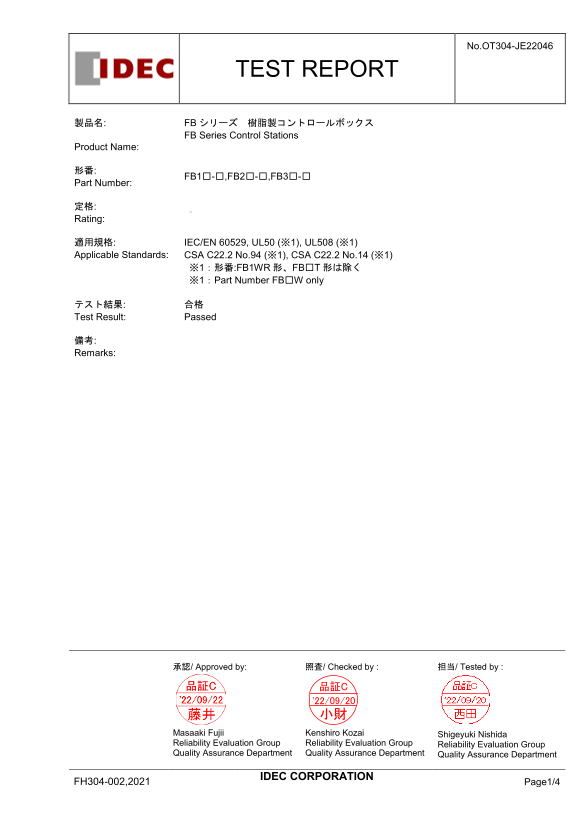

Page 1 Text Content
No.OT304-JE22046
TEST REPORT
製品名: FBシリーズ 樹脂製コントロールボックス
FB Series Control Stations
Product Name:
FB1□-□,FB2□-□,FB3□-□
Part Number:
定格: Rating:
適用規格: IEC/EN 60529, UL50 (※1), UL508 (※1) Applicable Standards: CSA C22.2 No.94 (※1), CSA C22.2 No.14 (※1)
※1：形番:FB1WR形、FB□T形は除く ※1：Part Number FB□W only
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Shigeyuki Nishida
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/4
Page Summary Contents For IDEC FB (Test Report) Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 4 |
| File Size | 296.20 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What protective standards and ratings do the FB series controls meet?
The units passed IEC/EN 60529, IPX5, NEMA Type 4X, and NEMA Type 1 protection levels, alongside UL50 and UL508.
What are the operating temperature limits for these control stations?
They successfully passed testing for operational low temperatures down to -25°C and high temperatures up to +60°C. They can also store items at +80°C.
Are all part numbers compatible with all applicable standards?
No, certain exclusions exist. The following types are excluded from some applicable standards: FB1WR形 and specific FB□T形 models.
