IDEC AGA (Test Report) Technical Document
Summary
Discover superior reliability with the AGA Series Control Stations, a comprehensive range of enclosed electrical cabinets designed for demanding industrial applications. This technical documentation provides exhaustive confirmation that these stations meet stringent global standards. The report validates performance across extreme temperature ranges, high humidity exposure, and various degrees of protection against dust and water ingress (IP rating compliance). Ideal for engineers and facility managers who require durable, certified enclosures for mission-critical control systems operating in harsh environments.

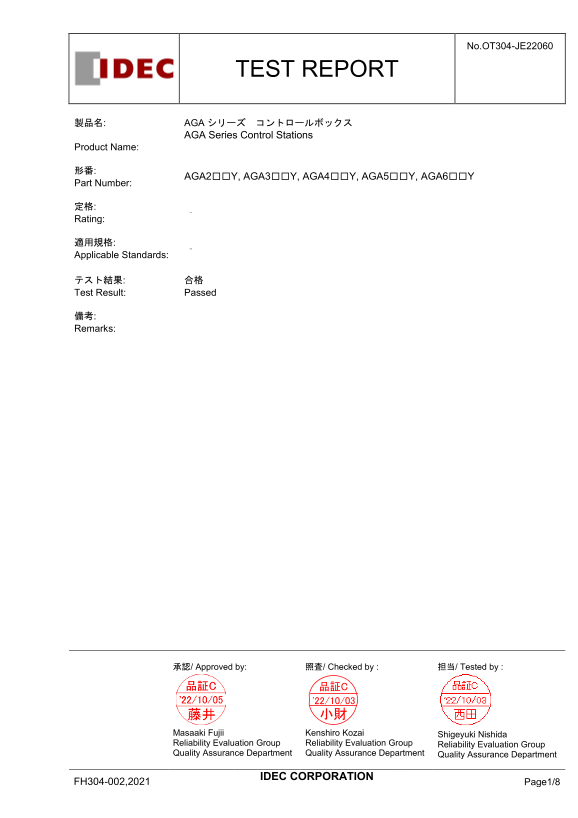

Page 1 Text Content
No.OT304-JE22060
TEST REPORT
製品名: AGA シリーズ コントロールボックス
AGA Series Control Stations
Product Name:
AGA2□□Y, AGA3□□Y, AGA4□□Y, AGA5□□Y, AGA6□□Y
Part Number:
定格: Rating:
適用規格: Applicable Standards:
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Shigeyuki Nishida
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/8
Page Summary Contents For IDEC AGA (Test Report) Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 8 |
| File Size | 408.26 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What temperature extremes can these control stations withstand?
They passed tests at -25°C (Operating Low Temperature) and +50°C (Operating High Temperature).
Are these units rated for dust and water exposure?
Yes, they passed protection structure tests up to IP6X and IPX5, meaning they resist powder and water intrusion.
What size structures are available in the AGA series line?
They come in single column types (1-5 holes) and multiple column types that accommodate 4, 5, or 6 Style Hubs.
How is the deep enclosure depth tested for protection?
For leak prevention, they can withstand a maximum internal pressure (negative pressure) of 2kPa over an 8-hour period.
