IDEC PS6R (Test Report) Technical Document
Summary
Reliable PS6R Switching Power Supplies designed for rigorous industrial applications. This professional report provides comprehensive test results and compliance verification against key global standards (including UL508 and IEC/EN series). The documentation confirms excellent performance across diverse operating conditions—such as extreme temperature ranges, power fluctuations, voltage variations, vibration, and shock—ensuring optimal reliability and efficiency for engineers designing robust electronic control systems.

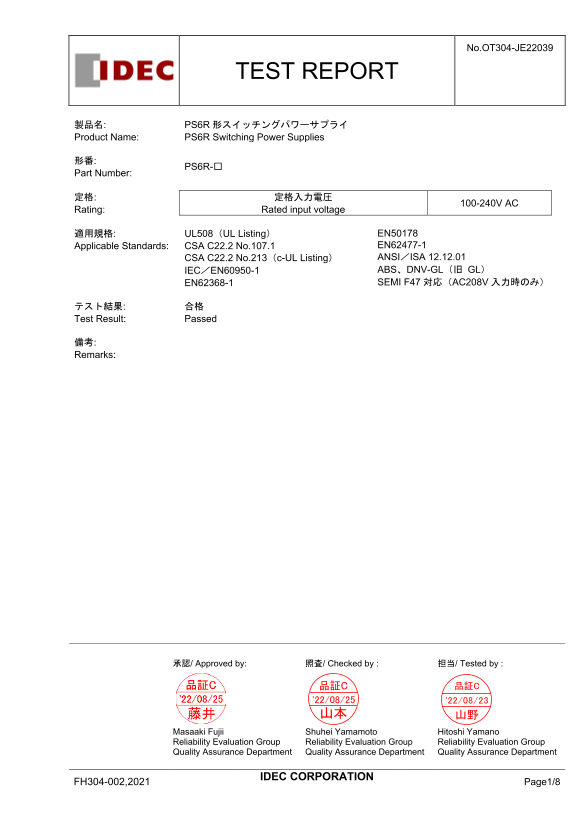

Page 1 Text Content
No.OT304-JE22039
TEST REPORT
製品名: PS6R 形スイッチングパワーサプライ Product Name: PS6R Switching Power Supplies
PS6R-□
Part Number:
100-240V AC
Rating: Rated input voltage
適用規格: UL508（UL Listing） EN50178 Applicable Standards: CSA C22.2 No.107.1 EN62477-1 CSA C22.2 No.213（c-UL Listing） ANSI／ISA 12.12.01 IEC／EN60950-1 ABS、DNV-GL（旧 GL） EN62368-1 SEMI F47 対応（AC208V 入力時のみ）
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Hitoshi Yamano
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/8
Page Summary Contents For IDEC PS6R (Test Report) Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 8 |
| File Size | 332.85 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What input voltages are supported by the PS6R series?
It supports 100-240V AC rated input voltage. Specific models include 120W, 240W, and 480W options for different volt levels.
How is leakage current handled during testing?
The test confirms the leakage current remains below the established criteria: a maximum of 0.5mA at AC120V or 1mA at AC230V.
What are the efficiency and power factor ratings for different models?
Efficiency is high (e.g., PS6R-J24 hits 93% type at input 230V AC), and Power Factor values range between 0.97 to 0.99 typical.
Are the supplies durable under extreme conditions?
Yes, they passed extensive tests for temperature (from -10°C up to +75°C) and humidity, proving robustness in varied environments.
