IDEC SY (Test Report) Technical Document
Summary
These premium electrical sockets are designed for robust connectivity in industrial applications. This comprehensive test report validates the product's high reliability and compliance with stringent international safety standards (including UL508). The document details successful performance testing across extreme environmental conditions, including severe temperature variations (-55°C to +70°C), dielectric strength (2000V AC), humidity resistance, and insulation integrity. This manual is crucial for electrical engineers and manufacturers who require certified, dependable components for demanding control systems and automation equipment.
Page 1 Text Content

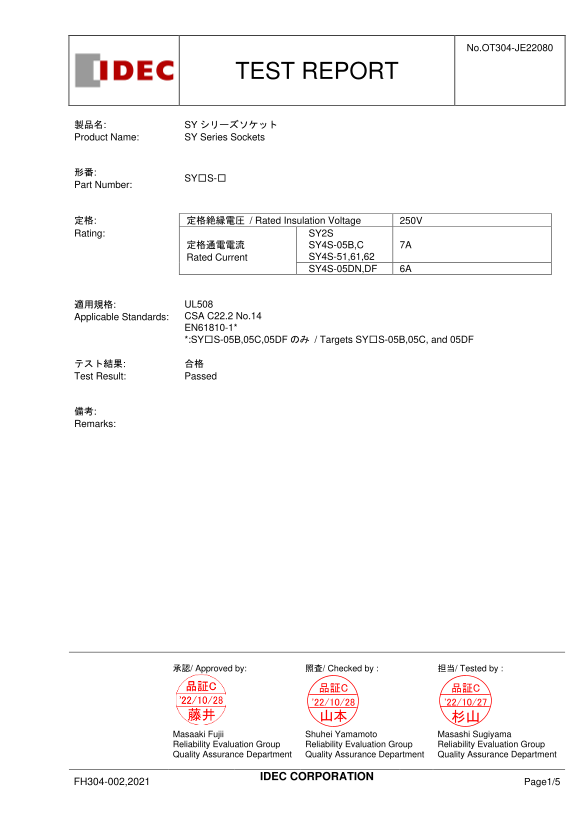

No.OT304-JE22080
TEST REPORT
製品名: SY シリーズソケット Product Name: SY Series Sockets
SY□S-□
Part Number:
定格: 定格絶縁電圧 / Rated Insulation Voltage 250V Rating: SY2S
定格通電電流 SY4S-05B,C 7A Rated Current SY4S-51,61,62
SY4S-05DN,DF 6A
適用規格: UL508
Applicable Standards: CSA C22.2 No.14 EN61810-1*
*:SY□S-05B,05C,05DF のみ / Targets SY□S-05B,05C, and 05DF
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Masashi Sugiyama
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/5
