IDEC KGNW (Test Report) Technical Document
Summary
Designed for demanding industrial environments, the KGNW Series Control Stations are robust control boxes engineered for reliable operation. This documentation provides comprehensive proof of quality, detailing rigorous testing results that guarantee performance under extreme conditions. Buyers benefit from certified compliance covering low/high temperature resilience, resistance to high humidity, and superior ingress protection (IP4X). Ideal for engineers and industrial specifiers requiring durable, dependable components for control panel building.

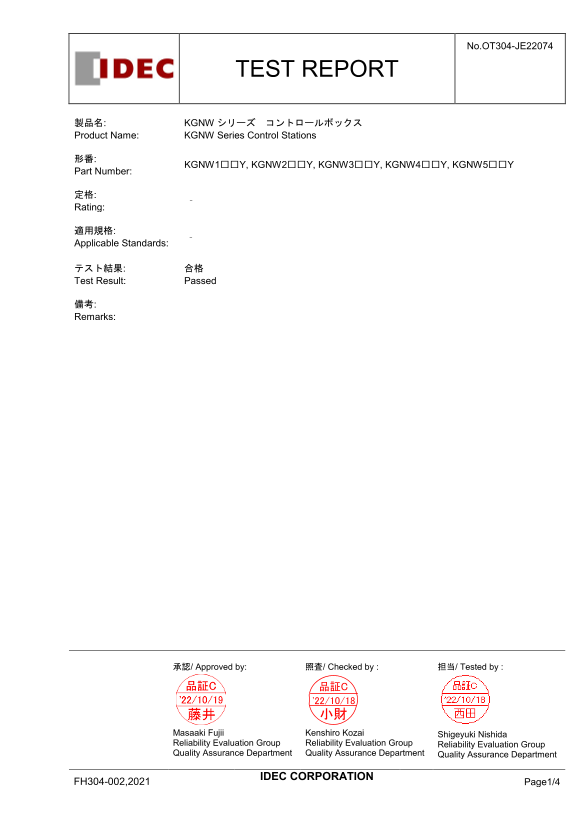

Page 1 Text Content
No.OT304-JE22074
TEST REPORT
製品名: KGNW シリーズ コントロールボックス Product Name: KGNW Series Control Stations
KGNW1□□Y, KGNW2□□Y, KGNW3□□Y, KGNW4□□Y, KGNW5□□Y
Part Number:
定格: Rating:
適用規格: Applicable Standards:
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Shigeyuki Nishida
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/4
Page Summary Contents For IDEC KGNW (Test Report) Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 4 |
| File Size | 182.34 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operating temperature limits for this device?
The device passed testing at both a low temperature of -25°C and a high temperature of +50°C.
Is the KGNW series control station resistant to water or dust?
It achieved IP4X (dust protection) and IPX0 (water intrusion) ratings. The manual notes that there is no protection for water intrusion, however.
What physical configurations are available for the KGNW series？
The series includes models supporting 1, 2, 3, 4, or 5 unit installations/styles.
How was the device tested for temperature stability over time?
Both low and high temperature tests were conducted over a duration of 96 hours.
