IDEC AGaW (Test Report) Technical Document
Summary
The AGAW Series Control Stations offers robust electrical control solutions engineered for industrial applications. This technical report validates the product's reliability by documenting successful compliance with stringent standards, ensuring dependable performance in harsh environments. Testing confirms resistance to a wide range of conditions, including extreme temperatures (-25°C to +50°C), high humidity, and ingress from both dust (IP6X) and pressurized water jets (IPX5). Ideal for demanding automation and manufacturing systems requiring certified durability and reliable operation under adverse industrial conditions.

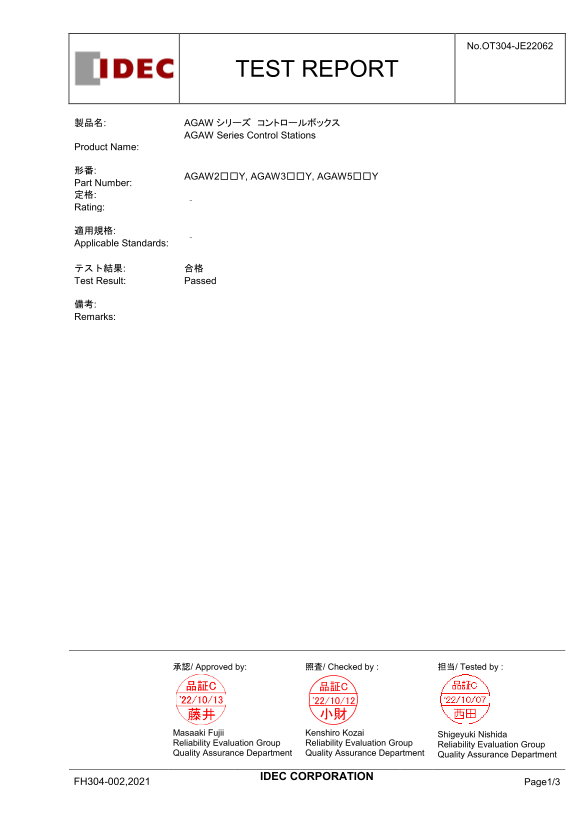

Page 1 Text Content
No.OT304-JE22062
TEST REPORT
製品名: AGAW シリーズ コントロールボックス
AGAW Series Control Stations
Product Name:
AGAW2□□Y, AGAW3□□Y, AGAW5□□Y
Part Number: 定格: Rating:
適用規格: Applicable Standards:
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Shigeyuki Nishida
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/3
Page Summary Contents For IDEC AGaW (Test Report) Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 3 |
| File Size | 283.68 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the tested storage temperature extremes for this unit?
It passed testing at both -25°C and +50°C.
How is the IP protection rating confirmed?
The manual shows successful tests for both IP6X (dustproofing) and IPX5 (water resistance).
What are the available AGAW series control box units?
Available part numbers include AGAW2□□Y, AGAW3□□Y, and AGAW5□□Y, among others.
Is the unit resistant to high humidity and condensation?
Yes, it passed a storage humidity test at +50°C and 85%RH (no condensation).
