IDEC H6 (Test Report) Technical Document

Summary

Discover the ultimate reliability for industrial control systems with our ø16 H6 Series Miniature Switches and Pilot Lights. This technical manual provides comprehensive specifications for illuminated pushbuttons, selector switches, and indicator lights across various models and contact configurations (Gold/Silver). Industrial automation engineers and controls technicians rely on this resource for detailed performance data, certifying mechanical endurance up to 1 million cycles and stringent IP protection ratings vital for robust, reliable machine operation.

📄 Preview ‹ PAGE OF 12 ›

‹

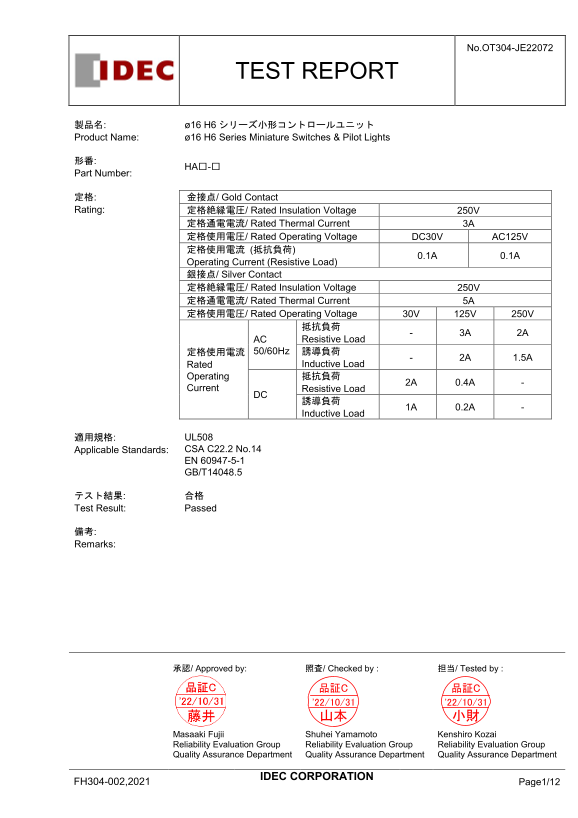

IDEC H6 (Test Report) Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22072

TEST REPORT

製品名: ø16 H6シリーズ小形コントロールユニット Product Name: ø16 H6 Series Miniature Switches & Pilot Lights

HA□-□

Part Number:

定格: 金接点/ Gold Contact Rating: 定格絶縁電圧/ Rated Insulation Voltage 250V

定格通電電流/ Rated Thermal Current 3A 定格使用電圧/ Rated Operating Voltage DC30V AC125V 定格使用電流 (抵抗負荷)

Operating Current (Resistive Load) 銀接点/ Silver Contact 定格絶縁電圧/ Rated Insulation Voltage 250V 定格通電電流/ Rated Thermal Current 5A 定格使用電圧/ Rated Operating Voltage 30V 125V 250V

AC Resistive Load

定格使用電流 50/60Hz 誘導負荷

Rated Inductive Load

Operating 抵抗負荷

Current Resistive Load

Inductive Load

適用規格: UL508

Applicable Standards: CSA C22.2 No.14 EN 60947-5-1 GB/T14048.5

テスト結果: 合格 Test Result: Passed

備考: Remarks:

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Shuhei Yamamoto Kenshiro Kozai

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/12

Page Summary Contents For IDEC H6 (Test Report) Technical Document

Page 1 No.OT304-JE22072 TEST REPORT 製品名: ø16 H6シリーズ小形コントロールユニット Product Name: ø16 H6 Series Miniature Switches & Pilot Lights HA□-□ Part Number: 定格: 金接点/ Gold Contact Rating: 定格絶縁電圧/ Rated Insulation Vol...

Page 2 TEST REPORT No.OT304-JE22072 1. 対象形番 Part Number 1.1.照光押ボタンスイッチ Illuminated Pushbuttons HA①L-②③C④⑤⑥⑦ Part Number 項目記号機能 Item Code Function 外観 1 丸形 / Round Style 2 正角形 / Square 3 角丸形 / Round w/Square...

Page 3 TEST REPORT No.OT304-JE22072 1.2.表示灯 Pilot Lights HA①P-1②③④⑤ Part Number 項目記号機能 Item Code Function 外観 1 丸形 / Round Shape 2 正角形 / Square 3 角丸形 / Round w/Square Bezel 4 正角形 4方向バリア付 / Square w/Four-sid...

Page 4 TEST REPORT No.OT304-JE22072 1.3.押ボタンスイッチ Pushbuttons HA①B-②③C④⑤⑥ Part Number 項目記号機能 Item Code Function 外観 1 丸形/ Round Shape 2 正角形/ Square 3 角丸形/ Round w/Square Bezel 4 正角形 4方向バリア付 / Square w/Four-s...

Page 5 TEST REPORT No.OT304-JE22072 1.4.セレクタスイッチ Selector Switches HA①S-②③C④⑤ Part Number 項目記号機能 Item Code Function 外観 1 丸形/ Round Shape 3 角丸形 / Round with Square Bezel ノッチ仕様 2 90°-2ノッチ各位置停止 / 90°-2 positi...

Page 6 TEST REPORT No.OT304-JE22072 1.5.鍵付セレクタスイッチ Key Selector Switches HA①K-②C③④⑤-⑥ Part Number 項目記号機能 Item Code Function 外観 1 丸形/ Round Shape 3 角丸形/ Round w/Square Bezel ノッチ仕様 2 90°-2ノッチ各位置停止 / 90°-2 po...

Page 7 TEST REPORT No.OT304-JE22072 1.6.照光セレクタスイッチ Illuminated Selector Switches HA①F-②③C④⑤⑥ Part Number 項目記号機能 Item Code Function 外観 1 丸形 / Round Shape 3 角丸形 / Round w/Square Bezel ノッチ仕様 2 90°-2ノッチ各位置停止 /...

Page 8 TEST REPORT No.OT304-JE22072 2. 試験結果一覧 Test Results List 試験項目結果適用規格 Test Items Result Applicable Standards 接触抵抗合格 1. Contact Resistance Passed 絶縁抵抗合格 2. Insulation Resistance Passed 耐電圧合格 3. IEC6...

Page 9 TEST REPORT No.OT304-JE22072 3. 試験結果 Test Result 試験項目試験方法 / 結果 Test Items Test Method and Result 方法測定方法: 電圧降下法 Method Measure Method: Voltage Drop 接触抵抗判定基準 50mΩ以下(初期値) 1. Contact Resistance Criteri...

Page 10 TEST REPORT No.OT304-JE22072 試験項目試験方法 / 結果 Test Items Test Method and Result Method Temperature: -40°C (no freezing) 保管耐寒 Duration: 96h Storage Low Temperature 判定基準試験後、試験品各部に破損および動作に異常のないこと。 Criteri...

Page 11 TEST REPORT No.OT304-JE22072 試験項目試験方法/結果 Test Items Test Method and Result Method Input Voltage: Rated Voltage (Only Illuminated type) Acceleration: Operating extremes 100m/s2 Damage Limits 1,000 m/s...

Page 12 TEST REPORT No.OT304-JE22072 試験項目試験方法 / 結果 Test Items Test Method and Result Method Operation Frequency: Momentary: 1,800 operations/h Maintained: 900 operations/h 機械的耐久性 Other switches: 1,200 operat...

Manual Details

Brand	IDEC
Pages	12
File Size	483.11 KB
Published	June 03, 2026

48 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the rated insulation voltage for gold contacts?

The Rated Insulation Voltage for gold contacts is 250V.

Which terminal type should be used for PCB connections?

Use the PC Board Terminal (V) option for direct connection to a printed circuit board.

How long do Momentary pushbuttons last?

They have a mechanical life of 1,000,000 operations and an electrical life of 100,000 operations.

What is the voltage range supported by gold contacts?

The Rated Operating Voltage for gold contacts varies but includes DC30V, AC125V, etc., depending on the specific load type.
