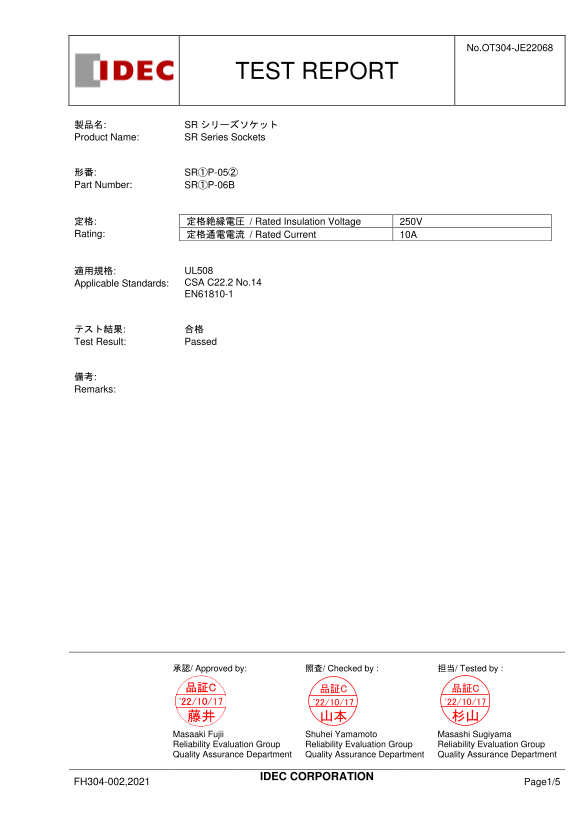

No.OT304-JE22068
TEST REPORT
製品名: SR シリーズソケット Product Name: SR Series Sockets
形番: SR①P-05②
SR①P-06B Part Number:
定格: 定格絶縁電圧 / Rated Insulation Voltage 250V Rating: 定格通電電流 / Rated Current 10A
適用規格: UL508
Applicable Standards: CSA C22.2 No.14 EN61810-1
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Masashi Sugiyama
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/5
