IDEC SLC40 (TestReport) Technical Document

Summary

The SLC40 Series Combination Display Lights are versatile industrial signaling units designed for durable and reliable status indication across complex control systems. This technical documentation provides comprehensive compliance certification and test results, verifying operation across a wide range of voltages (AC/DC), extreme temperatures (-25°C to +60°C), and humidity levels. It is crucial reading for engineers, procurement specialists, and system builders requiring certified display lights that meet rigorous international standards (UL508, EN60947-1) for industrial machinery and electrical controls.

📄 Preview ‹ PAGE OF 6 ›

‹

IDEC SLC40 (TestReport) Technical Document - Page 1

›

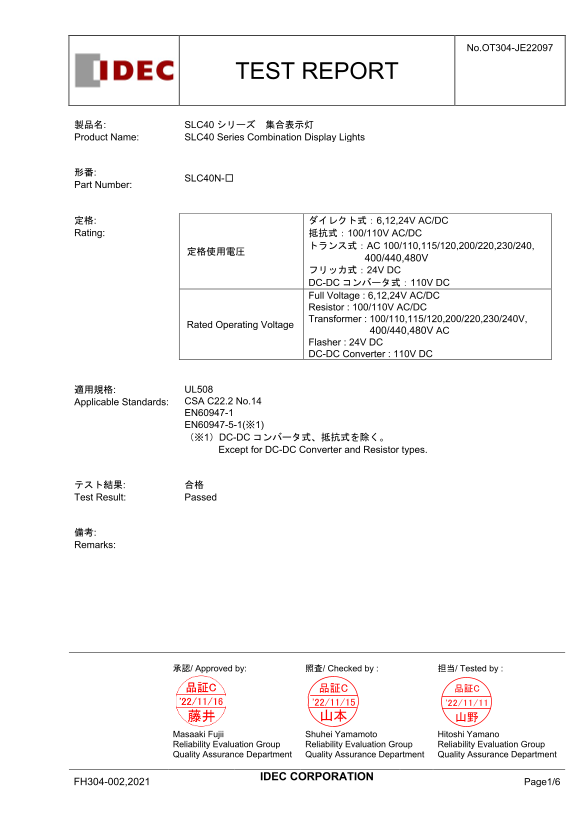

Page 1 Text Content

No.OT304-JE22097

TEST REPORT

製品名: SLC40シリーズ集合表示灯 Product Name: SLC40 Series Combination Display Lights

SLC40N-□

Part Number:

定格: ダイレクト式：6,12,24V AC/DC Rating: 抵抗式：100/110V AC/DC

トランス式：AC 100/110,115/120,200/220,230/240,

フリッカ式：24V DC DC-DCコンバータ式：110V DC Full Voltage : 6,12,24V AC/DC Resistor : 100/110V AC/DC Transformer : 100/110,115/120,200/220,230/240V,

Rated Operating Voltage

400/440,480V AC

Flasher : 24V DC DC-DC Converter : 110V DC

適用規格: UL508

Applicable Standards: CSA C22.2 No.14 EN60947-1 EN60947-5-1(※1) （※1）DC-DCコンバータ式、抵抗式を除く。 Except for DC-DC Converter and Resistor types.

テスト結果: 合格 Test Result: Passed

備考: Remarks:

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Shuhei Yamamoto Hitoshi Yamano

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/6

Page Summary Contents For IDEC SLC40 (TestReport) Technical Document

Page 1 No.OT304-JE22097 TEST REPORT 製品名: SLC40シリーズ集合表示灯 Product Name: SLC40 Series Combination Display Lights SLC40N-□ Part Number: 定格: ダイレクト式：6,12,24V AC/DC Rating: 抵抗式：100/110V AC/DC トランス式：AC 100/110,115/...

Page 2 TEST REPORT No.OT304-JE22097 1. 対象形番 Part Number SLC40N-□ Part Number 種別使用電圧範囲型番 Type Rated Voltage Part No. ダイレクト式単色全面照光(R,G,Y,A) 12V AC/DC SLC40N-□△-DD1◎B-※ Full Voltage One color Full (R,G,Y,A) ...

Page 3 TEST REPORT No.OT304-JE22097 種別使用電圧範囲型番 Type Rated Voltage Part No. 単色全面照光ハーフサイズの Cタイプ 6V AC/DC SLC40N-□△-DP6CB-※ One-color Full × 2 split window(Type C) 12V AC/DC SLC40N-□△-DP1CB-※ (R,G,Y,A) 24V A...

Page 4 TEST REPORT No.OT304-JE22097 2. 試験結果 Test Results 試験項目結果適用規格 Test Items Result Applicable Standards 絶縁抵抗合格 1. Insulation Resistance Passed 耐電圧合格 2. Dielectric Strength Passed 使用耐寒合格 3. Operating ...

Page 5 TEST REPORT No.OT304-JE22097 3. 試験結果 Test Result 試験項目試験方法/結果 Test Items Test Method and Result 方法測定器: 500VDC 絶縁抵抗計 Method Equipment: 500VDC insulation resistance tester 絶縁抵抗 Part: Between live and d...

Page 6 TEST REPORT No.OT304-JE22097 試験項目試験方法/結果 Test Items Test Method and Result Method Temperature: -25°C (no freezing) 保管耐寒 Duration: 96h Storage Low Temperature 判定基準試験後、試験品各部に破損のないこと。 Criteria After te...
