IDEC A1 (TestReport) Technical Document

Summary

Discover the ö10 A1 Series Miniature Switches and Pilot Lights, essential components for industrial control systems. This documentation confirms the product's adherence to stringent international standards, including UL508 and EN 60947-5-1. The provided report details comprehensive testing results verifying electrical durability, contact resistance stability, mechanical life cycles (up to 200,000 operations), and performance in extreme temperature conditions. Ideal for electricians and engineers requiring highly reliable, standard-compliant switching solutions for demanding applications.

📄 Preview ‹ PAGE OF 7 ›

‹

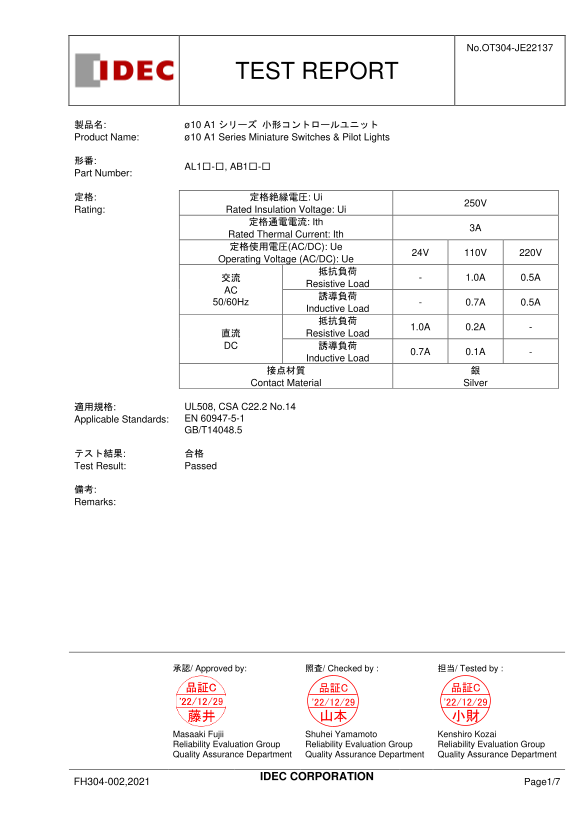

IDEC A1 (TestReport) Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22137

TEST REPORT

製品名: ø10 A1 シリーズ小形コントロールユニット Product Name: ø10 A1 Series Miniature Switches & Pilot Lights

AL1□-□, AB1□-□

Part Number:

定格: 定格絶縁電圧: Ui

Rating: Rated Insulation Voltage: Ui

定格通電電流: Ith

Rated Thermal Current: Ith 定格使用電圧(AC/DC): Ue

Operating Voltage (AC/DC): Ue

Resistive Load

50/60Hz - 0.7A 0.5A

Inductive Load 抵抗負荷

直流 Resistive Load

DC 誘導負荷

Inductive Load

Contact Material Silver

適用規格: UL508, CSA C22.2 No.14

Applicable Standards: EN 60947-5-1 GB/T14048.5

テスト結果: 合格 Test Result: Passed

備考: Remarks:

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Shuhei Yamamoto Kenshiro Kozai

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/7

Page Summary Contents For IDEC A1 (TestReport) Technical Document

Page 1 No.OT304-JE22137 TEST REPORT 製品名: ø10 A1 シリーズ小形コントロールユニット Product Name: ø10 A1 Series Miniature Switches & Pilot Lights AL1□-□, AB1□-□ Part Number: 定格: 定格絶縁電圧: Ui Rating: Rated Insulation Voltage...

Page 2 TEST REPORT No.OT304-JE22137 1. 対象形番 Part Number 1.1.照光押ボタンスイッチ・表示灯 Illuminated Pushbuttons & Pilot Lights AL1①-②③1④ Part Number 項目記号機能 Item Code Function M 丸形 / Round Q 正角形 / Square Shape H 長角形...

Page 3 TEST REPORT No.OT304-JE22137 1. 試験結果/ Test Results 試験項目結果適用規格 Test Items Result Applicable Standards 接触抵抗合格 1. Contact Resistance Passed 絶縁抵抗合格 2. Insulation Resistance Passed 耐電圧合格 3. Dielectric...

Page 4 TEST REPORT No.OT304-JE22137 2. 試験結果/ Test results 試験項目試験方法/ 結果 Test Items Test Method and Result 方法測定方法:電圧降下法 Method Measure Method: Voltage Drop 接触抵抗判定基準 50mΩ以下(初期値) 1. Contact Resistance Criteri...

Page 5 TEST REPORT No.OT304-JE22137 試験項目試験方法/ 結果 Test Items Test Method and Result Method Temperature: -30°C (no freezing) 保管耐寒 Duration: 96h Storage Low Temperature 判定基準試験後、試験品各部に破損および動作に異常のないこと。 Criteria...

Page 6 TEST REPORT No.OT304-JE22137 試験項目試験方法/ 結果 Test Items Test Method and Result 方法印加電圧: 定格電圧(LED 照光) Method Input Voltage: Rated Voltage (LED Illuminated) Operating extremes: 200m/s2 Damage limits: 500 ...

Page 7 TEST REPORT No.OT304-JE22137 試験項目試験方法/ 結果 Test Items Test Method and Result Method Operations Voltage-Current: Rating Switching Frequency: 1,200 operations/hour (Momentary) 電気的耐久性 600 operations/hour...

Manual Details

Brand	IDEC
Pages	7
File Size	116.81 KB
Published	June 05, 2026

26 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the minimum mechanical life requirements for these switches?

Momentary switches require 200,000 operations, and maintained switches require 100,000 operations.

Is this unit protected against water or dust ingress?

The test report confirmed a Degree of Protection (IP4X) but noted no protection for water intrusion (IPX0).

What is the contact material used in these switches?

The contact material specified is Silver.

How do I determine if it's a momentary or maintained function?

Momentary means transient action, while Maintained refers to continuous operation capability.
