IDEC LF1A (TestReport) Technical Document

Summary

Explore the LF1A Series LED Illumination Units, a robust 24V DC lighting solution available in various lengths and colors. This documentation confirms comprehensive performance and safety testing against leading global standards. It verifies electrical compliance (UL, EN), operational durability, resistance to extreme temperatures/humidity, and structural integrity. Ideal for engineers, architects, and facility managers requiring certified, high-reliability LED fixtures built for demanding industrial environments.

📄 Preview ‹ PAGE OF 6 ›

‹

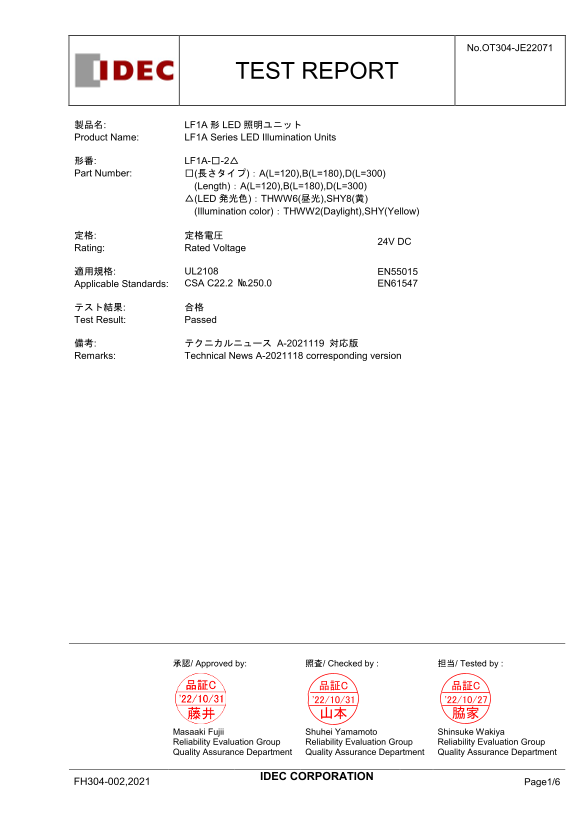

IDEC LF1A (TestReport) Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22071

TEST REPORT

製品名: LF1A LED 照明ユニット Product Name: LF1A Series LED Illumination Units

形番: LF1A-□-2△ Part Number: □(長さタイプ)：A(L=120),B(L=180),D(L=300)

(Length)：A(L=120),B(L=180),D(L=300) △(LED 発光色)：THWW6(昼光),SHY8(黄) (Illumination color)：THWW2(Daylight),SHY(Yellow)

24V DC

Rating: Rated Voltage

適用規格: UL2108 EN55015

CSA C22.2 №250.0 EN61547 Applicable Standards:

テスト結果: 合格 Test Result: Passed

備考: テクニカルニュース A-2021119 対応版 Remarks: Technical News A-2021118 corresponding version

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Shuhei Yamamoto Shinsuke Wakiya

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/6

Page Summary Contents For IDEC LF1A (TestReport) Technical Document

Page 1 No.OT304-JE22071 TEST REPORT 製品名: LF1A LED 照明ユニット Product Name: LF1A Series LED Illumination Units 形番: LF1A-□-2△ Part Number: □(長さタイプ)：A(L=120),B(L=180),D(L=300) (Length)：A(L=120),B(L=180),D(L=300) △(...

Page 2 TEST REPORT No.OT304-JE22071 1.対象型番 Part Number 形番発光色使用電圧 Part Number Illumination color Rated Voltage LF1A-A1-2THWW6 LF1A-B1-2THWW6 Daylight LF1A-D1-2THWW6 24V DC LF1A-A1-2SHY8 LF1A-B1-2SHY8 Yellow...

Page 3 TEST REPORT No.OT304-JE22071 3.試験結果 Test Result 試験項目試験方法/結果 Test Items Test Method and Result 方法入力電圧：DC 24V Method Input Voltage:24V DC 入力電流判定基準表参照 1. Current Consumption Criteria See Table 1 結果 ...

Page 4 TEST REPORT No.OT304-JE22071 試験項目試験方法/結果 Test Items Test Method and Result 時間：96h 入力電圧：DC 21.6V Method Temperature: -20°C (no freezing) 使用耐寒 Duration: 96h 8. Operating Low Temperature Input Voltage:2...

Page 5 TEST REPORT No.OT304-JE22071 試験項目試験方法/結果 Test Items Test Method and Result 方法周波数: 5-55Hz 片振幅: 0.5mm 加速度：Max.20m/s2 方向: 3 軸方向時間: 各方向 2h 入力電圧：DC 24V Method Frequency: 5 to 55Hz 耐振動 Amplitude(0-peak):...

Page 6 TEST REPORT No.OT304-JE22071 1 入力電流（単位：m A） Table.1 Current consumption（Unit:m A） LF1A-□1-2THWW6 LF1A-□1-2SHY8 Part Number A 50 m A typ. 90 m A typ. B 100 m A typ. 180 m A typ. Length D 200 m A typ. 3...
