IDEC LH (TestReport) Technical Document
Summary
The LH Series Surface Mount Indicators are high-reliability signal lights designed for critical industrial applications. This technical documentation details a comprehensive certification report confirming compliance with stringent international safety and performance standards, including IEC 60947-5-1, UL508, and CSA C22.2. The report validates operational integrity across extreme conditions—ranging from -30°C to +80°C, as well as simulated electrical overvoltage, continuous vibration, shock impact, and IPX7 ingress protection. This manual is essential for engineers and industrial designers who require certified, durable lighting solutions for control panels and machinery.

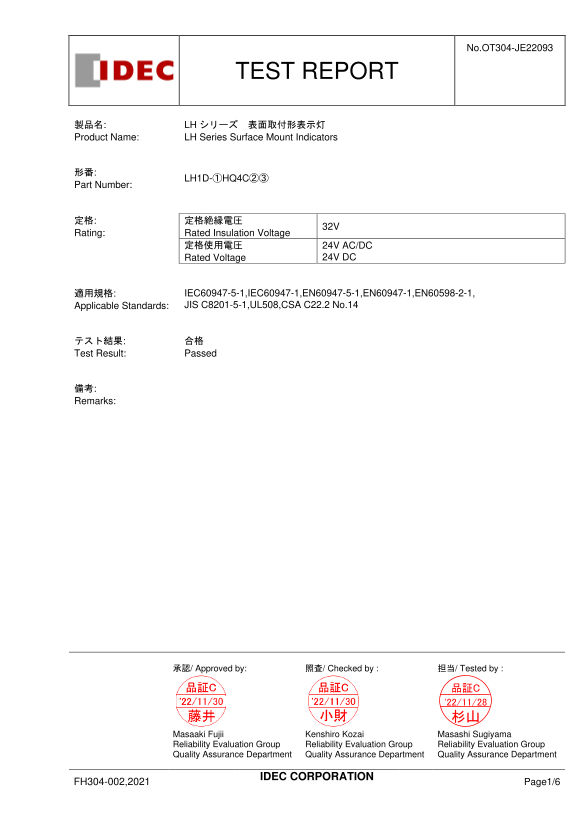

Page 1 Text Content
No.OT304-JE22093
TEST REPORT
製品名: LH シリーズ 表面取付形表示灯 Product Name: LH Series Surface Mount Indicators
LH1D-①HQ4C②③
Part Number:
Rating: Rated Insulation Voltage
定格使用電圧 24V AC/DC
Rated Voltage 24V DC
適用規格: IEC60947-5-1,IEC60947-1,EN60947-5-1,EN60947-1,EN60598-2-1,
JIS C8201-5-1,UL508,CSA C22.2 No.14 Applicable Standards:
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Masashi Sugiyama
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/6
