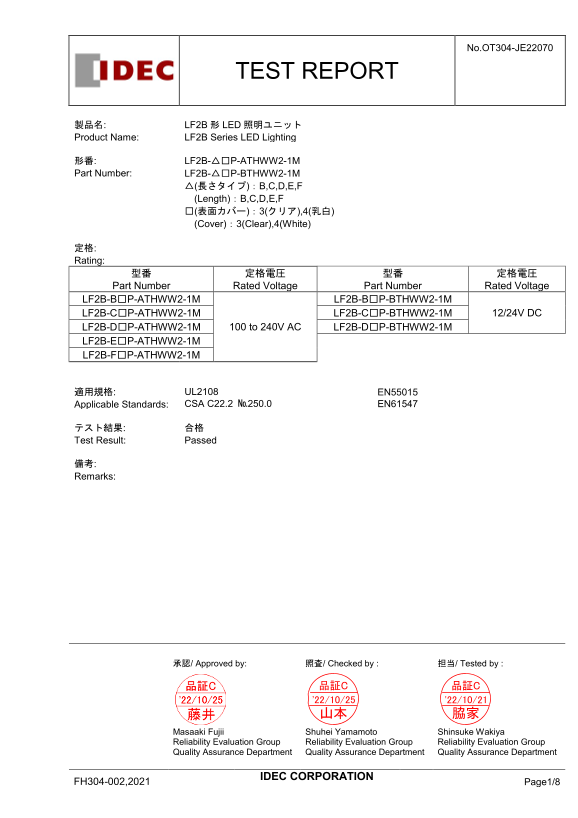

No.OT304-JE22070
TEST REPORT
製品名: LF2B LED 照明ユニット Product Name: LF2B Series LED Lighting
形番: LF2B-△□P-ATHWW2-1M Part Number: LF2B-△□P-BTHWW2-1M
△(長さタイプ)：B,C,D,E,F (Length)：B,C,D,E,F □(表面カバー)：3(クリア),4(乳白) (Cover)：3(Clear),4(White)
定格: Rating:
型番 定格電圧 型番 定格電圧 Part Number Rated Voltage Part Number Rated Voltage
LF2B-B□P-ATHWW2-1M LF2B-B□P-BTHWW2-1M
12/24V DC LF2B-C□P-ATHWW2-1M LF2B-C□P-BTHWW2-1M
LF2B-D□P-ATHWW2-1M LF2B-D□P-BTHWW2-1M 100 to 240V AC
LF2B-E□P-ATHWW2-1M LF2B-F□P-ATHWW2-1M
適用規格: UL2108 EN55015
CSA C22.2 №250.0 EN61547 Applicable Standards:
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Shinsuke Wakiya
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/8
