IDEC AP6S (TestReport) Technical Document

Summary

These miniature pilot lights (AP6S Series) provide vital visual signaling for industrial control panels, available in multiple shapes, voltages (AC/DC), and colors. This technical report confirms the product's high quality and reliability, featuring successful compliance results across rigorous testing standards. The documentation verifies structural integrity against extreme conditions, including wide temperature ranges, voltage surge, vibration, shock, and ingress protection (IP ratings). Ideal for engineers and industrial purchasers who require dependable, safety-tested signaling components for critical machinery applications.

📄 Preview ‹ PAGE OF 6 ›

‹

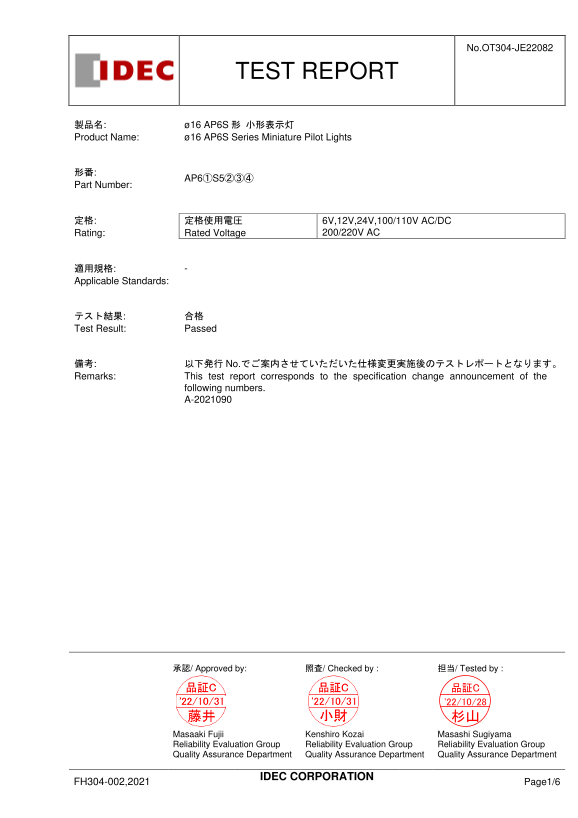

IDEC AP6S (TestReport) Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22082

TEST REPORT

製品名: ø16 AP6S 形小形表示灯 Product Name: ø16 AP6S Series Miniature Pilot Lights

AP6①S5②③④

Part Number:

定格: 定格使用電圧 6V,12V,24V,100/110V AC/DC

Rated Voltage 200/220V AC Rating:

適用規格: - Applicable Standards:

テスト結果: 合格 Test Result: Passed

備考: 以下発行 No.でご案内させていただいた仕様変更実施後のテストレポートとなります。 Remarks: This test report corresponds to the specification change announcement of the

following numbers.

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Kenshiro Kozai Masashi Sugiyama

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/6

Page Summary Contents For IDEC AP6S (TestReport) Technical Document

Page 1 No.OT304-JE22082 TEST REPORT 製品名: ø16 AP6S 形小形表示灯 Product Name: ø16 AP6S Series Miniature Pilot Lights AP6①S5②③④ Part Number: 定格: 定格使用電圧 6V,12V,24V,100/110V AC/DC Rated Voltage 200/220V AC Rating: 適用...

Page 2 TEST REPORT No.OT304-JE22082 1. 対象形番 Part Number 1.1.パイロットライト / Pilot Lights AP6①S5②③④ Part Number 項目記号機能 Item Code Function D ドーム形 / Dome M 丸形 / Round Q 正角形 / Square Shape H 長角形 / Rectangular G 長角形...

Page 3 TEST REPORT No.OT304-JE22082 2. 試験結果一覧 / Test Results List 試験項目結果適用規格 Test Items Result Applicable Standards 絶縁抵抗合格 1. Insulation Resistance Passed 耐電圧合格 2. Dielectric Strength Passed 使用耐寒合格 3. O...

Page 4 TEST REPORT No.OT304-JE22082 3. 試験結果 / Test results 試験項目試験方法/ 結果 Test Items Test Method and Result 方法測定器: DC500V 絶縁抵抗計 Method Equipment: DC500V insulation resistance tester 絶縁抵抗 Parts: Between live ...

Page 5 TEST REPORT No.OT304-JE22082 試験項目試験方法/ 結果 Test Items Test Method and Result Method Temperature: +80°C 保管耐熱 Duration: 96h Storage High Temperature 判定基準試験後、試験品各部に破損および動作に異常のないこと。 Criteria After test, ...

Page 6 TEST REPORT No.OT304-JE22082 試験項目試験方法/ 結果 Test Items Test Method and Result 方法機器内部圧力(負圧): 2k Pa max. Method Depression: 2k Pa max. Duration: 8h 保護構造(IP6X) 10. Mounting: Mounting to our control box. ...
