IDEC HS2P (TestReport) Technical Document
Summary
The HS2P Interlock Plug Unit is a high-reliability, panel-mountable safety component designed for demanding industrial electrical applications. This documentation confirms its exceptional compliance testing results, demonstrating suitability under various extreme conditions, including thermal cycling, vibration, shock impact, and long mechanical endurance cycles. It ensures peak performance while meeting stringent international standards (including UL and CSA specifications). Essential for engineers and manufacturers who require robust, safe, and fully compliant interlock solutions for heavy machinery and critical industrial controls.
Page 1 Text Content

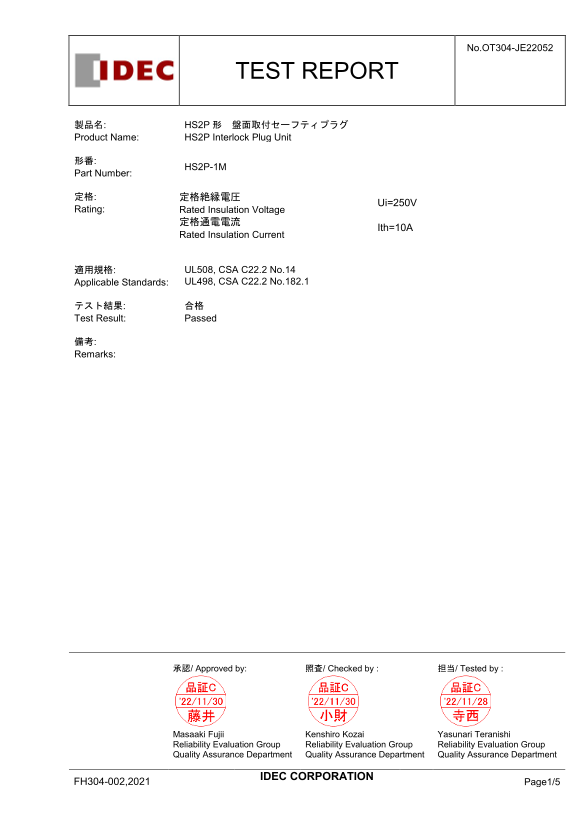

No.OT304-JE22052
TEST REPORT
製品名: HS2P 形 盤面取付セーフティプラグ Product Name: HS2P Interlock Plug Unit
HS2P-1M
Part Number:
Ui=250V
Rating: Rated Insulation Voltage 定格通電電流
Ith=10A
Rated Insulation Current
適用規格: UL508, CSA C22.2 No.14
Applicable Standards: UL498, CSA C22.2 No.182.1
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Kenshiro Kozai Yasunari Teranishi
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/5
