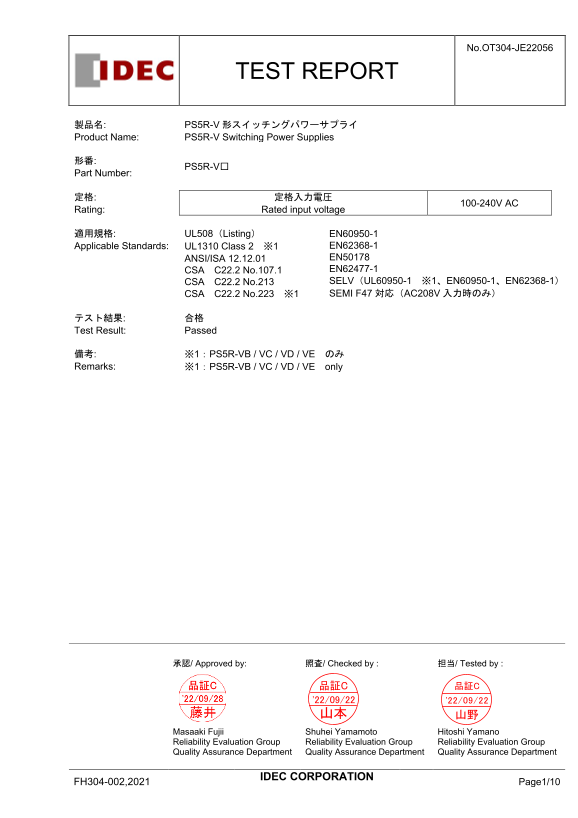

Page 1 Text Content
No.OT304-JE22056
TEST REPORT
製品名: PS5R-V 形スイッチングパワーサプライ Product Name: PS5R-V Switching Power Supplies
PS5R-V□
Part Number:
100-240V AC
Rating: Rated input voltage
適用規格: UL508（Listing） EN60950-1
Applicable Standards: UL1310 Class 2 ※1 EN62368-1 ANSI/ISA 12.12.01 EN50178 CSA C22.2 No.107.1 EN62477-1 CSA C22.2 No.213 SELV（UL60950-1 ※1、EN60950-1、EN62368-1） CSA C22.2 No.223 ※1 SEMI F47 対応（AC208V 入力時のみ）
テスト結果: 合格 Test Result: Passed
備考: ※1：PS5R-VB / VC / VD / VE のみ Remarks: ※1：PS5R-VB / VC / VD / VE only
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Hitoshi Yamano
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/10
